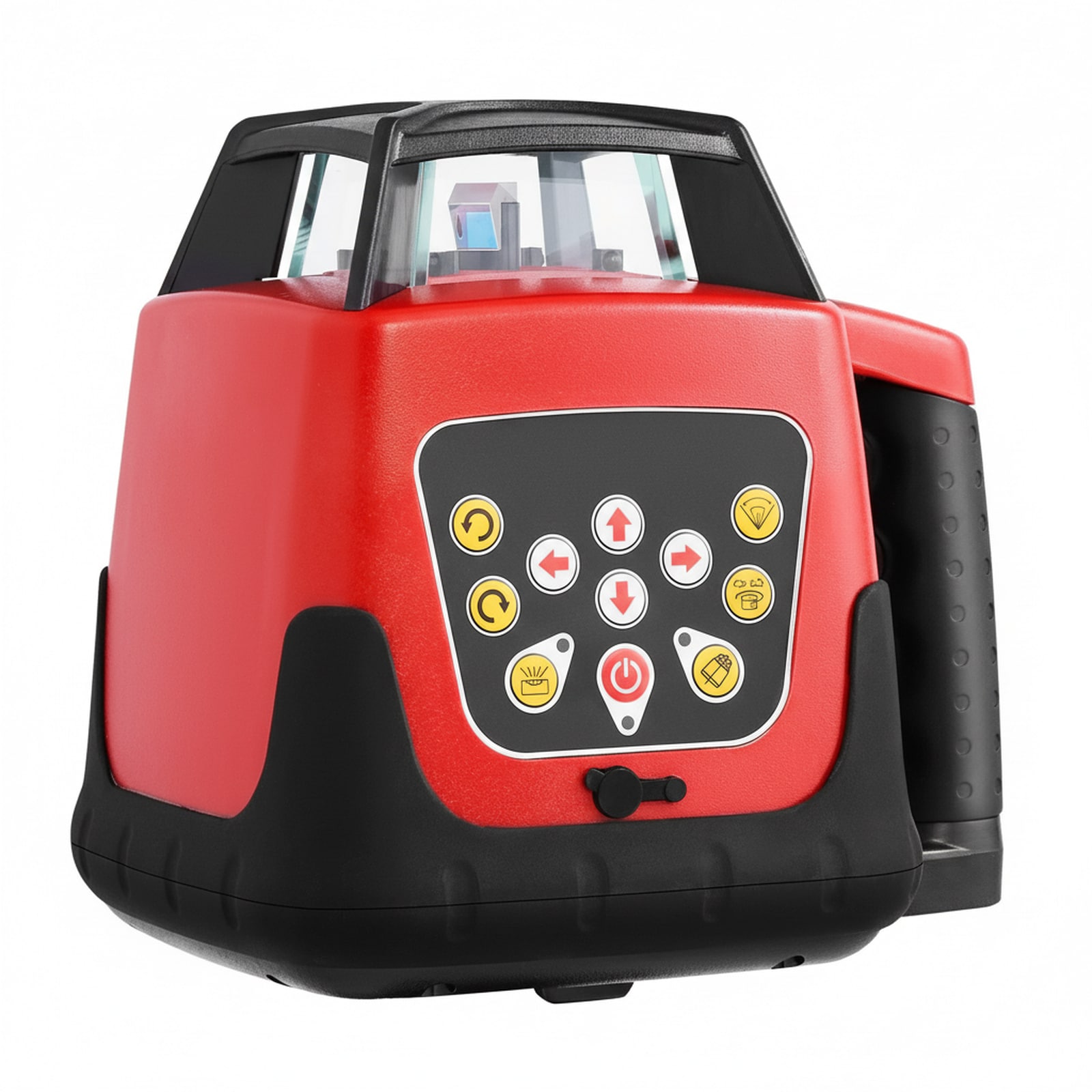

Set the tripod, switch the head on, and a red 360 degree plane does the rest across a site that reaches 1650 ft with the receiver in hand. Rotation steps through 0, 60, 120, 300, and 600 rpm while scan angles narrow from a full sweep down to 10 degrees, which concentrates the beam where a wall line or a ceiling grid needs it. Self-leveling works within plus or minus 5 degrees and hands control back for slope work. Four rechargeable NiMH cells cover 8 to 12 hours, a remote reaches 65 ft, and an IP66 rated ABS housing shrugs off dust and rain. Receiver, grade rod, tripod, glasses, and a hard case travel together.
1650-ft Range With the Receiver: Paired with the receiver in the kit, the rotary laser level covers work out to 1650 ft across foundations, grading runs, and open jobsites.
Five Speeds and Five Scan Angles: Rotation runs at 0, 60, 120, 300, or 600 rpm and the scan angle switches among 0, 10, 45, 90, and 180 degrees for layout, leveling, or alignment work.
Self-Leveling With Manual Override: A plus or minus 5 degree self-leveling range squares the beam on uneven ground, and manual mode takes over when a sloped reference line is needed.
Grading Framing and Site Layout: Contractors, landscapers, and remodelers set footing elevations, drop ceilings, deck posts, and drainage falls, plus laser glasses for daylight work.
IP66 Housing and Rechargeable Cells: An impact-resistant ABS body carries an IP66 ingress rating against dust and water, and four 1.2V NiMH cells run 8 to 12 hours on a charge.
Specification: Working Range: 1650 ft with receiver; Self-Leveling Range: +/-5 degrees; Rotation Speeds: 0/60/120/300/600 rpm; Scan Angles: 0/10/45/90/180 degrees; Laser Color: Red; Protection Rating: IP66; Power: 4 x 1.2V C-type NiMH cells; Remote Range: 65 ft; Mounting Thread: 5/8 in-11; Laser Unit Size: 7.9 x 10.4 x 15.0 in; Weight With Accessories: 20.6 lb / 9.35 kg; Working Temperature: 50-113 F; Included: receiver, grade rod 0-8.36 ft, tripod 24.4-57.9 in, laser glasses, hard case
