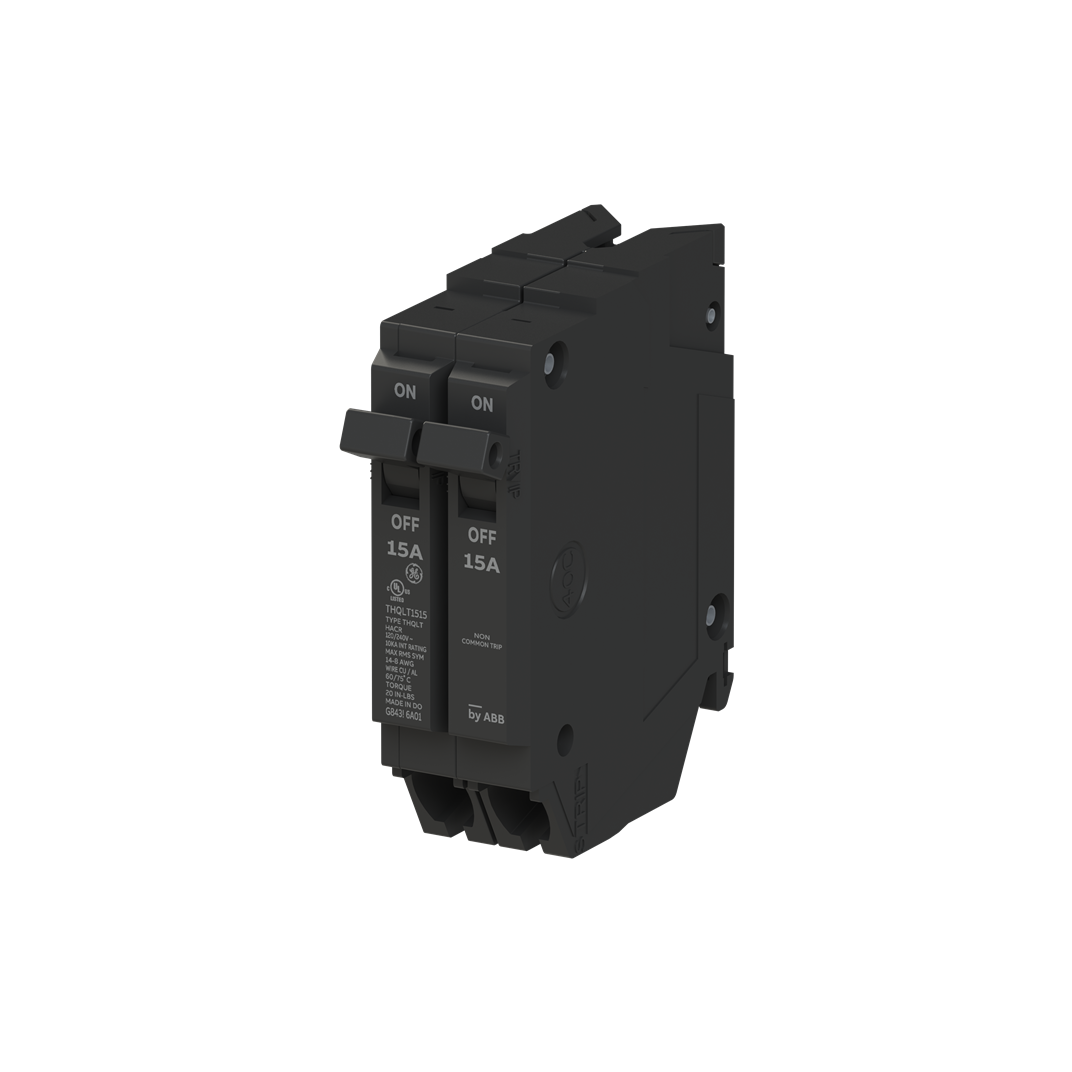

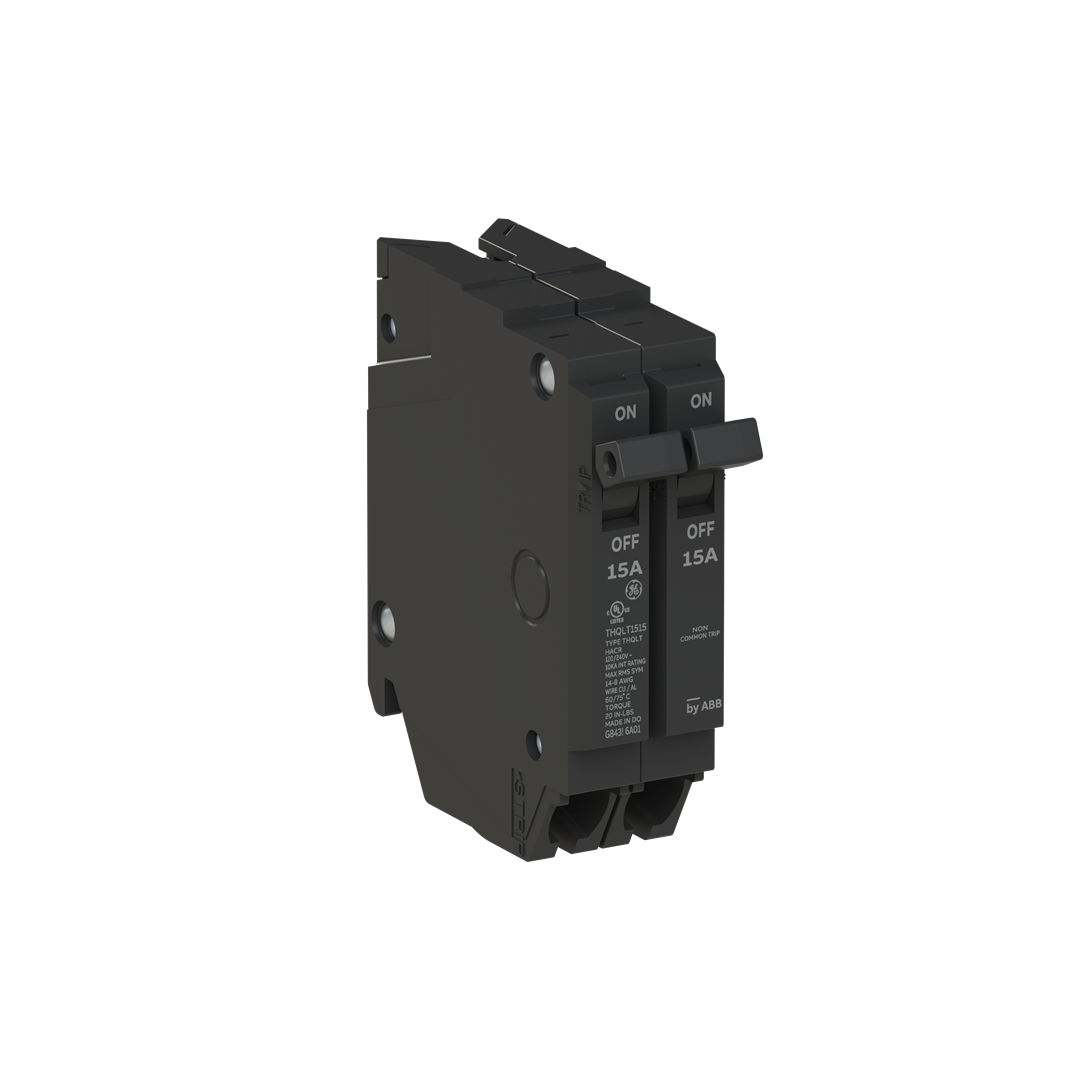

GE THQL Q-Line Tandem breakers offer ability to get various combinations of single circuits within one 1" space. They are compatible with all ABB Reliahome and GE PowerMark Load Centers. The Tandem breakers are for use on Single Phase 120/240 & 120/208 VAC Systems. The breakers are NEMA approved, ANSI Certified, and CSA & UL Listed They offer interuption protection of 10kAIC and have conductor rating of 60°C/75°C . For use with wires ranges AWG # 14-8 in copper and #12-8 in Aluminum. The combination of features such as; Quick Make/Break mechanism, Robertson/Flathead combination screws and Fast wiring box type lugs allow for quick and easier installations saving time.
Compatible with ABB ReliaHome & GE PowerMark load centers

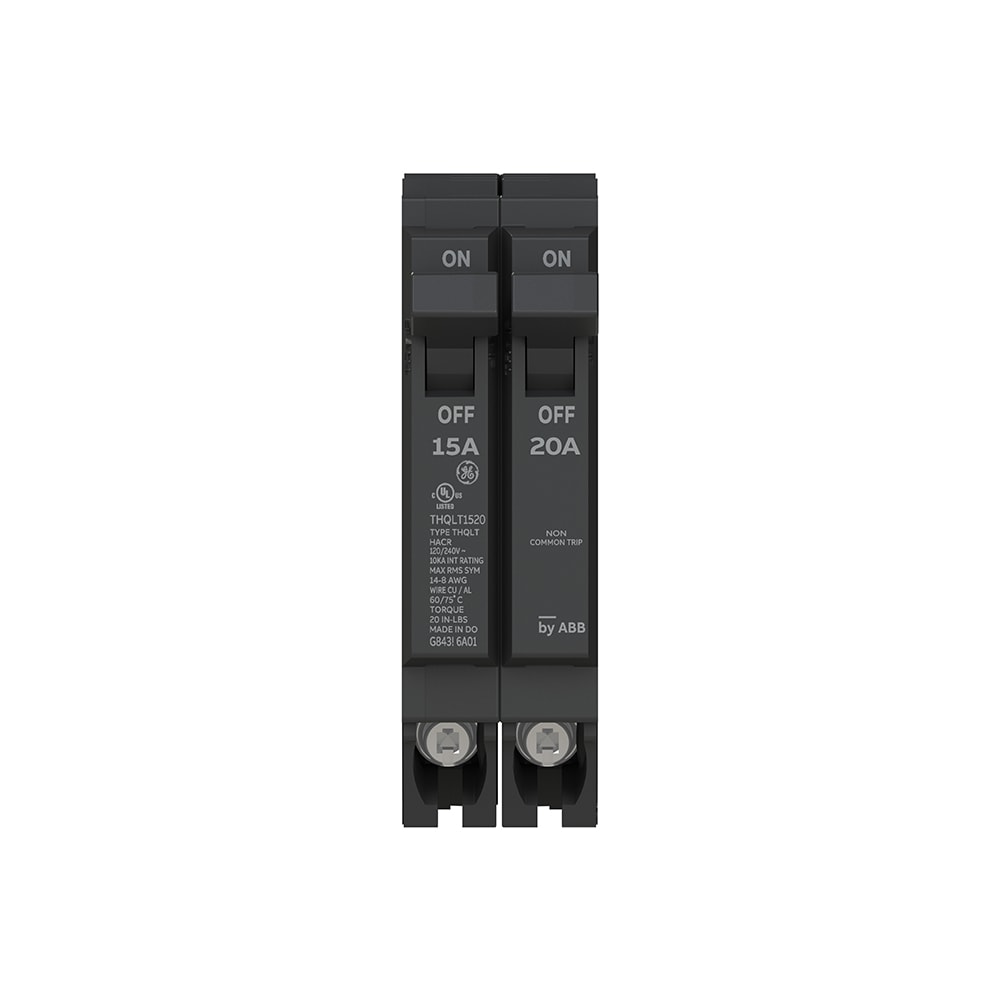

Tandem design allows (1) 15-amp single pole breaker and (1) 20-amp single pole breaker in one 1" space
Easy-to-read trip indication via 3-handle positions: on, tripped (center position) and off
Quick-make-quick-break mechanism
Fast wiring box type lugs keep wire(s) in place while tightening
For use with AWG wire ranges of #14-8 Copper and #12-8 Aluminum
Combination robertson/flat head lug screws for flexible installation
NEMA approved, ANSI Certified, and CSA & UL Listed
Interruption rating of 10 kAIC
