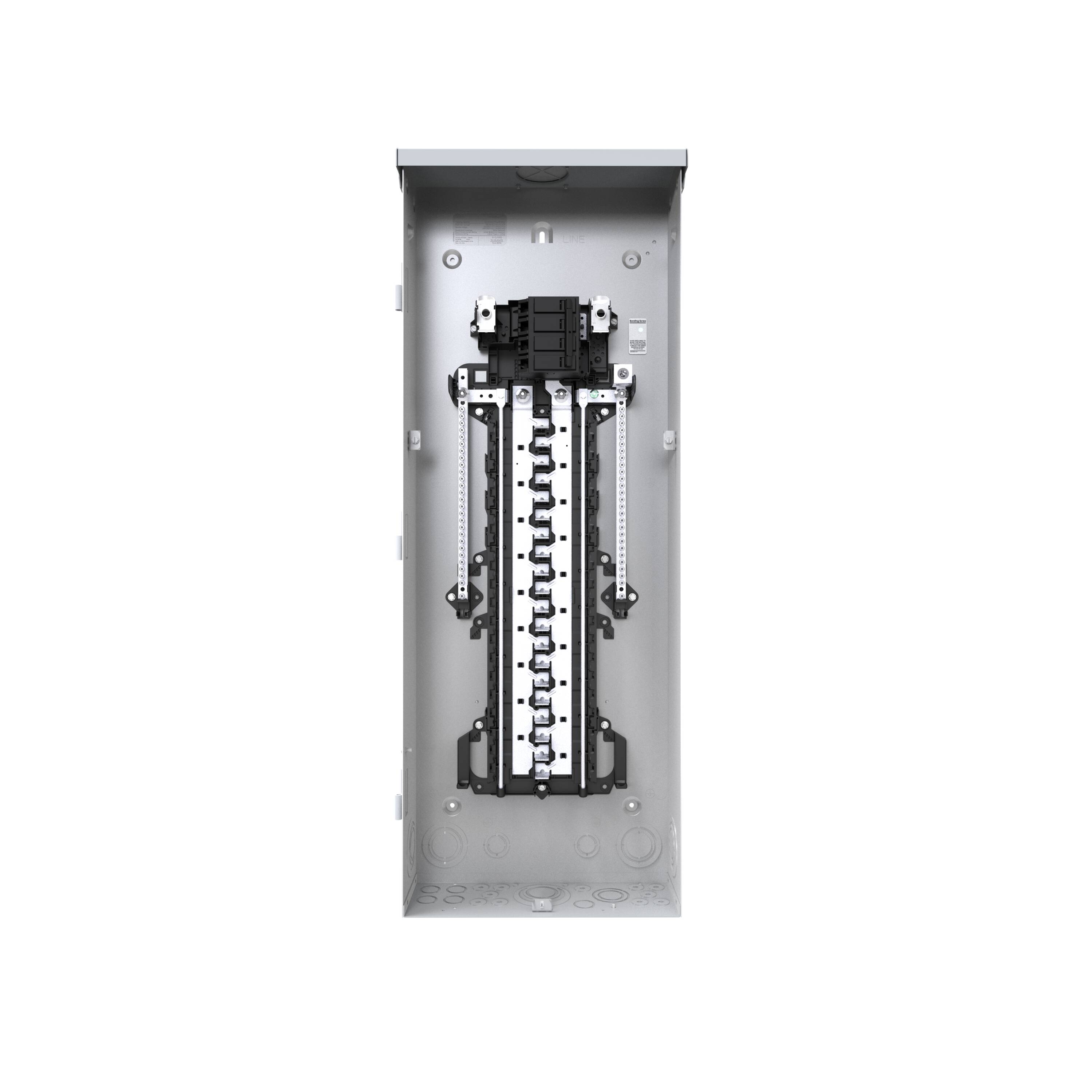

The ABB ReliaHome P-Series Main Breaker is designed to be installed as fast and efficient as possible. The ReliaHome P-Series comes with self leveling center keyhole mount making initial install quick and painless. The ReliaHome P-Series units are made of galvanized metal to resist rust and include features such as plug on neutral, factory installed ground terminations, factory installed bonding screws, elevated neutral bars with backed out screws, tangential knockouts, one tool installation, field extendable neutral bars and an aluminum bus bar. These units are single phase, 3 wire and for use with 120/240 VAC systems. They are UL listed and outdoor NEMA 3 certified. The ReliaHome P-Series is compatible with ABB and GE THQL Q-Line breakers.
Plug On Neutral for less wiring and quicker installation
Elevated neutral bars with backed out screws
Aluminum bus bar
Self leveling center keyhole mount and tangiental knockouts for easier install
NEMA 3R Outdoor Surface Mount
Single Phase, 3 wire, 120/240 VAC with max 22kAIC
UL Listed, ANSI Certified
Compatable with ABB and GE Q-Line THQL Circuit Breakers, AFCI, GFCI and DFCI breakers
Kit includes 3 THQL1120 20 Amp single-pole circuit breakers and 1 THQL2130 30 Amp double-pole circuit breaker
