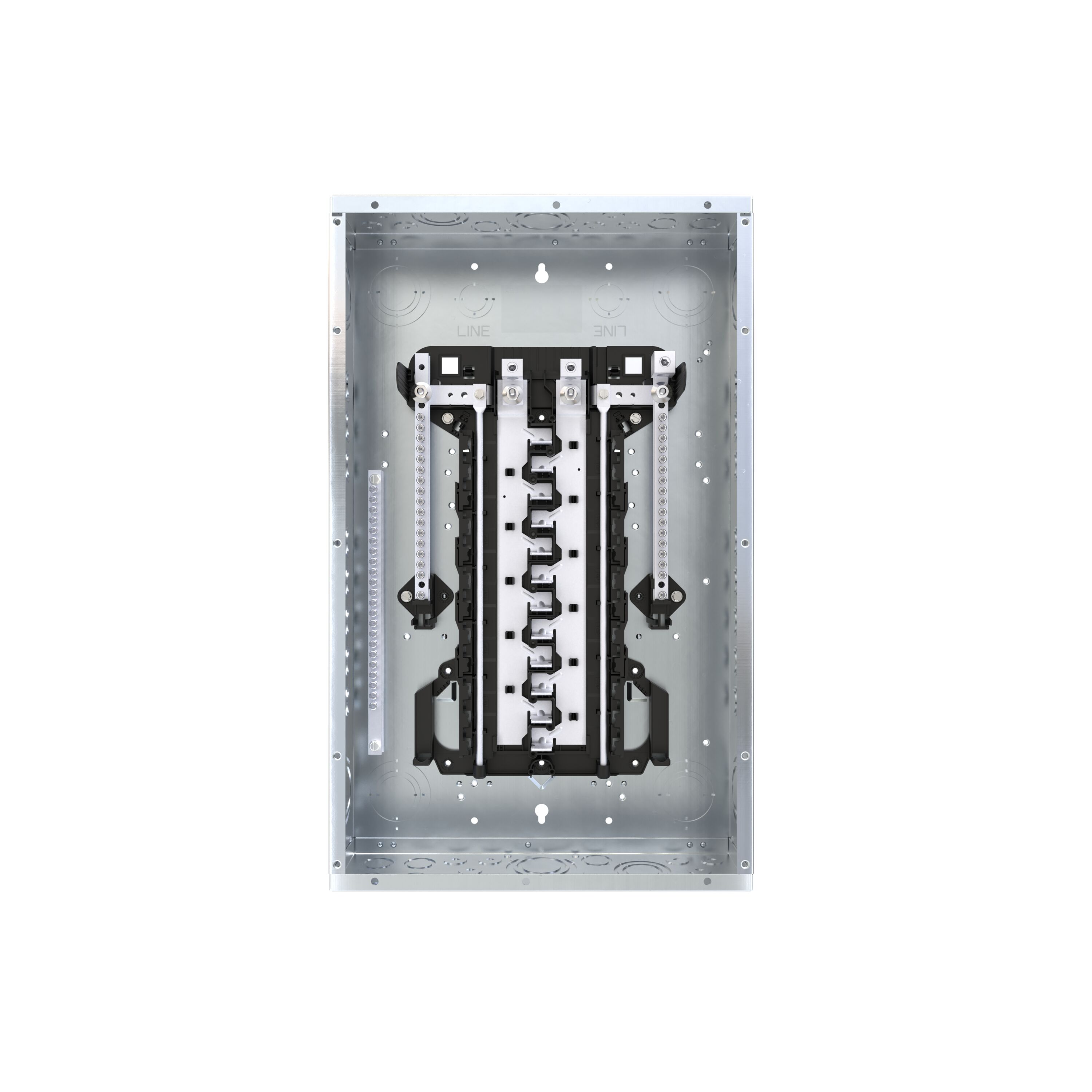

The ABB ReliaHome P-Series Main Lug is designed to be installed as fast and efficient as possible. The ReliaHome P-Series line comes with self leveling center keyhole mount, and drywall mounting depth locating tabs making initial install quick and painless. The ReliaHome P-Series unit are made of galvanized metal to resist rust and include features such as plug on neutral, factory installed ground terminations, elevated neutral bars with backed out screws, tangential knockouts, one tool installation, field extendable neutral bars and an aluminum bus bar. These units are single phase, 3 wire and for use with 120/240 VAC systems. They are UL listed and indoor NEMA 1 certified. The ReliaHome P-Series is compatible with ABB and GE THQL Q-Line breakers.
Plug On Neutral for less wiring and quicker installation
Elevated neutral bars with backed out screws
Aluminum bus bar
Self leveling center keyhole mount and tangiental knockouts for easier install
NEMA 1 Indoor Combination (Surface/Flush) Mount
Single Phase, 3 wire, 120/240 VAC with max 22kAIC
UL Listed and Nema 1
Compatable with ABB and GE Q-Line THQL Circuit Breakers, AFCI, GFCI and DFCI breakers

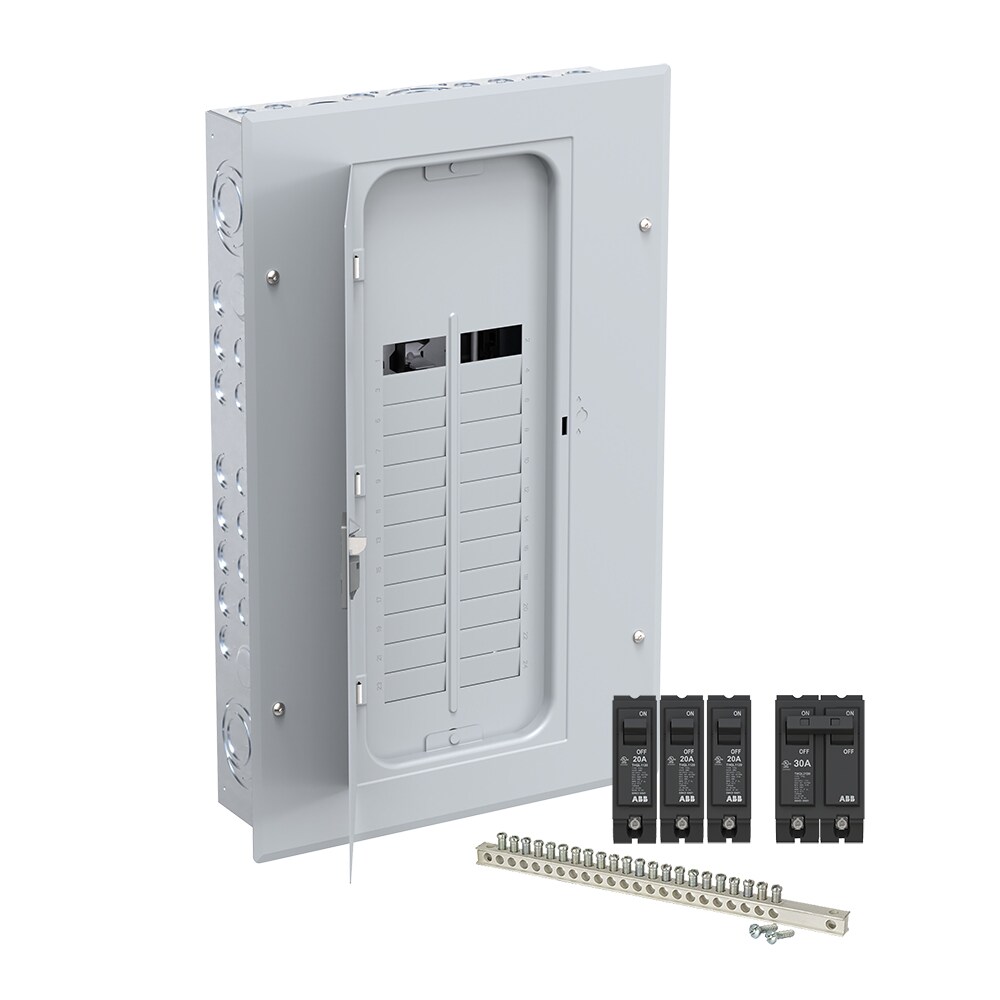

Kit includes 3 THQL1120 20A single pole breakers, 1 THQL2130 30A double pole breaker and a TGK24A 24 space ground bar
