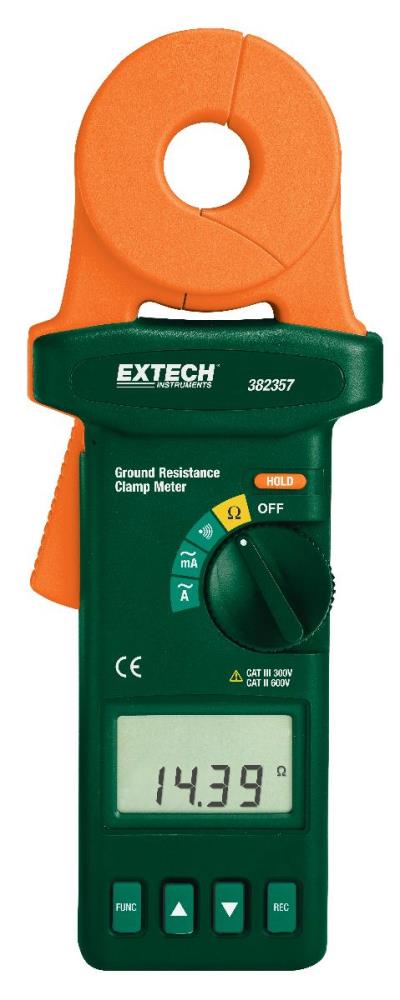

Clamp-on ground resistance tester enables non-contact measurements of ground conductors without the need for auxiliary ground spikes. Measures resistance from 0.03Ω to 1500Ω and true RMS AC leakage current from 0.2 mA to 30.00 A. it features programmable datalogging with 116 points, programmable hi/lo alarms, 0.9 In. jaw size, self calibration when powered on, and verification resistors to confirm the accuracy of the meter. CAT III- 300 V. complete with 9v battery, resistance check plate, and durable metal storage case.
Auto-ranging ground resistance measurements from .025-Ohm to 1,500-Ohm with .002-Ohm resolution
True RMS AC leakage current range of 0.2mA to 30-amps with 1.000mA resolution
Programmable data-logging with 116 data points
Programmable hi/lo alarm
0.9-in (23mm) jaw size for large ground rods
Complete with 9-volt battery, resistance check plate, and durable metal storage case
