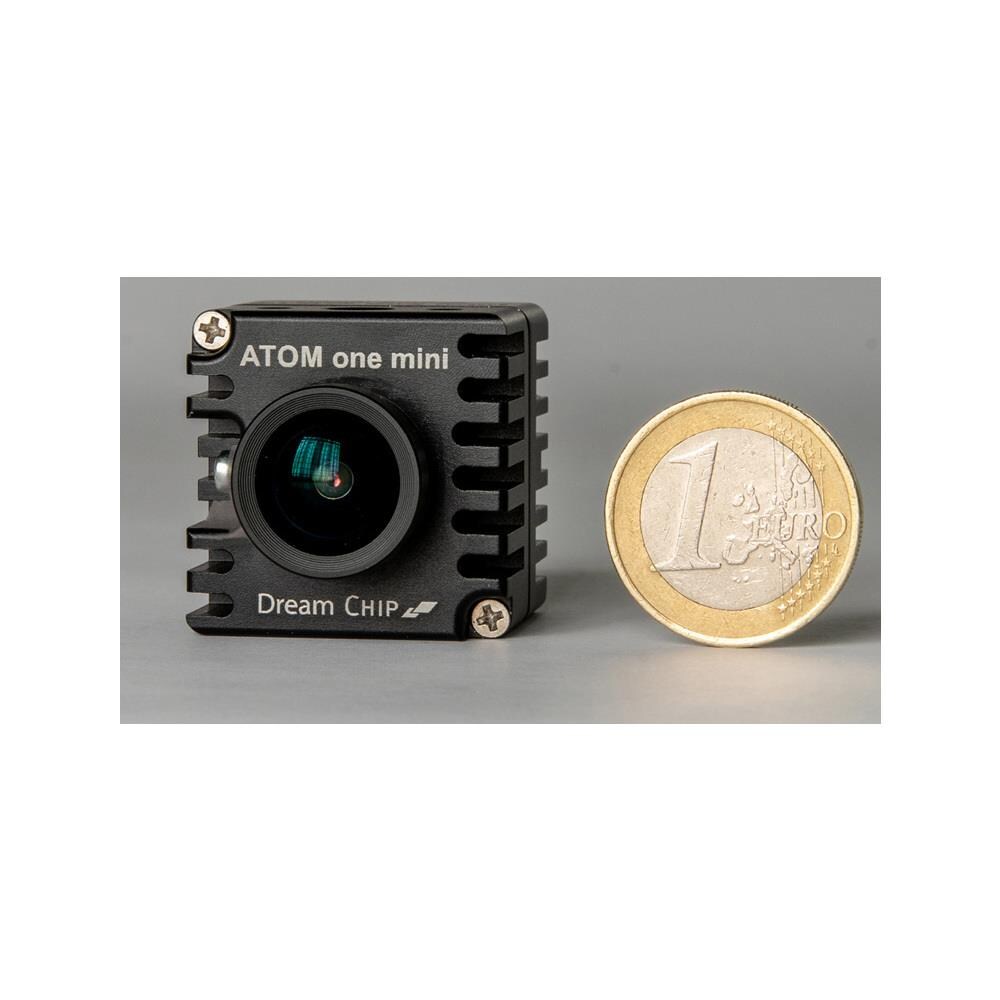

The Dream Chip Atom One DC-001-00018 is a Mini Full HD Rolling Shutter Camera with S-Mount 3.4mm Lens and RS485. It is a small SDI Broadcast Camera with Ultra Wide Angle Support. Features. Low Latency ( Defect Pixel Correction ( auto/manual). Black Level, White Level, Master Black. White Balance/Auto White Balance. Flare Compensation. Lens Shading Correction. High Quality Color Interpolation ( debayer). Color Matrix/Color Correction. Color Temperature Settings/Profiles. Multi-Matrix Color Correction ( 1-2/2-4/32 Angles). RGB LUT Programmable. Knee Function. Denoise Filter. Detail Filter. Color Post Processing ( lumi, contr, sat, hue). SDI Range Adjustable ( black/white). Mirror/Flip. Image Statistics ( white balance, exposure). Auto Exposure/Auto Gain Specifications. Resolution: Full HD 1920 x 1080. Mount: S Mount ( M12). Dimension: 30 mm x 30 mm x 31 mm. Mount Points: 2x -1/4-", 5x M3. Microphone: Mono MicSensor. Type: -1/2.5-". Pixel Size: 3.24um. Diameter: 7.2 mm. Filter: IR Cut/No Filter. Shutter Type: Rolling. Dynamic: 10 bit/57 dB. Sensitivity ISO: Analog 30 - 67-5/Digital 3200. Sensitivity 2000 Lx 50Hz: F2.4. Maximum FOV ( H): 85 degrees 3.4mm LensElectric. Power Supply: 6V-36V. Weight: 0.25 lbs
The Dream Chip Atom One DC-001-00018 is a Mini Full HD Rolling Shutter Camera with S-Mount 3.4mm Lens and RS485. It is a small SDI Broadcast Camera with Ultra Wide Angle Support. Features
Low Latency ( Defect Pixel Correction ( auto/manual)
