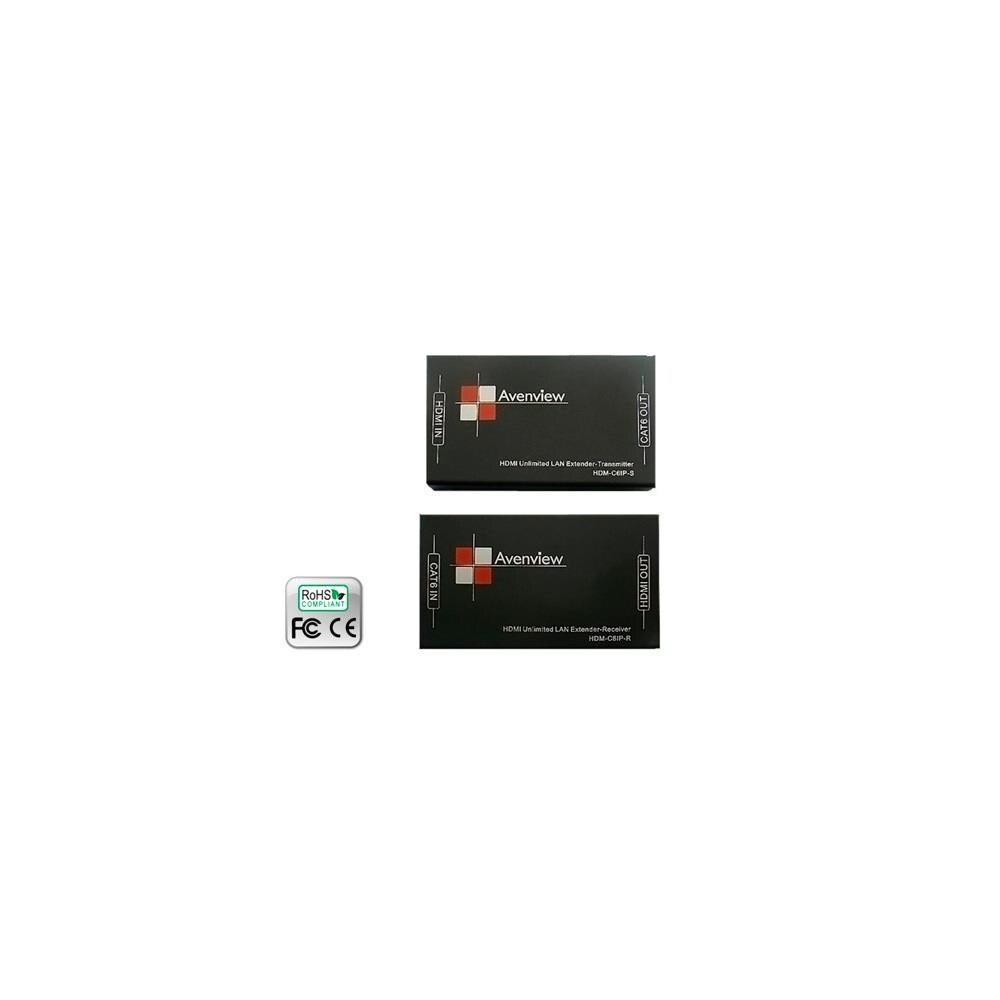

HDM-C6IP-SET, HDMI extender set is designed to extend your HD display with the resolutions of 1080p/60Hz up to 330 feet ( 100 meters) away from your HDMI or DVI-D source. Thanks to the use of the TCP/IP protocol, you can transfer your high-definition video over an existing TCP/IP network. See below three examples:A: The Tx and Rx units can extend 100 meters over a single CAT-5/6 cable connection point to point.B: The Tx can be connected to a router to establish a IP address therefore sending 1080p video signals to Multiple Rx connected to the router to the desired displays. BONUS up to 150 Displays with single Tx.C: The Tx can be connected to a router with internet to establish a DHCP address therefore sending 1080p video signals to Rx connected to the router to the desired displays. Features. Silicon Image chipset embedded for best quality, compatibility and reliability. HDMI 1.3c compliant. HDCP compliant. EDID 1.1. Regenerates the HDMI signal. Extends HDMI up to 100m/120m over single CAT5E/6. Supports resolution HDTV/1080Pp/60Hz, Vesa ( 1920 x 1080). Supporting the point to point transmission function currently which can be expanded to the multi-point to point transmission function. Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission. Allows upto 150 Receivers to single Transmitter Includes. 1 x HDM-C6IP-S. 1 x HDM-C6IP-R. 1 x Power Adapter ( +5VDC, 1A). 1 x User's Manual Specifications. HDMI Compliance: HDMI 1.3c. HDCP Compliance: Yes. Video Bandwidth: M-JPEG technology to process image compressing GIGABIT ( 10/1000) over LAN. Video Resolutions: 480i/480p/720p/1080i/1080p60. Audio Support: Surround Sound ( up to 7.1 ch) or Stereo Digital Audio. ESD Protection: 1 Human body model - 15kV air-gap discharge and 8kV contact discharge- 2 Core chipset - 8kV. Input Connectors: 1x RJ4-5/1 x HDMI. Output Connectors: 1 x RJ4-5/1 x HDMI. Power Supply: 2 X DC 5V/1A. Power Consumption: 3W Max Each. Operating Temperature: 0-40 degrees C (
