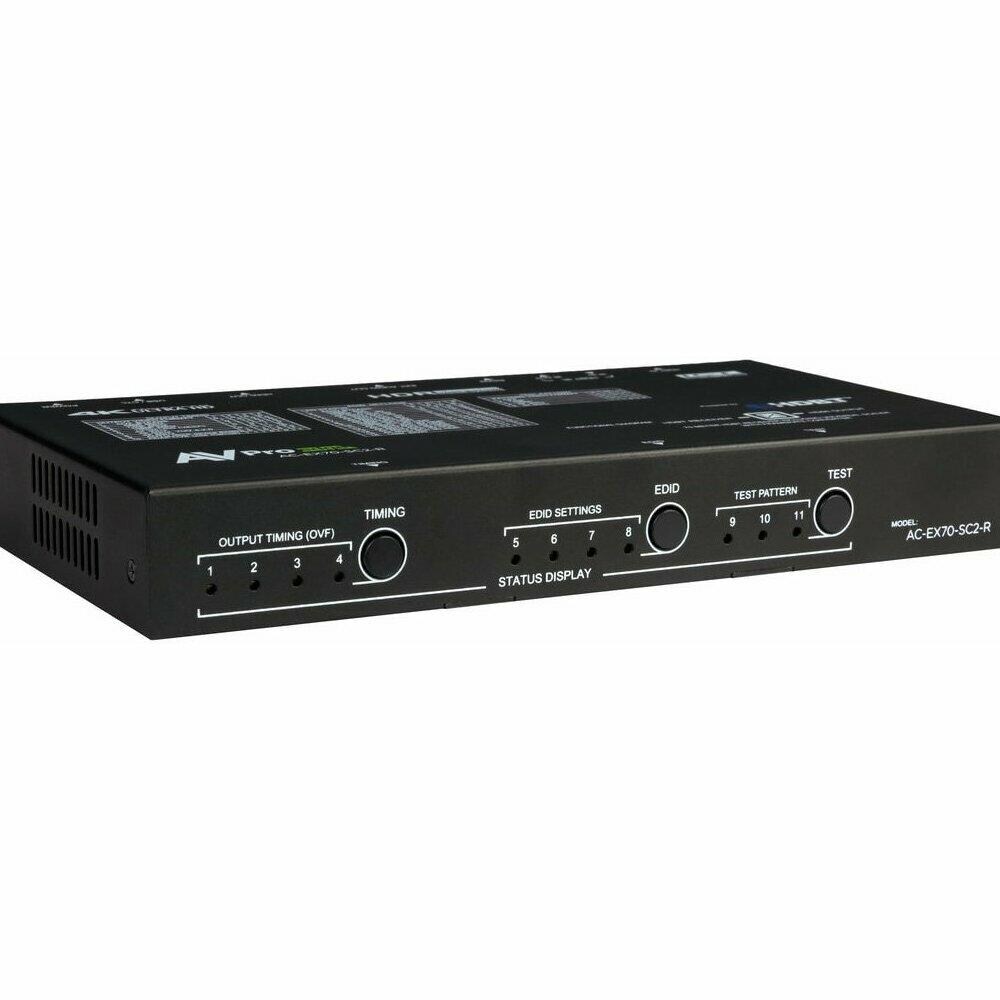

AVPro Edge's AC-EX70-SC2-R is the ideal solution for integrators who need to distribute a signal long distances to a variety of displays and keep an optimal picture. Integrators will enjoy the versatility of not only controlling up/down scaling but handling EDID issues ( including 4K HDR EDID's) and being able to access audio from the stream. This HDBaseT receiver/scaler is ready for 18Gbps 4K HDR signaling. Yet, if you have 480, 720, or 1080 displays, the AC-EX70-SC2-R will make sure they're getting the resolutions and picture type you set. Distributing the audio/video via HDBaseT allows us to send a stable signal without having to rely on IP distribution from a network switch. This ensures the picture quality stays intact, and we won't have degradation over time. Features. 70 Meters 4K Support. HDMI 2.0a w/HDR and HDCP 2.2. Fixed Output Options 480P, 720P, 1080P and 4K. Progressive to Interlaced and Interlaced to Progressive Scaling. Full HDR Support. Adaptive Scaling Mode. 16 EDID Options ( Including Auto and HDR EDID Options). EDID Management and EDID Emulate. L/R Audio De-embedding ( PCM only, does not downmix). Test Pattern Generation Specifications. Video Resolutions: up to 4K 60HZ 4:4:4. VESA Resolutions: up to DCI 4K ( 4096X2160). HDR Formats/Resolutions: 420, 422, 444 ( 10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision, HLG. Color Space: YUV ( Component), RGB ( CSC: REC. 601, REC. 709, BT2020, DCI, P3 D6500). Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported. Deep Color: up to 16 BIT ( 1080p) up to 12 Bit ( 4K). Audio Formats Supported HDMI: PCM 2.0 CH, LPCM 5.1 and 7.1 Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby ATMOS. Audio Formats Supported Extracted ( 2CH Port): PCM 2CH ( No Downmix). Audio Formats Supported Extracted ( Digital Toslink): PCM 2CH ( No Downmix) Scaling. Framerate Coversion: Yes. Interlaced - Progressive Conversion: Yes. Test Pattern Generator: Yes. HDBaseT ( CAT) Distance ( 4K): 230 ' ( 70m) ( Cat6A). HDMI Lead In/Out ( 4K60 4:4:4)
