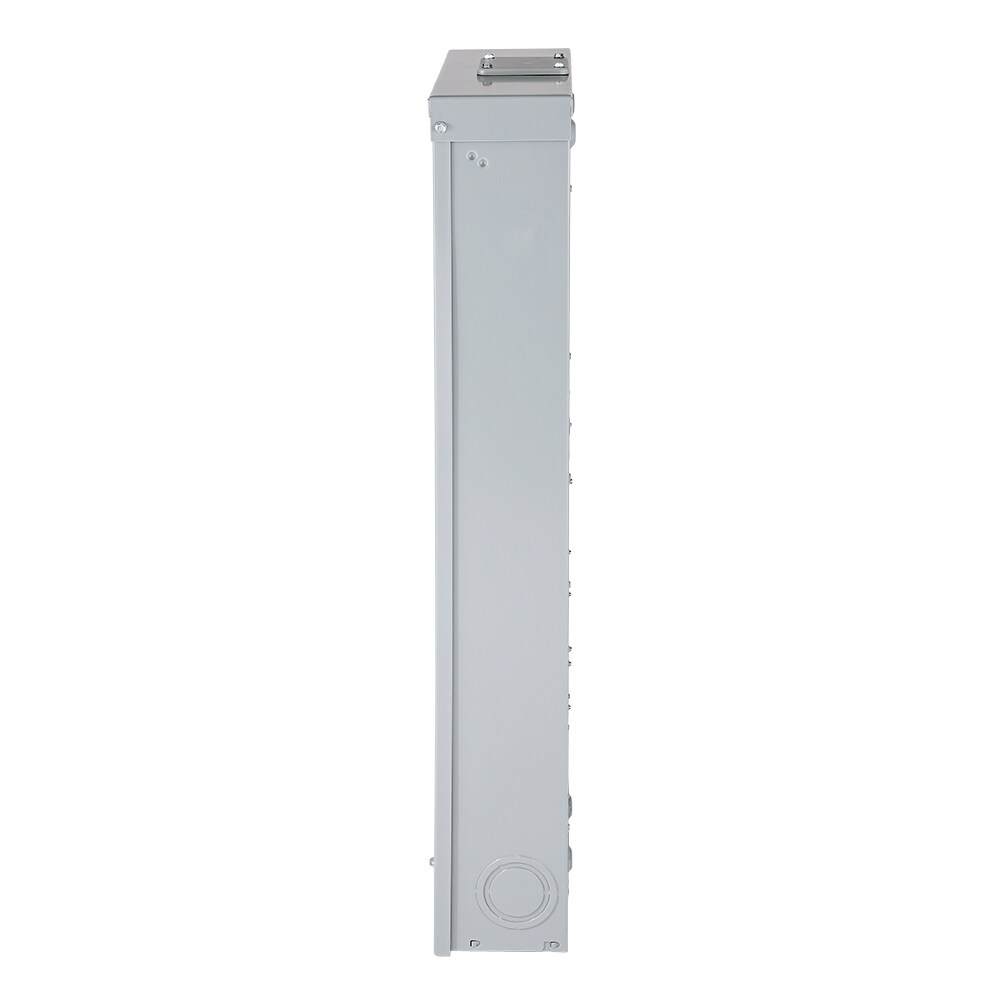

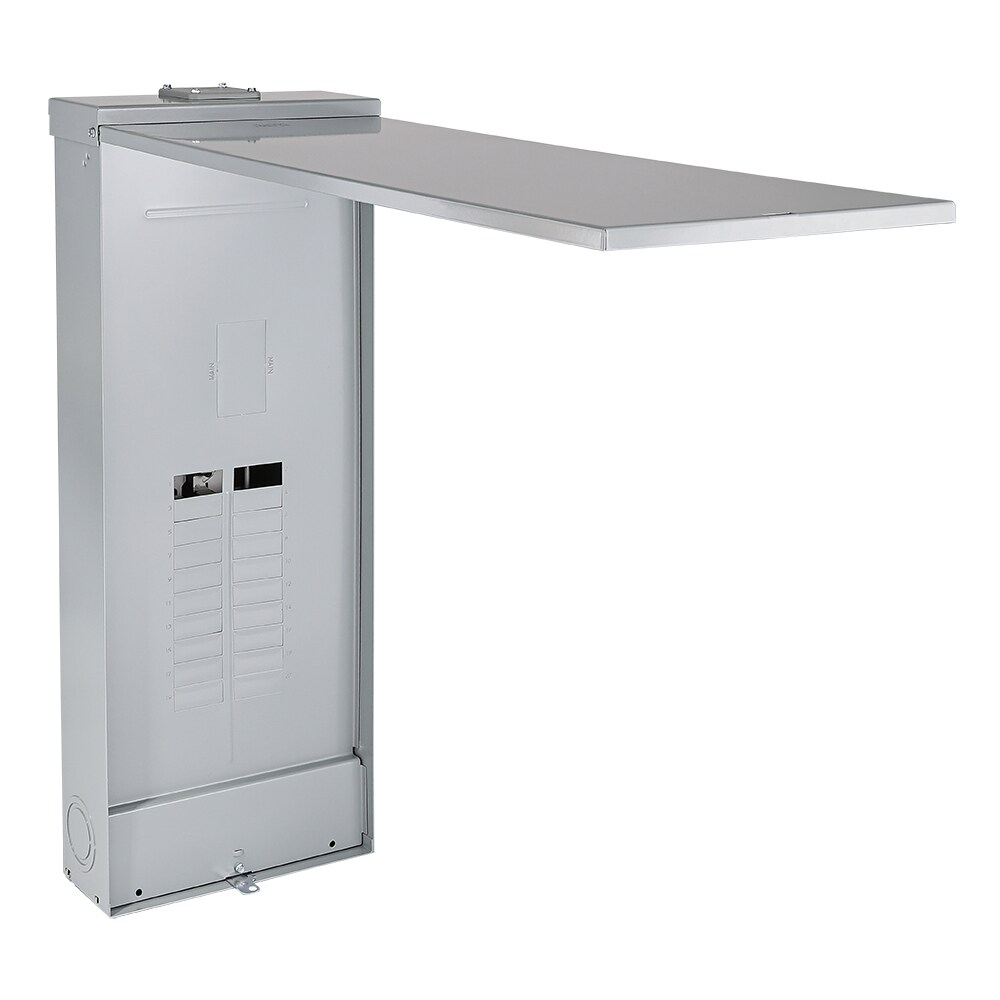

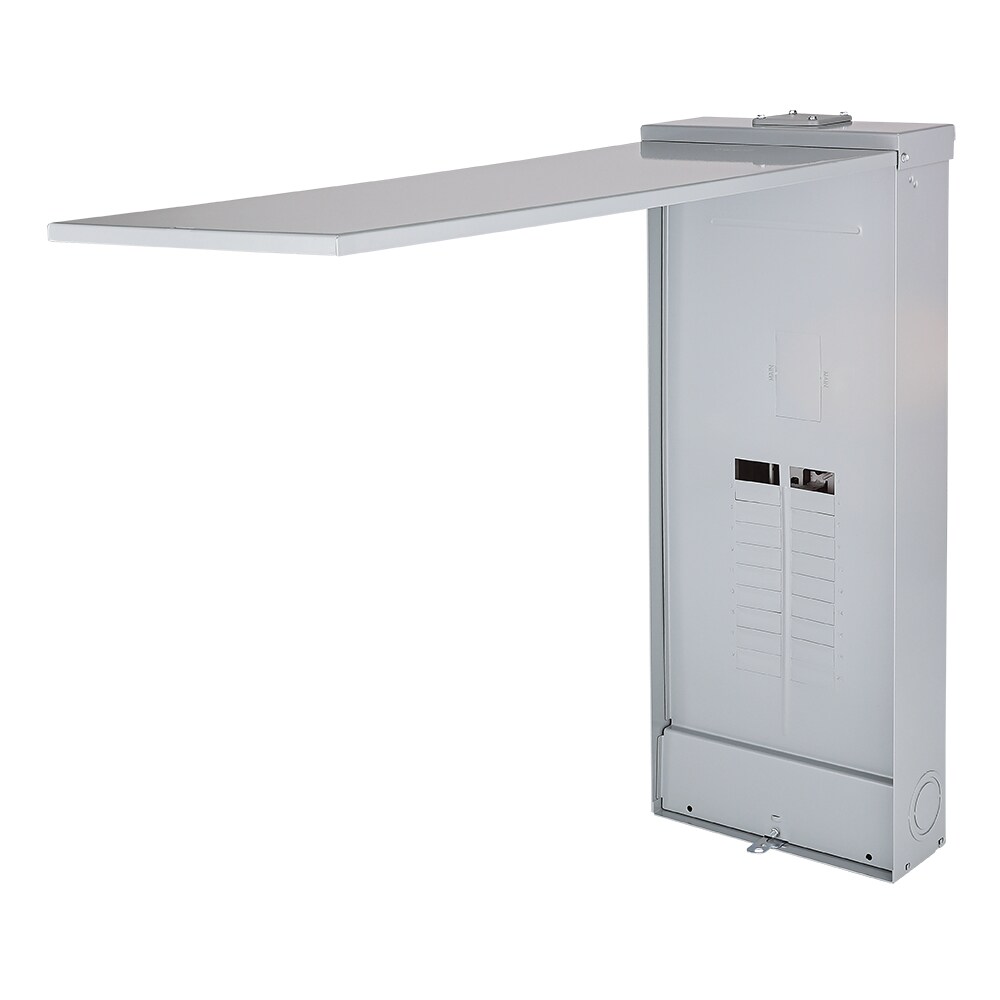

This ABB Reliahome P-Series 200-Amp 20-Space 40-Circuit Outdoor Main Lug Convertible is designed to be installed as fast and efficient as possible. This unit can be converted to a Main Breaker. The P-Series units are made with galvanized metal enclosures resisting rust and include features such as plug on neutral, factory installed ground terminations, elevated neutral bars with backed out screws, tangential knockouts, one tool installation, and self leveling center keyhole mounts making initial install quick and painless. The unit also has field extendable neutral bars and an aluminum bus bar. They are UL listed and outdoor NEMA 3R certified. The ReliaHome P-Series load center are compatible with ABB and GE THQL, THHQL, Tandem, Quad, PON and Pigtal versions of AFCI, GFCI, and DFCI Q-Line breakers.
Plug On Neutral for less wiring and quicker installation
Compatible with ABB and GE THQL, THHQL Standard, Pigtail and PON AFCI, GFCI and DFCI breakers
Factory installed TGK24 ground bar and TNLK20 neutral/ground lug kit
Order additional TGK12 or TGK24 separately if needed
Closure caps included, hubs ordered separately
Full length neutral bars for fast and easy wiring
Self leveling center keyhole mount and tangiental knockouts for easier install
Single Phase, 3 wire, 120/240 VAC with max 22kAIC
UL Listed, ANSI certified, NEMA 3R outdoor surface mount
