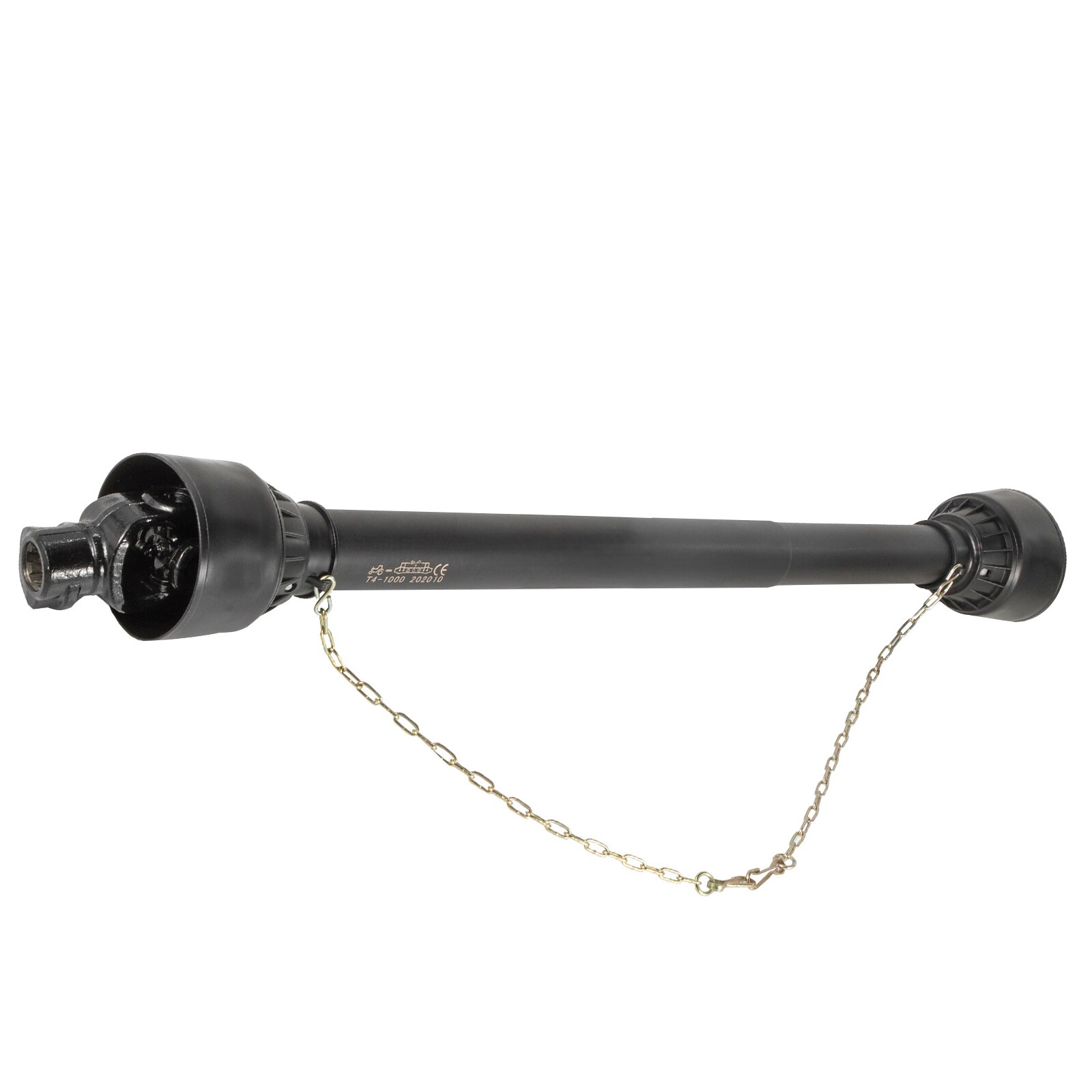

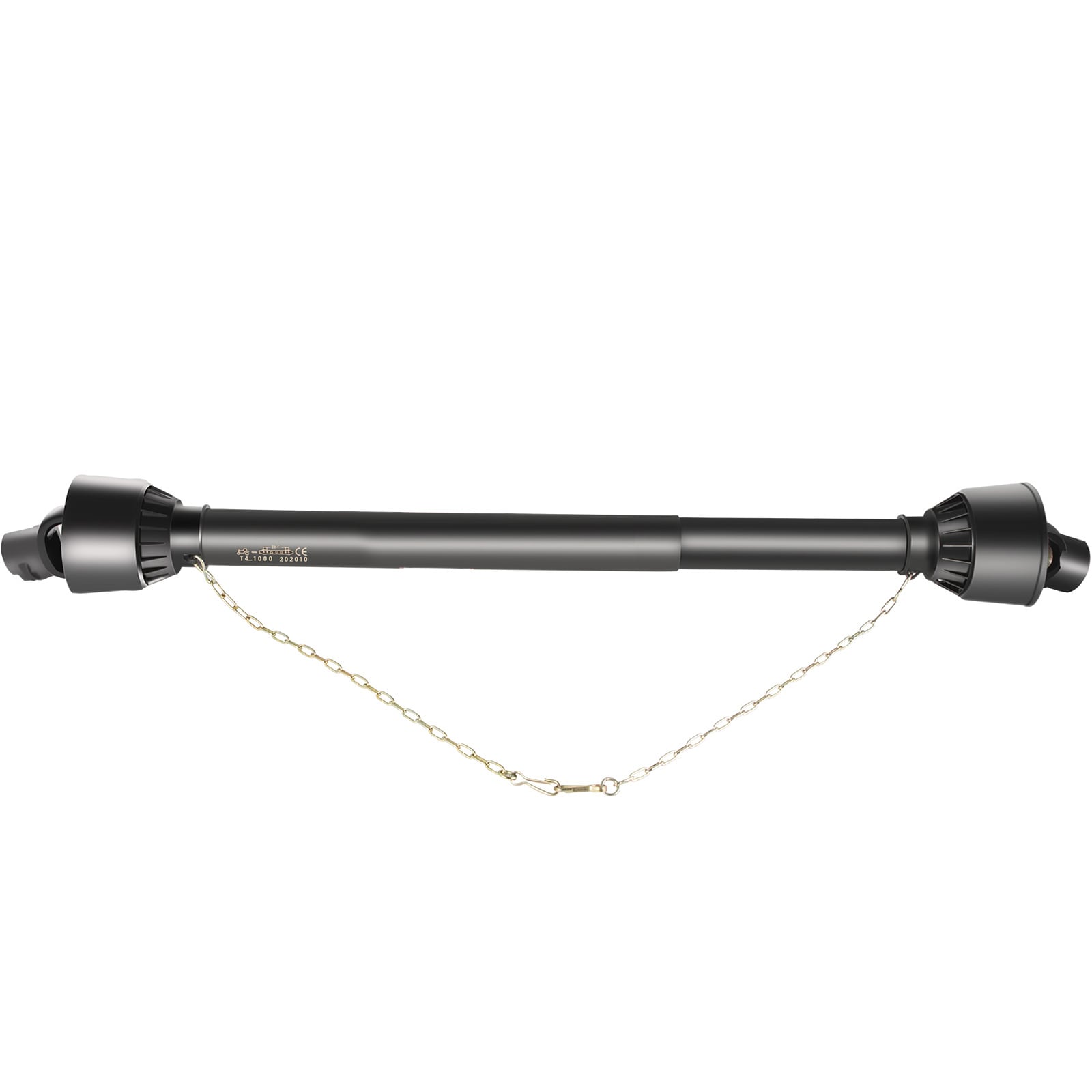

This Series 4 PTO drive shaft transfers power from tractors to rotary cutters, brush hogs, finish mowers, wood chippers, tillers, and fertilizer spreaders. The shaft uses a 1-3/8 in 6-spline tractor end and a 1-3/8 in round implement end, sized to drop in as a like-for-like replacement on standard ag equipment. A 20CrMnTi carburized steel universal joint sits inside a Q345 steel telescoping tube, delivering 35 HP, 26 KW, and 460 Nm of torque at 540 RPM and 53 HP, 39 KW, and 360 Nm of torque at 1000 RPM. The compressed length is 43 in and the extended overall length is 61 in , letting two sides spin at different speeds.

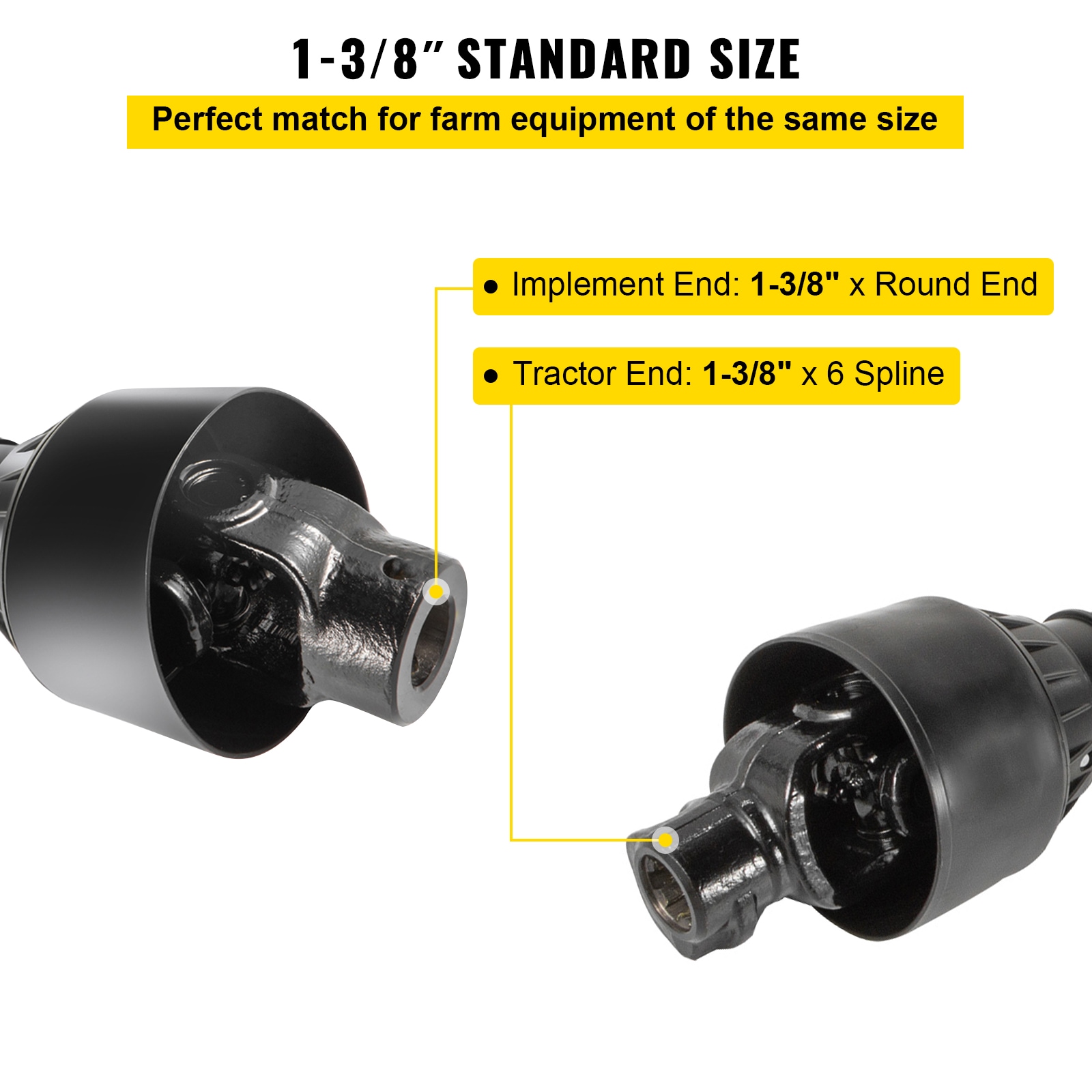

1-3/8 in 6 Spline End: a 1-3/8 in 6-spline tractor end and a 1-3/8 in round implement end drop in as a like-for-like replacement on standard ag equipment
High Torque Output: delivers 35 HP, 26 KW, and 460 Nm at 540 RPM and 53 HP, 39 KW, and 360 Nm at 1000 RPM through a 20CrMnTi carburized universal joint
Adjustable Length: compressed length is 43 in (1100 mm) and extended length is 61 in (1550 mm), so each side spins at its own speed across machinery setups
Wide Application: drives finish mowers, rotary cutters, brush hogs, brush cutters, wood chippers, rotary tillers, tractors
Safety Shield Build: CE-certified Q345 steel tube with a sturdy plastic shield and security chain reduce hazards during transmission run, supporting longer field days
At 1000 RPM: 53hp Series: 4 Compressed Length: 43 / 1100mm Extended Length: 61 / 1550mm Tractor End: 1-3/8 x 6 Spline Color: Black
