Specification:

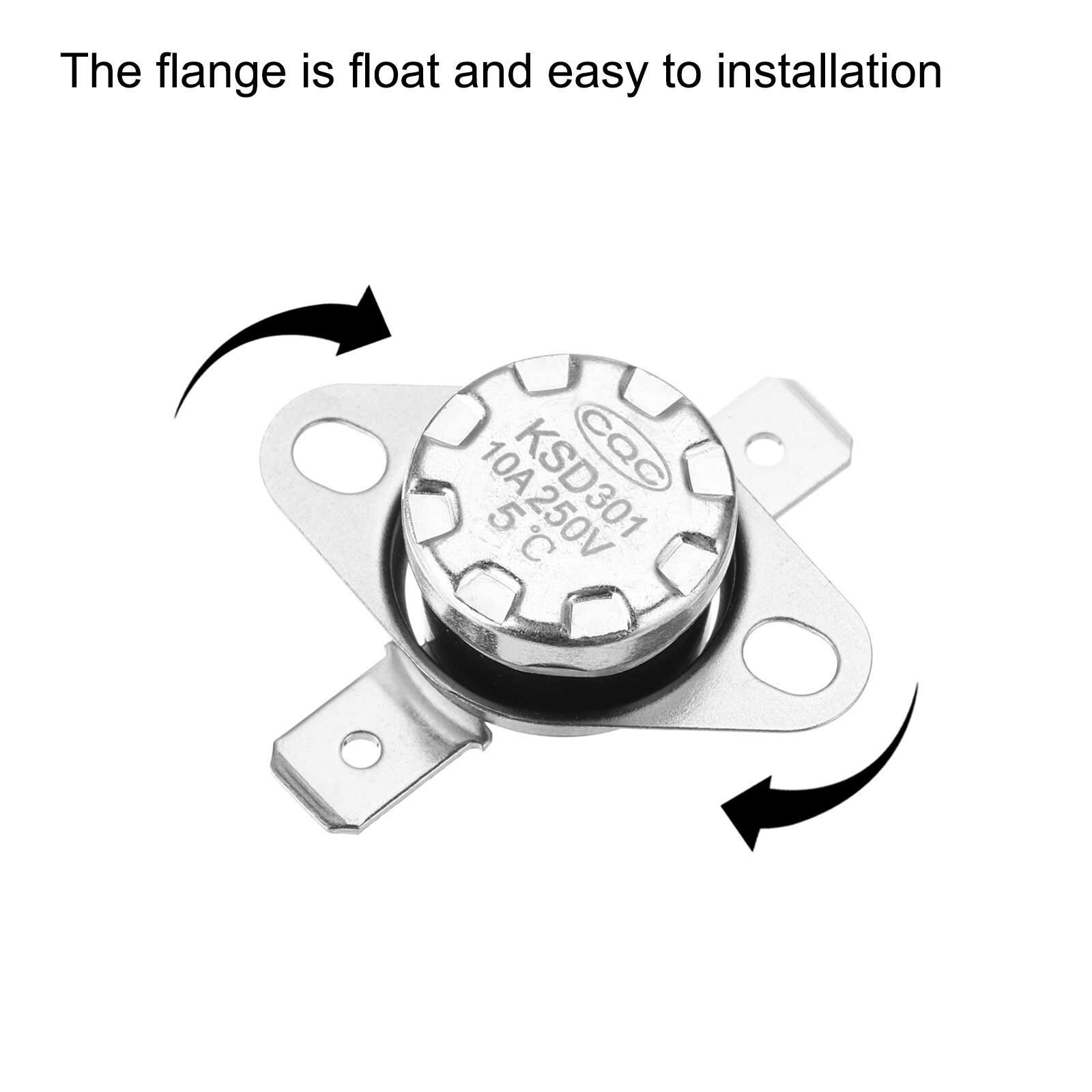

Product Name: Temperature Control Switch
Model: KSD301
Action Temperature: 5 °C
Action Type: N.C (Normal Close)
Rated Voltage/Current : 250V/10A

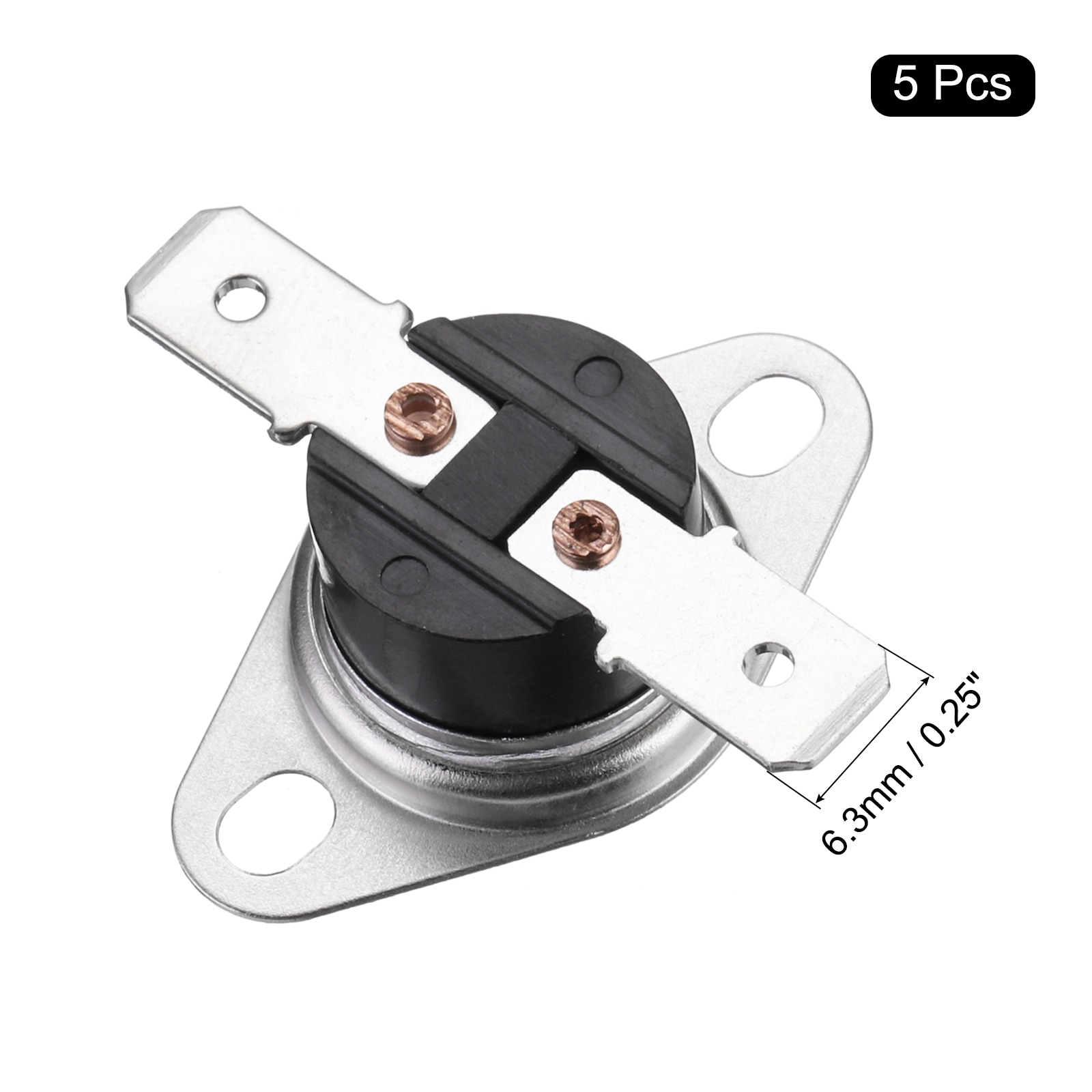

Pin Width: 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon
Package Content :
5 x Temperature Control Switch
Description :
1. Normally Closed: The original state of the temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2. Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, and no arc phenomenon.
3. Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4. Function: It is closed until the temperature reaches 5 degrees Celsius, then the switch opens. Widely used for temperature control or protection for household electric appliances.
5. Application: Mainly used for motor electric heating, bottles, cabinets, coffee shells, electric irons, dryers, air conditioning, heaters, electronic cookers, and motor cleaners, etc.
