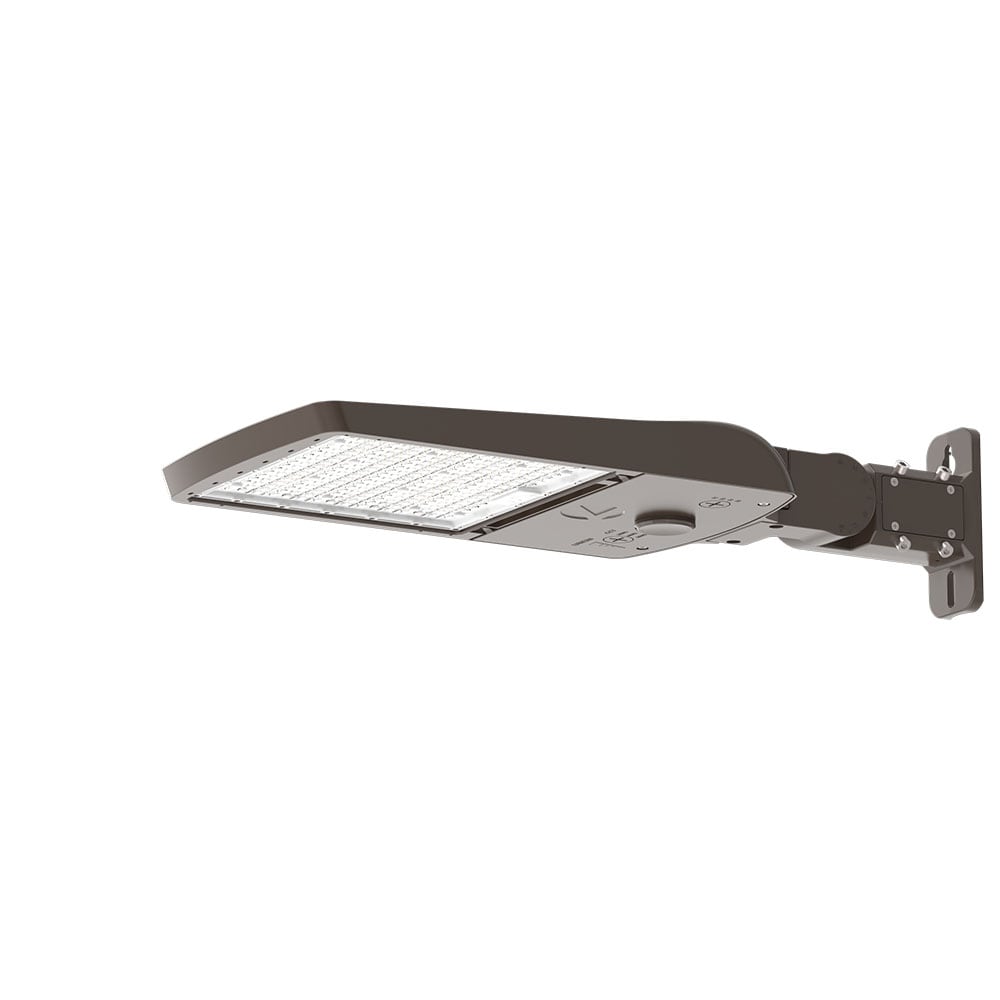

"The EAX1 LED Area Luminaire from Lithonia Lighting provides the best combination of switchable technology including adjustable lumens, switchable CCT color temperature and four-optic SwitchOptics™ providing Type II, III, IV and V distribution patterns; all from a single luminaire. With over 60 field-configurable options in a single SKU, this area lighting solution truly adapts to your project needs on the spot. Whether you’re illuminating a local retail lot, a walkway, or a sprawling parking lot, you can select the right distribution pattern, lumen output, and color temperature for your environment. The EAX1 delivers 5,000 to 16,000 lumens and the option to choose a 3000K, 4000K or 5000K color temperature. It is a great choice for lighting new sites and retrofit, replacing 50W to 400W HID area luminaires, while providing long service life and fast payback."
TECHNOLOGY: SwitchOptics™ delivers up to four distribution patterns in a single EAX1 luminaire - just slide the switch to shift seamlessly from wide-area parking coverage to focused pathway illumination without requiring one to physically change the lens
ENERGY SAVINGS: 60% or more savings is possible with the outdoor LED Area Luminaire when replacing legacy HID sources like metal halide, mercury vapor and high pressure sodium
CONTROLS: Controls ready with NEMA twistlock 3 pin photocell receptacle and Acuity sensor-ready receptacle (no controls included)
VOLTAGE/RATINGS: UVOLT (120V - 347V), IP66, Wet Location, DLC Premium, cULus listed
FEATURES: Delivers 5,000 to 16,000 lumens and the option to choose a 3000K Warm White, 4000K Cool White or 5000K Daylight color temperature
HOURS OF LIFE: Light engine consists of high-efficacy LEDs mounted to metal-core circuit boards to maximize heat dissipation and promote long life (up to L74/100,000 hours at 25°C)

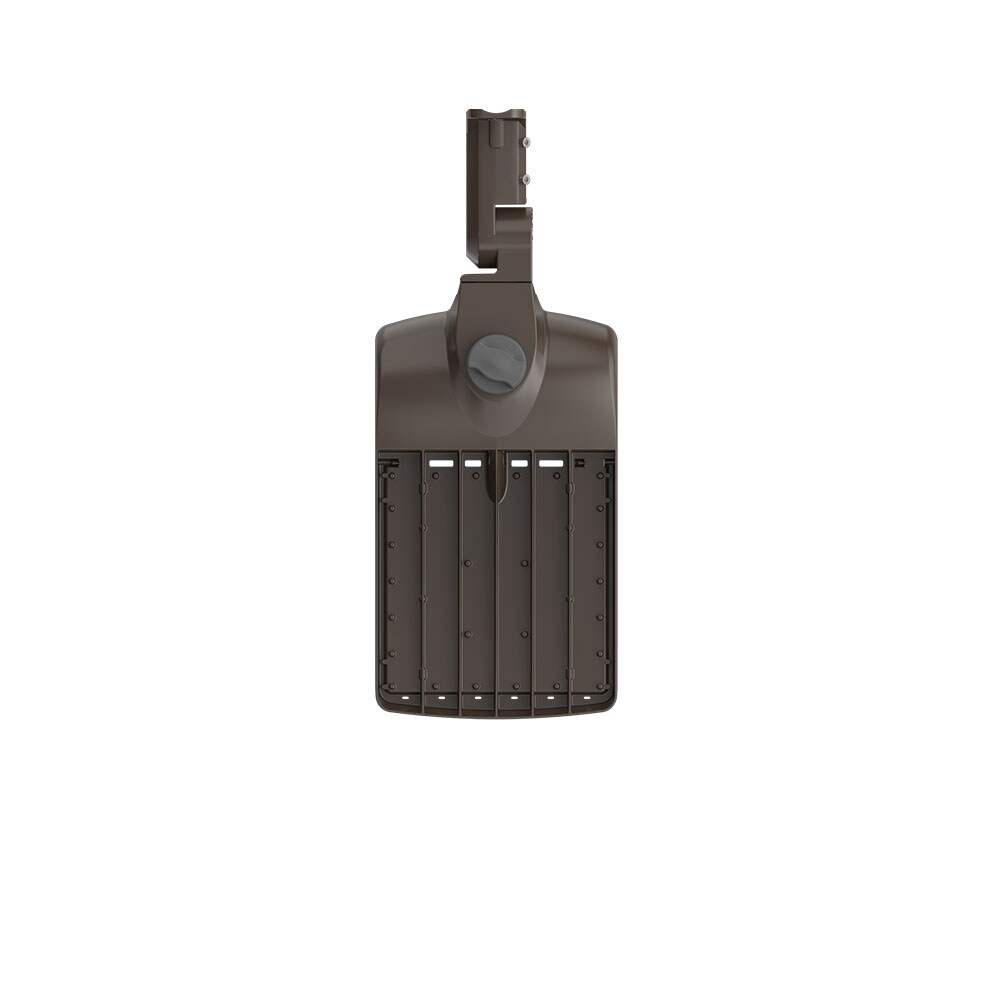

CONSTRUCTION: Die-cast aluminum housing with heat-dissipating fins enhances LED efficacy and component life and the light engine and driver compartment is completely sealed against moisture and environmental contaminants
WARRANTY: 5-year limited warranty
