This 56-Frame motor (AC220-240V) is an excellent replacement for most OEM SPA pumps;It comes with two 2-inch (5.6 cm) connectors, offering broad compatibility with various hot tubs;Be sure to check the input power of your existing pump before purchasing to ensure compatibility.
Choose between high speed (3 HP, 200 GPM) and low speed (0.4 HP, 100 GPM) depending on your hot tub needs;The pump's motor is equipped with anti-creep bearings, ensuring smooth, long-lasting operation, even after 80,000 electric cycle tests.
We prioritize safety with high-quality Fluororubber shaft seals that resist high temperatures, corrosion, and aging;These seals ensure a stable, leak-free operation, even under harsh conditions, for a worry-free hot tub experience.
Mainstream Pump Model: The pump model 56 Frame Motor (AC220-240V 60Hz) is a perfect replacement for the OEM model; We also include two 2 in/5.6 cm connectors to fit a variety of bathtubs; Note that the SPA pump depends on the input power, not the output power; Check the parameters of your old pump before purchasing;
Two-Speed Design: To better meet the actual application, we set two speeds: high speed 3 HP (flow rate 200 GPM) and low speed 0.46 HP (flow rate 100 GPM); This strong power comes from the pure copper wire motor with anti-creep bearings to control the impeller speed; Moreover, each motor has passed the 80,000 times electric cycle test to work stably for a long time;
Seal Against Leakage: Anti-leakage is the key to the SPA pump for hot tubs, so we only use Fluororubber shaft seals, which have good resistance to high temperature, corrosion, oil, and aging and are able to maintain stable sealing performance in harsh working environments; It effectively avoids the leakage of fluids and particles; You can enjoy different types of soaking massages without worrying about infiltration problems;

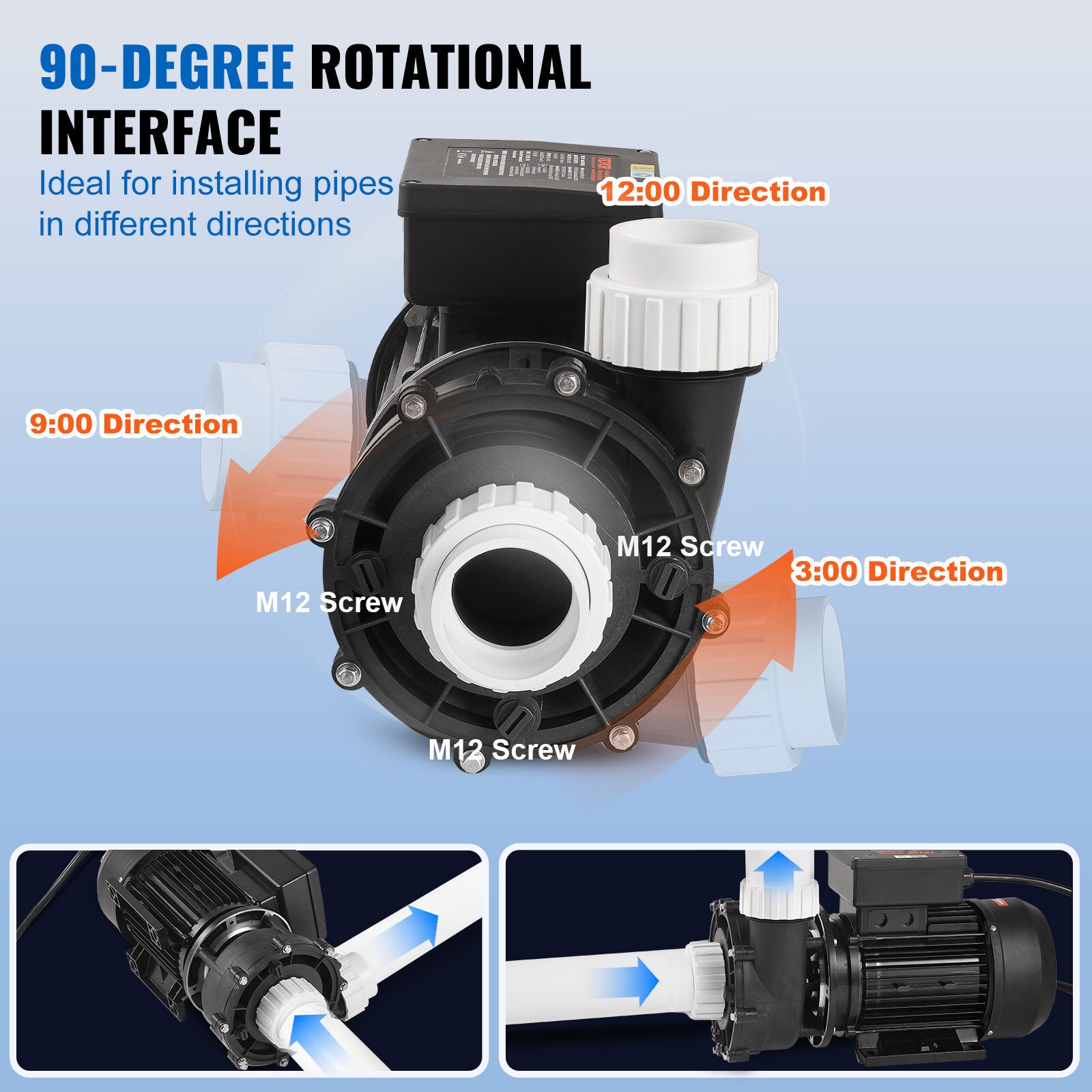

90° Rotational Interface: The SPA pump head and interface can be rotated by simply disassembling the screws, and the angle of the pump can be easily adjusted so that it can be adapted to tight spaces or special angle installation requirements; This design simplifies the structure of the liquid transfer pipe, making the piping connection more flexible and easy to install while also facilitating future maintenance work;
Secure Operation: To strengthen security, we have accessed Texas Instruments Thermal Protection, characterized by high precision, fast response, and low power consumption and can effectively monitor the motor temperature; When the temperature exceeds the set value, it will automatically disconnect the circuit to protect the motor from damage, and you can use it with confidence;
Specification: Item Model Number: 56HT300-II; Voltage Frequency: AC220-240V, 60Hz; Speed Type: Two Speed; High Speed Horsepower / Flow / Head Lift: 3.0 HP / 200 GPM / 65.61 ft (20 m ); Low Speed Horsepower / Flow / Head Lift: 0.4 HP / 100 GPM / 16.07 ft (4.9 m); Interface Rotation Angle: 90°; Net Weight: 35.27 lbs/16 kg
