VEVOR Concealed Hinge Jig Cabinet Hinge Jig with C Type Clamp and Accessories Pa66 Nylon and Steel Material Accurate Hinge Drill Jig Woodworking Tool For Doors Cabinets Hinges Mounting

Versatile Hinge Jig: Our jig is crafted with high-quality materials like PA66 and carbon steel; It's stable and durable, suitable for various complex environments;

Portable Design: The main body has a locking design for easy storage; Its compact and portable, with a stable hexagonal structure;

Compatible Hinges: Suitable for 1;38'' and 1;02'' hinges, it meets the needs of different furniture like cabinets and doors, with a drilling axis hole function;

Wide Application: The hinge jig suits 1.38'' and 1.02'' hinges; It is primarily designed for precise hinge hole positioning in wood and can be used with power tools like drills for easy angled drilling; It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks; It has a 1.38''/35 mm drill bit for drilling holes; The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm);

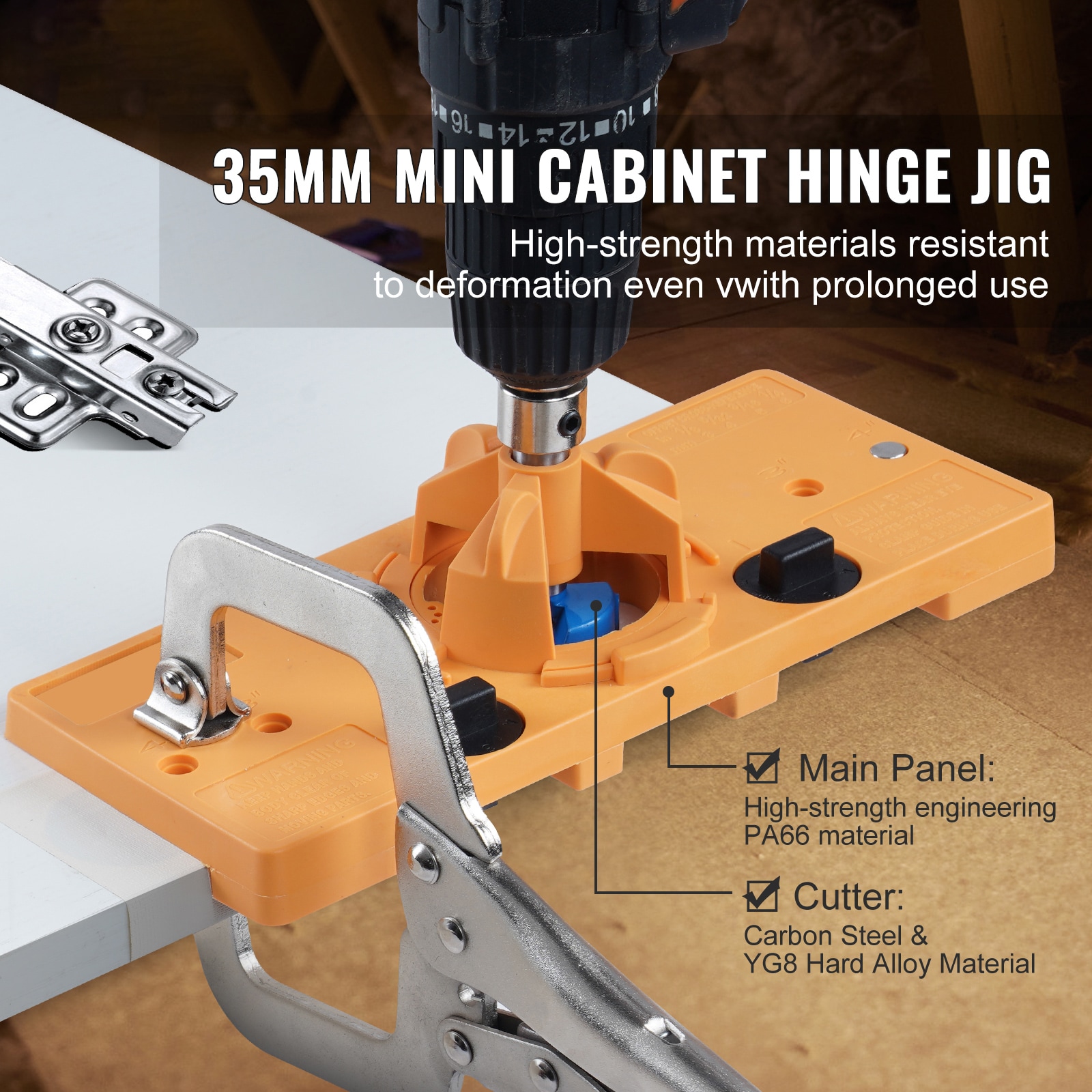

Sturdy and Durable: The main panel of our door hinge jig is made of high-strength engineering PA66 material, while the drilling tools are made of carbon steel and YG8 hard alloy; Its overall structure is stable, ensuring durability and adaptability to harsh weather conditions, high temperatures, and moisture; It maintains strength and stability, with minimal risk of deformation or damage, even with prolonged use;

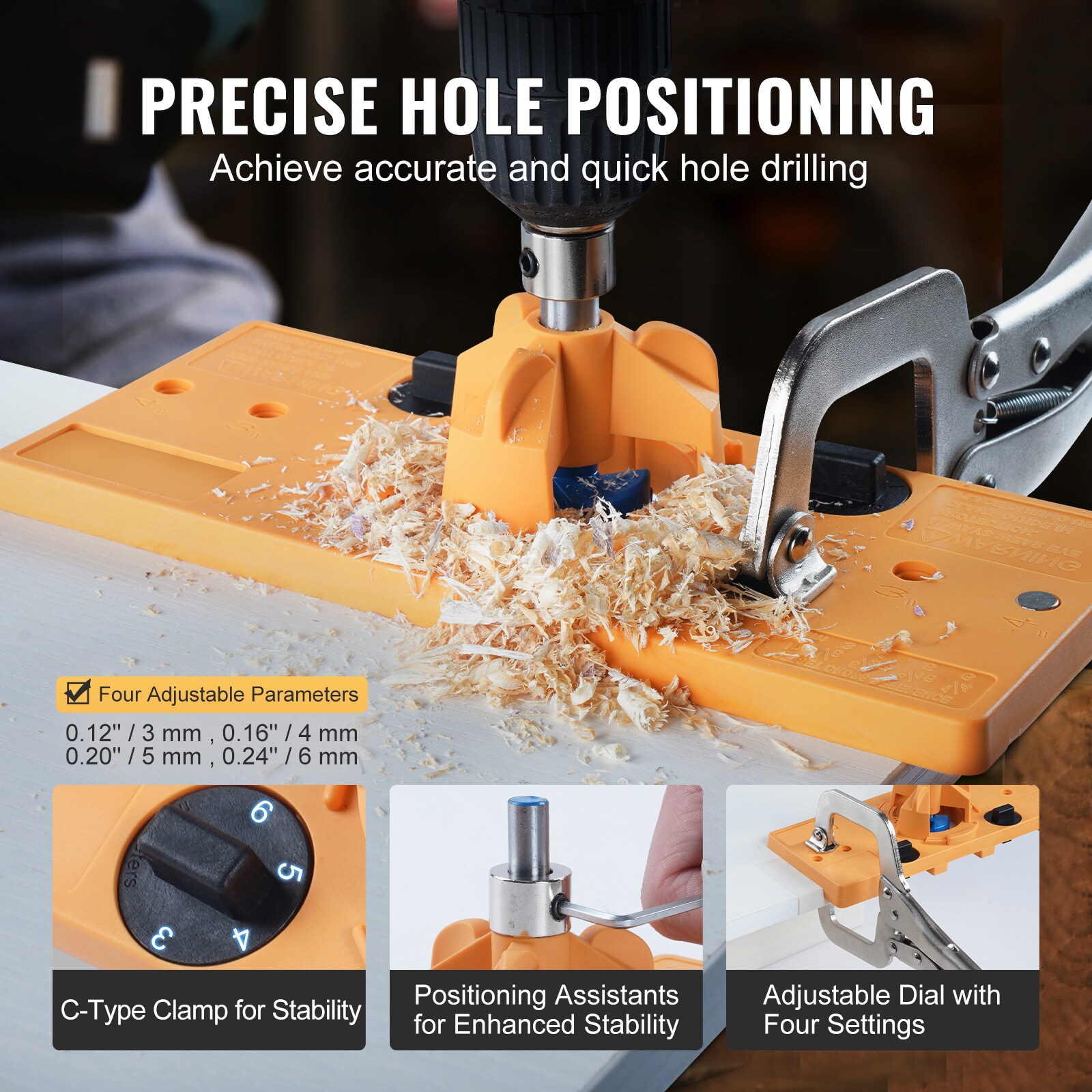

Precision Drilling: Our hinge jig kit can precisely position holes without marking; The C-type clamp, limit positioning accessories, and the 4-stage adjustable dial (0.12''/0.16''/0.20''/0.24'') prevent hole deviation, making it easy to accomplish accurate and quick drilling work;

User-Friendly: The concealed hinge jig is easy to operate and install without professional assistance; Just follow the 4-step instructions in the manual: Step 1, install the drilling tool and tighten the limit positioning accessories; Step 2, adjust the dial and insert the positioning rod; Step 3, secure the drill bit with the C-type clamp; Step 4, drill the 1.38'' hole and side holes in sequence, then install the hinge; You can complete the installation in just a few minutes;

Comprehensive Accessories: The 35mm cabinet hinge jig kit comes with a rich set of accessories, including 1 x main panel, 1 x φ35mm hole cutter, 1 x hex wrench, 1 x φ2mm twist drill bit, 1 x positioning rod, 1 x stand, 1 x positioning ring, 1 x c-type clamp, 2 x 26mm hinge hole positioning assistants; This comprehensive kit provides everything you need to handle hinge-hole drilling tasks effortlessly;

Specification: Item Model Number: SXRJL-2301; Compatible Hinge Types: Φ1.02''/26mm and Φ1.38''/35mm hinges; Product Color: Vibrant Orange; Main Materials: PA66 Nylon (Main Panel and Stand) + Steel; Product Weight: 1.54 lbs / 0.7 kg; Product Dimensions: 8.86x3.74x3.35 inch / 225x95x85 mm
