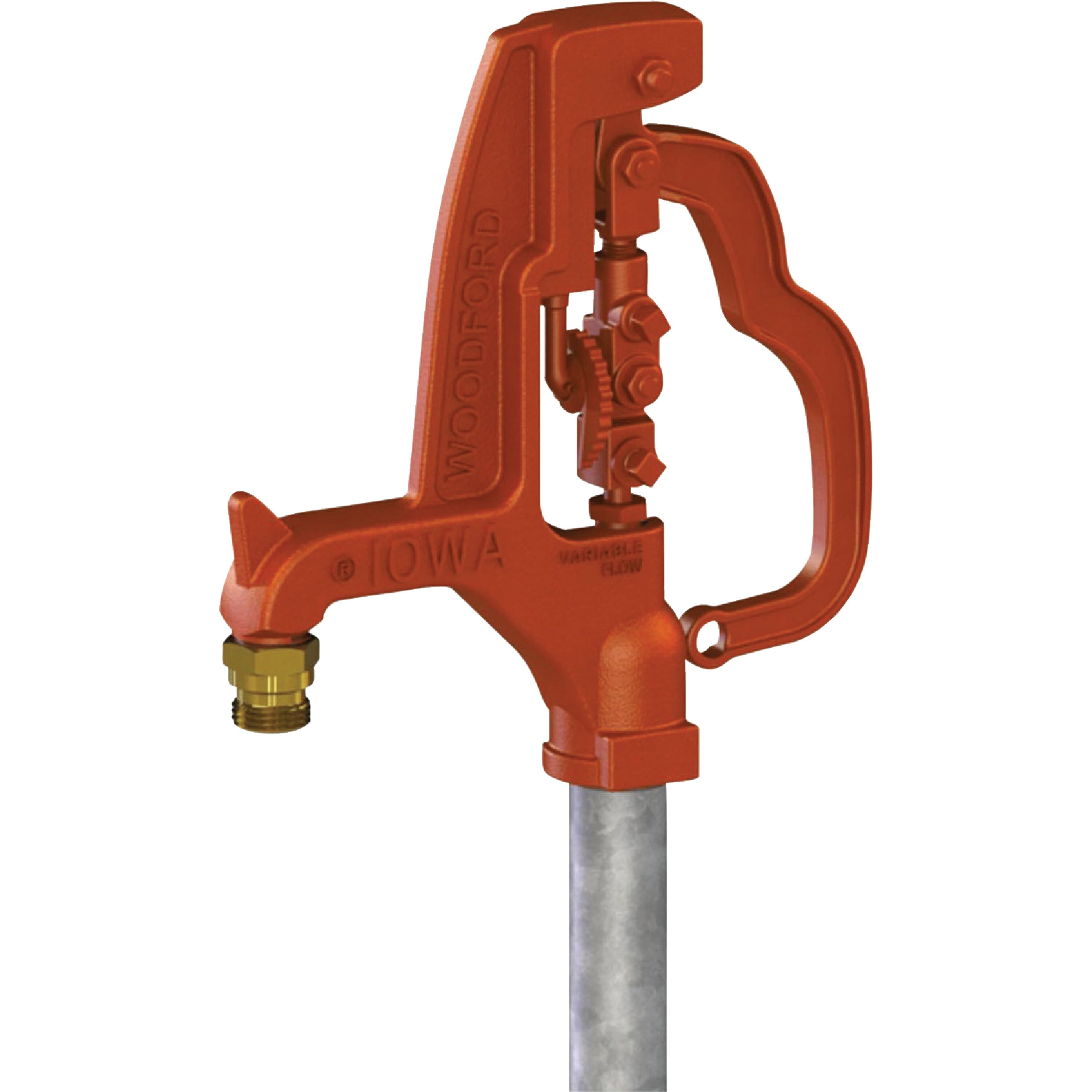

Woodford Y34-3 frost-proof yard hydrant provides reliable outdoor water access even in freezing conditions. The hydrant allows immediate water flow in subzero temperatures and automatically drains when the water is shut off and the hose is removed, preventing freeze damage. A large nitrile plunger ensures positive shutoff while graphite packing reduces wear for long-lasting operation. The unit features a lockable handle with an adjustable link to set lever tension and durable construction with a cast iron head and handle, galvanized steel rod, and 1' galvanized casing. Specifications include a 3 ft bury depth, 72-1/2' overall length, 3/4' FNPT inlet and outlet, 1/8' NPT drain hole, 3/8' rod diameter, 125 psi max pressure, and 120 Degrees F max temperature. Compatible with galvanized steel pipe check local codes for installation requirements.
Delivers immediate water flow in subzero temperatures and automatically drains when shut off and hose is removed
Large nitrile plunger provides reliable, positive shutoff
Graphite packing reduces wear and ensures smoother operation0
Adjustable link allows precise lever lock tension for secure operation
Designed for a 3 ft bury depth with a 72-1/2' overall length for standard installations
3/4" FNPT inlet and 3/4" hose outlet, plus a 1/8" NPT drain hole and lockable handle.
Durable materials include a cast iron head and handle with a galvanized steel rod and 1" galvanized casing.
3/8" rod diameter with a maximum pressure of 125 psi and maximum temperature of 120 Degrees F.
Compatible with galvanized steel pipe; check local codes for installation and compliance requirements.
