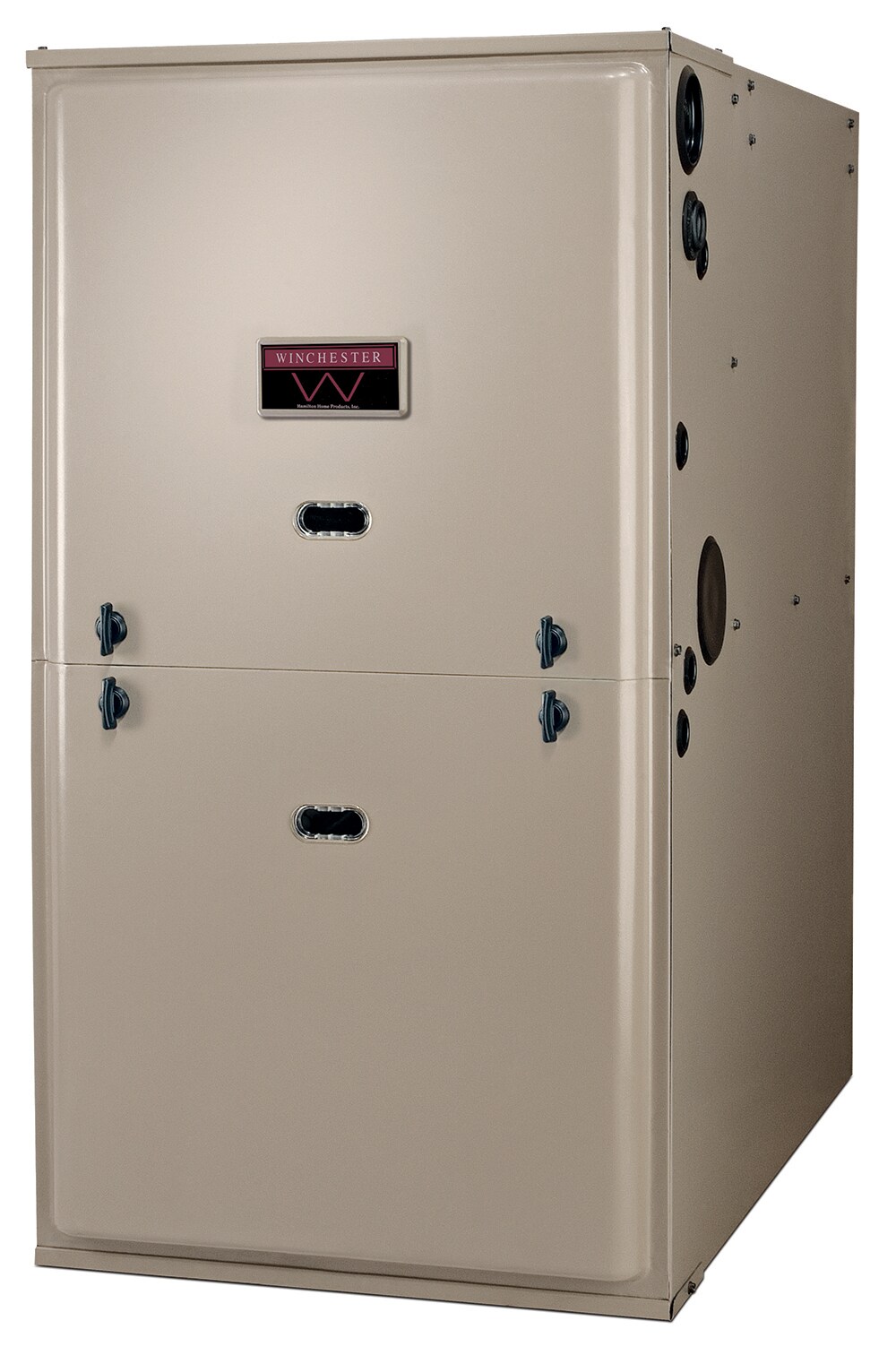

Ideal for new or replacement residential or commercial installations. The 80,000 BTU W9M series 95.5% efficiency multi-positional gas furnaces have a 33 in. tall cabinet and are designed for installation in up-flow, down-flow, and horizontal applications. These single stage, high efficiency furnaces are natural gas ready and convertible to propane (LP gas) with the optional LP 347 conversion kit. Factory shipped for installation in up-flow and horizontal applications and can be easily converted for down-flow applications. Certified for category IV venting and may be vented either through a side wall or roof applications using approved plastic pipe as allowed by the national fuel gas code. Features an electronic hot surface igniter for increased safety and efficiency, and adjustable speed maintenance free direct drive blower that never needs lubrication, and self diagnostic control module to monitor operation. The primary heat exchanger is constructed of tubular aluminized steel and has a stainless steel secondary heat exchanger. Units are factory assembled, wired and tested to assure safe dependable and economic installation and operation. Note: requires 1/2 in. input to gas valve, dedicated circuit breaker, and 120 Volt wiring with proper polarity and ground. 5 year limited parts warranty; lifetime limited heat exchanger warranty, 10 year heat exchanger warranty on commercial applications. Dimensions: 33 in. H x 17.5 in. W x 29.5 in. D. not certified for mobile home use.
The W9V series furnace can be installed in upflow or horizontal applications and can be easily converted for downflow applications
The compact cabinet height of only 33-in makes the unit perfect for basements, closets, attics, garages, and commercial applications
Natural gas ready, may be field converted to LP gas (propane) with optional conversion kit (LP 347)
The furnace is air conditioning ready with an ECM variable speed blower motor for maximum comfort and cooling SEER enhancement
All units are factory assembled, wired, and tested to assure safe, dependable, and economical operation
The condensing gas furnace may be installed as a single pipe system, using indoor air for combustion, or as a 2-pipe sealed combustion system, bringing in fresh outdoor air for combustion
Since the flue gases are at a much lower temperature, the furnace may be vented vertically or horizontally with schedule 40 PVC or ABS pipe
These furnaces are designed for both residential and commercial installations and make a great choice when replacing a furnace in a residence, apartment, or rental property
10-year limited parts warranty; lifetime limited heat exchanger warranty
