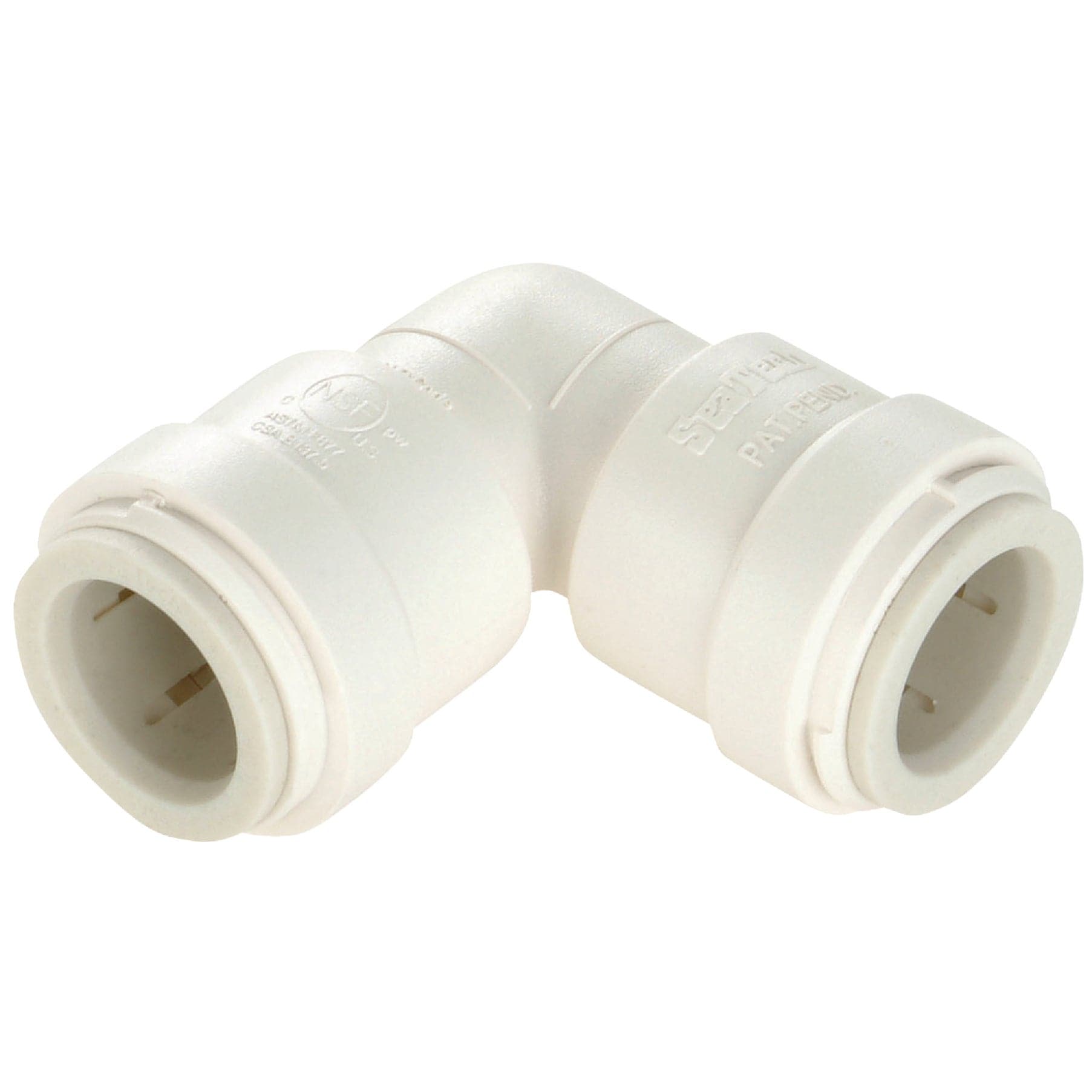

Watts SeaTech 3517-14 union elbow is a 90 push-to-connect fitting for 3/4 CTS tubing. Manufactured from off-white polysulfone with an EPDM O-ring, this compact elbow offers easy, tool-free installation and reliable sealing for potable water and general plumbing systems. Certified to NSF-61, NSF-14, CSA B137.5 and ASTM F877, and IAPMO certified and recognized by the Uniform Plumbing Code. Rated for a maximum working temperature of 180F at 100 psi and 75F at 250 psi. Manufacturer part number 351714 part of the SeaTech 35 Series and compatible with Watts part references 81902936, 003517-14, and 013517-14.
Compact package dimensions: 25 L x 24 W x 07 H inches
Package weight: approximately 01 lbs; single unit included
Single-piece 90 union elbow for 3/4 CTS tubi ng with push-to-connect fittings on all ends0
Constructed from off-white polysulfone with an EPDM O-ring for chemical and temperature resistance
Certified to NSF-61, NSF-14, CSA B1375 and ASTM F877; IAPMO certified and recognized by the Uniform Plumbing Code
Maximum working temperature: 180F at 100 psi and 75F at 250 psi.
Manufacturer part number 351714; also known as Watts 81902936, 003517-14, and 013517-14; part of the SeaTech 35 Series.
Length: 2.5 inches and angle: 90 degrees; designed for potable water and general plumbing applications.
Product type: HOSE PIPE FITTING; connection type: push-to-connect; variant diameter: 3/4 CTS on all ends.
