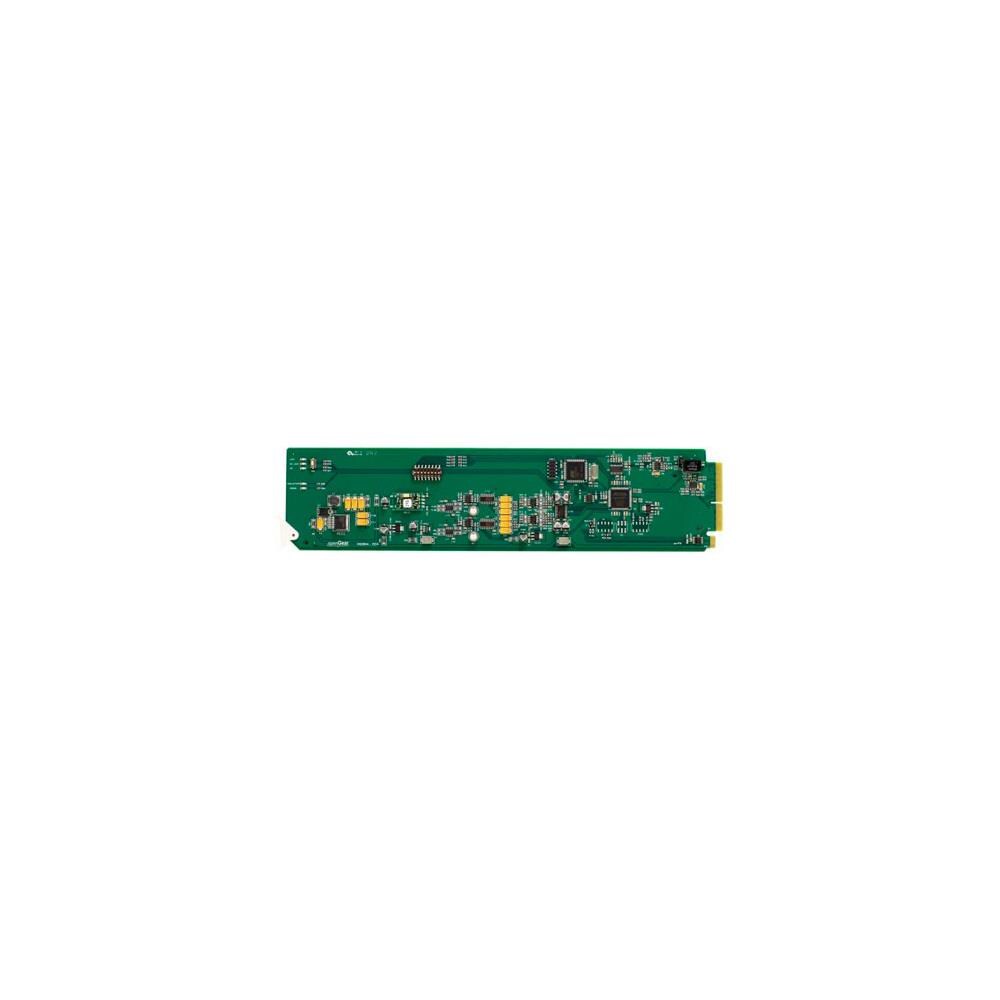

Ward-Beck Systems WARD-D6204A Open Gear AES-EBU Digital-to-Analog Audio Converter

The Ward-Beck D6204A is an AES/EBU digital to analog audio converter designed for broadcast Use. It provides Digital to analog audio Conversion along with AES/EBU signal distribution. When the D6204A is Used in combination with a T6302A rear termination module it provides 4 reclocked copies of the AES/EBU input signal as well as 2 copies of converted analog output.The D6204A supports audio sampling frequencies from 30kHz to 192 kHz. It converts the incoming AES/EBU digital audio signal to a stereo analog audio signal using 24 bit Conversion technology. Cable equalization and reclocking techniques enable the D6204A to recover the incoming digital audio signal reliably. The D6204A supports audio sampling frequencies from 30kHz to 192 kHz. It converts the incoming AES/EBU digital audio signal to a stereo analog audio signal using 24 bit Conversion technology. Cable equalization and reclocking techniques enable the D6204A to recover the incoming digital audio signal reliably. The D6204A is hoUsed in the openGear OG3-FR-C series frames and Can be configured and monitored through DashBoard.Rear module and frame Features AES/EBU digital to analog audio converter. Digital to analog audio Conversion along with AES/EBU signal distribution. Used in combination with T6302A, single card rear module, provides 4 copies of the AES/EBU input and 2 copies of converted analog output. High density applications 20 converters Used with T6204A, double card rear module supports audio sampling frequencies from 30kHz to 192 kHz. Converts the incoming AES/EBU digital audio signal to a stereo analog audio signal using 24 bit Conversion technology Cable equalization and reclocking. Specifications Input Voltage: 0.2-7 Vp-p Output Level: 1 V p-p nominal Sampling Frequency Range: 30 kHz to 192 kHz. Resolution: 24 Bit Maximum Output Level: Plus 24 dBu Frequency Response: Plus/-0.2 dB, 20 Hz to 20 kHz Stereo Separation: Better than 80dB, 20 Hz to 20 kHz. Noise( unweighted): 84 dBu ,20 Hz to 20 kHz
