Round Base Under Hoist Jack Stand, Provide Strong Support for Repairing Cars: The support capacity of the underhoist support stand is 3/4 ton/1653.5 lbs; The slender yet sturdy and durable support rod design provides the advantage of lightweight and easy operation at close range while being resistant to bending or deformation; It is a helpful tool for inspecting the underside of vehicles and performing professional exhaust repairs, shock absorber replacements, and other vehicle component maintenance tasks;; [Package Content] 1 x Underhoist Support Stand; 1 x 51106 Bearing; 1 x M14×65 Bolt; 1 x M14 Nut; 1 x M8×20 Bolt; 1 x Instruction Manual
This underhoist support stand can load 3/4-ton (1653.5 pounds)capacity, At least 2 stands are required for use
With sturdy tubular steel frame, A thickened 0.2" circular base and U-shaped tray
The rotation handle is equipped with thrust bearings, allowing for effortless and quick height adjustments, range: 52.8" - 76.0"

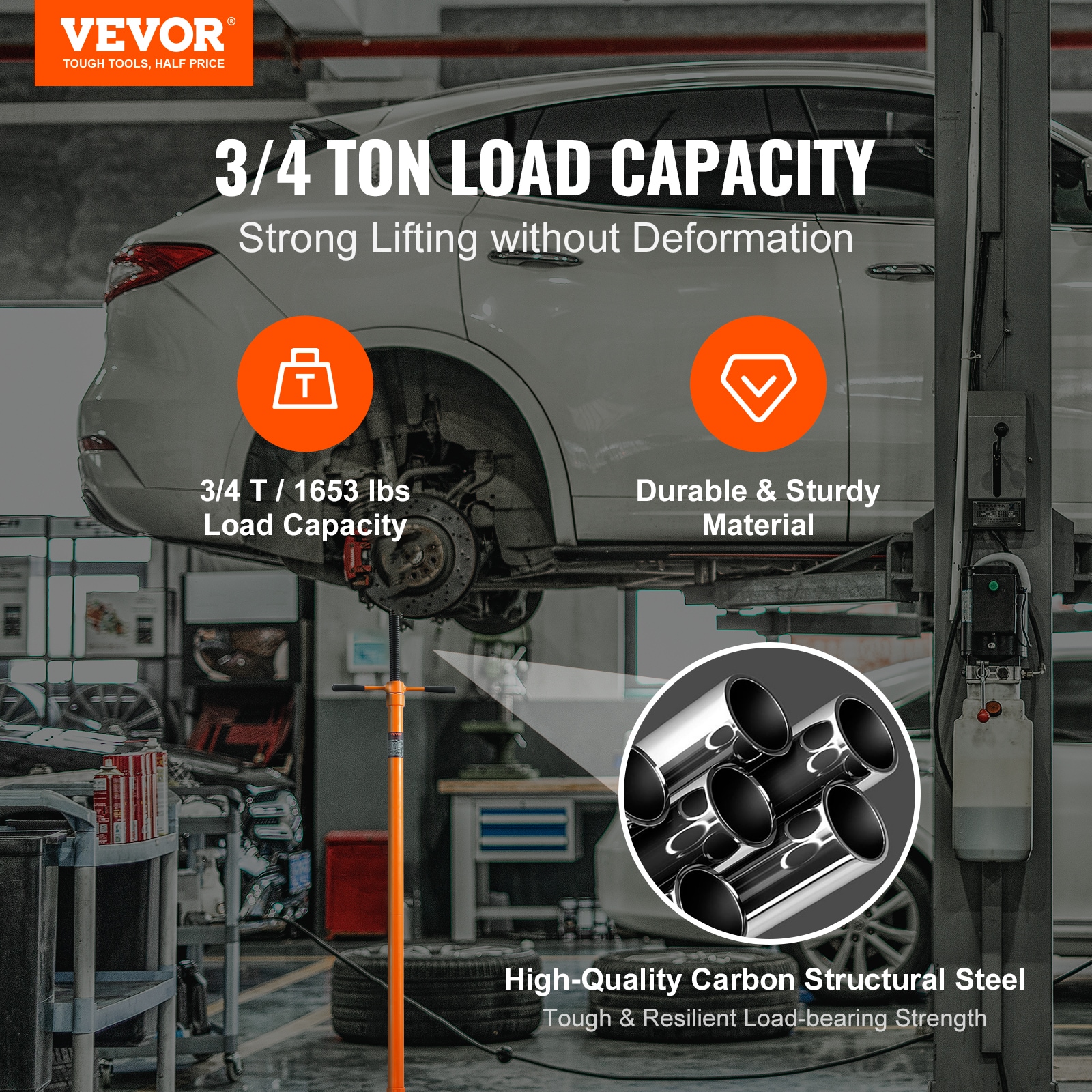

1653.5 lbs Impressive Load Capacity: This underhoist support stand can support a weight of 1653.5 lbs / 0.75 tons; The sturdy tubular steel frame helps prevent deformation or twisting; At least 2 stands are required for use and can support most small cars and similar vehicles;

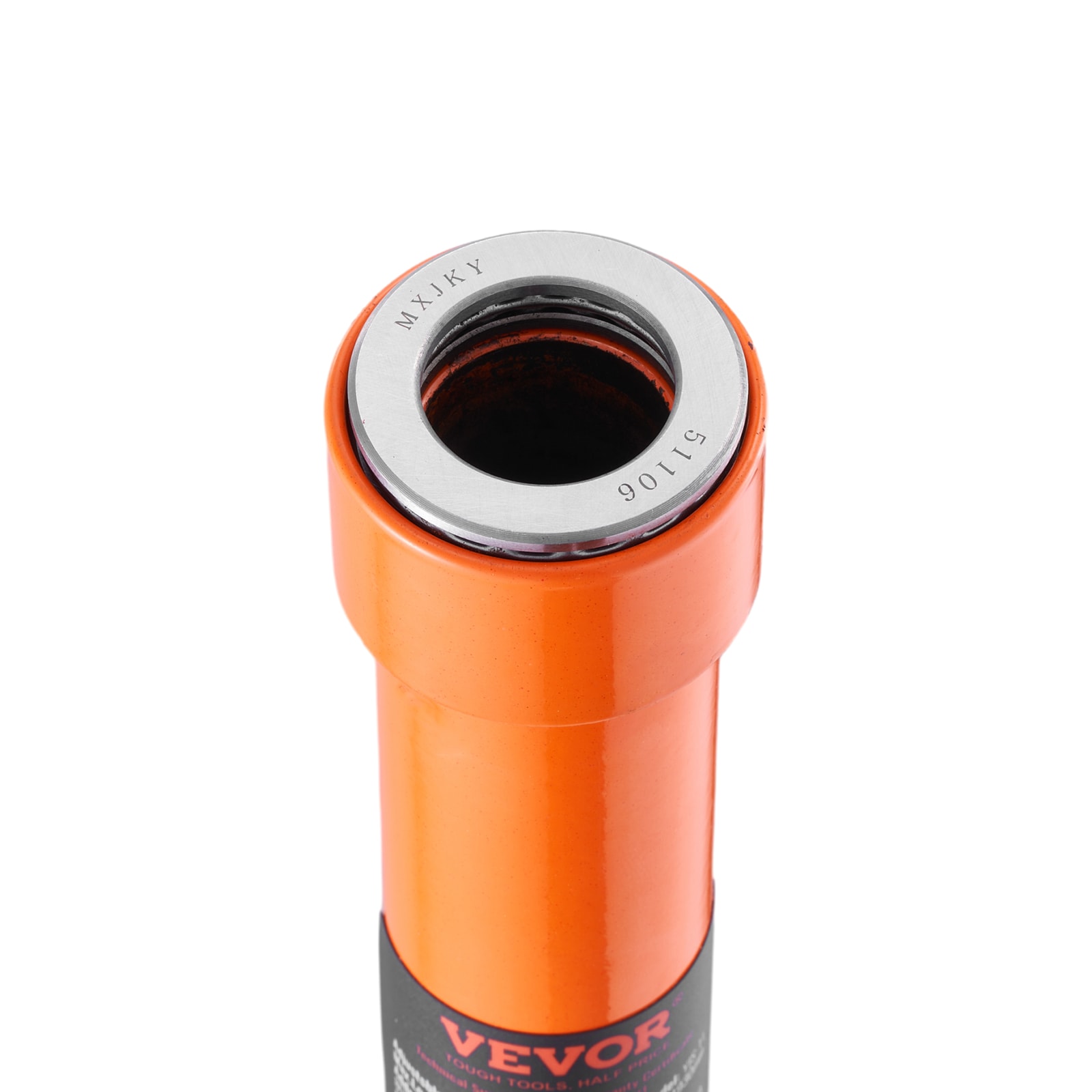

Bearing Mounted Spin Handle: The spin handle of the jack stand incorporates a thrust bearing, making it easy to raise and lower, even under the extreme pressures of a heavy load; The height adjustment range is 52.8" - 76.0" / 1340 - 1930 mm, catering to the bottom clearance requirements during most maintenance tasks;

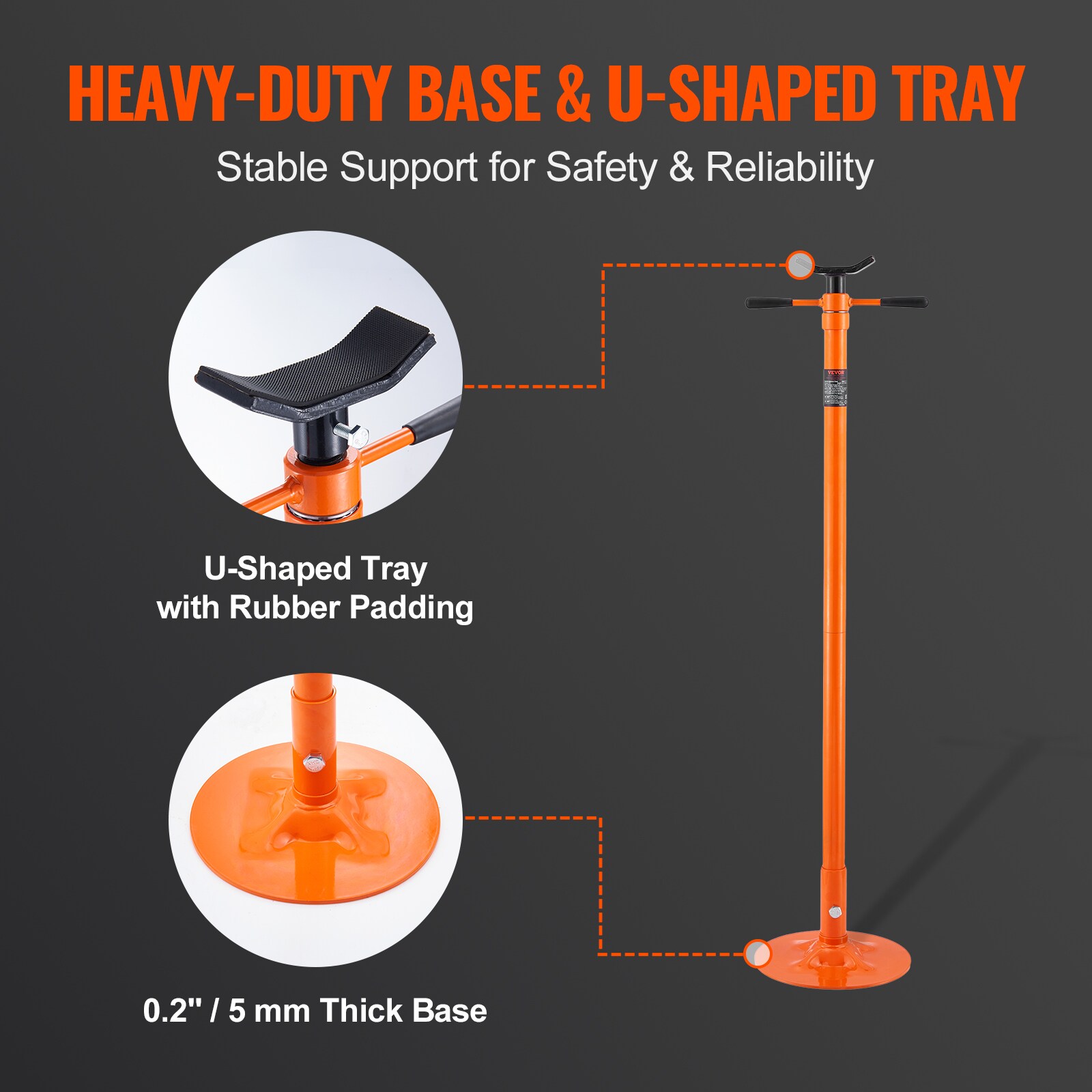

Safety and Stability: A 0.2" / 5 mm thick circular base enhances load stability, while the U-shaped tray with rubber padding provides secure, non-slip support without causing damage; This design of our hoist stand ensures a firm and stable hold, preventing the vehicle from wobbling;

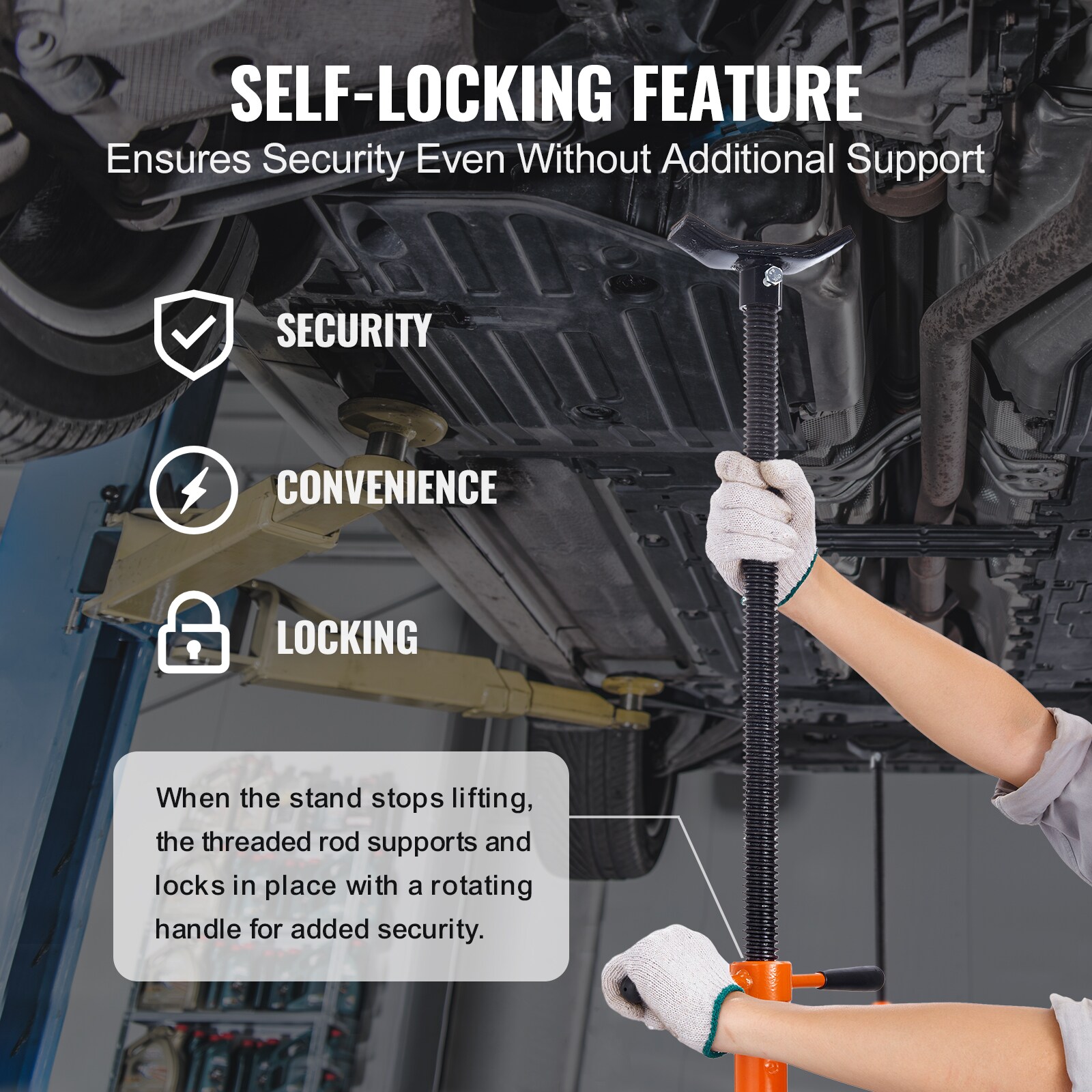

Self-Locking Feature for Easy Operation: The threaded screw rod provides a self-locking function to prevent the stand from lowering without assistance; Adjusting the under hoist jack stand under the vehicle is also very safe; The rubber handle provides a comfortable grip;

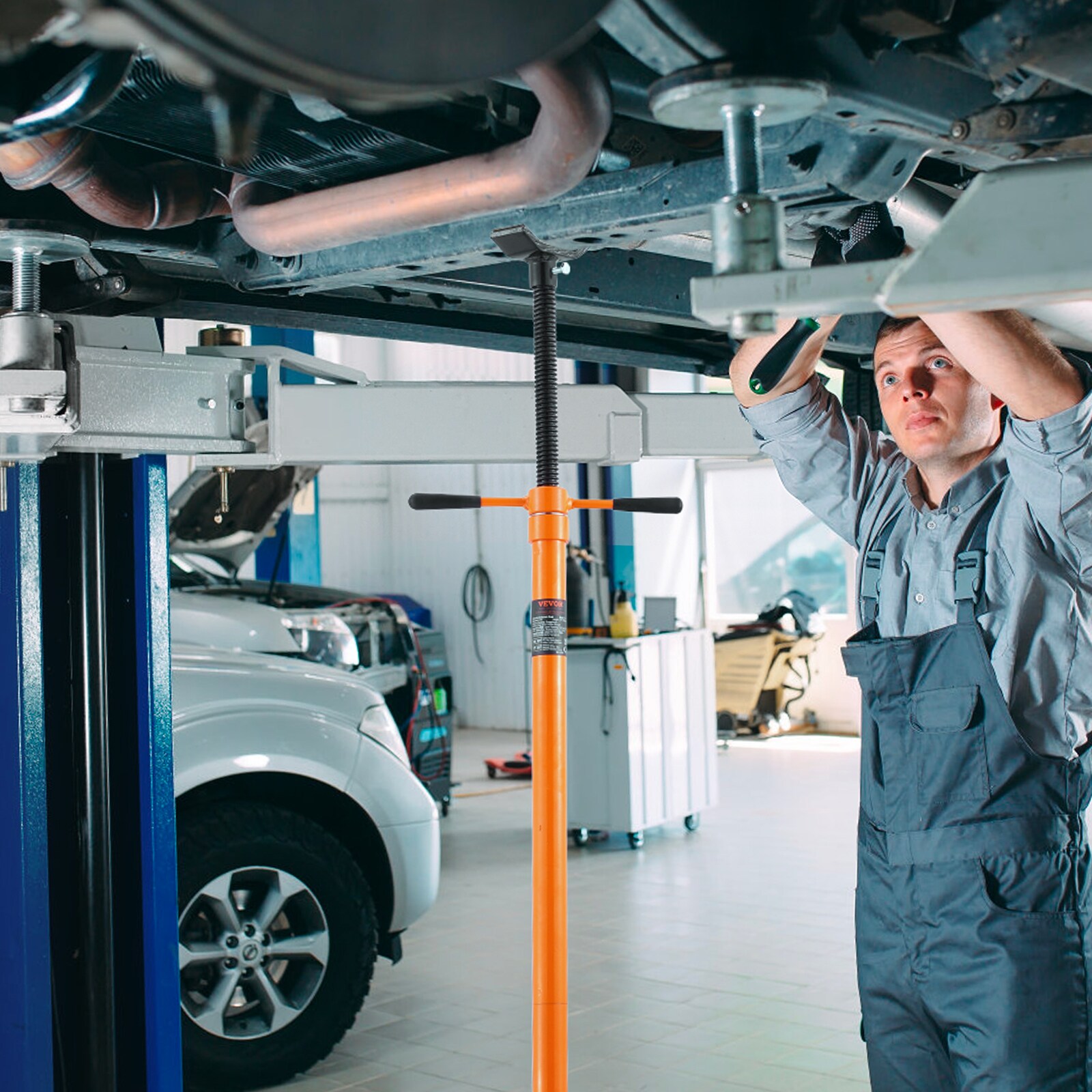

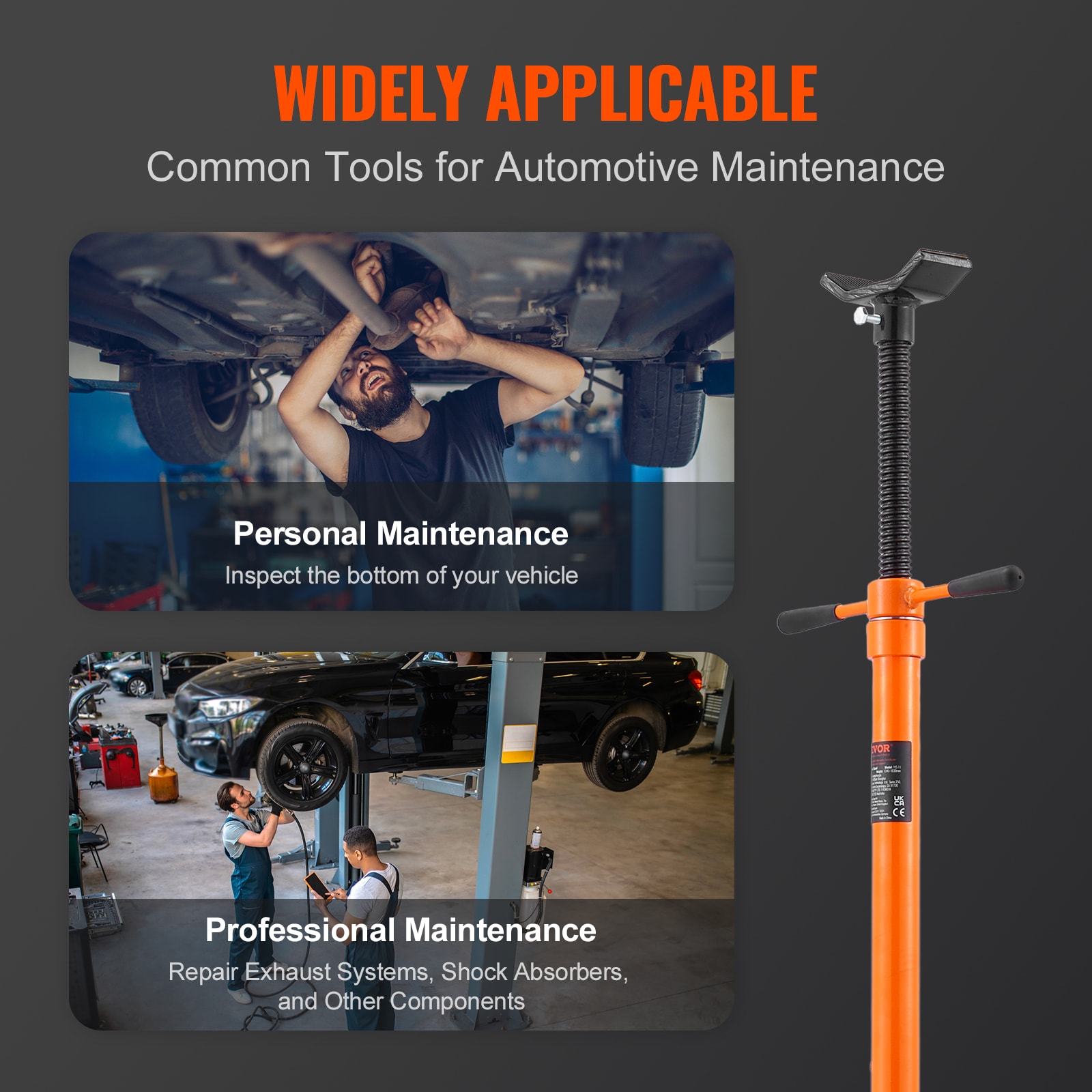

Versatile Applications: The screw jack provides partial support for positioning vehicle components during installation and removal processes; It provides technicians with added height assistance when working on components such as transmissions, CV joints, radiators, drive shafts, exhaust systems, and catalytic converters, among others;

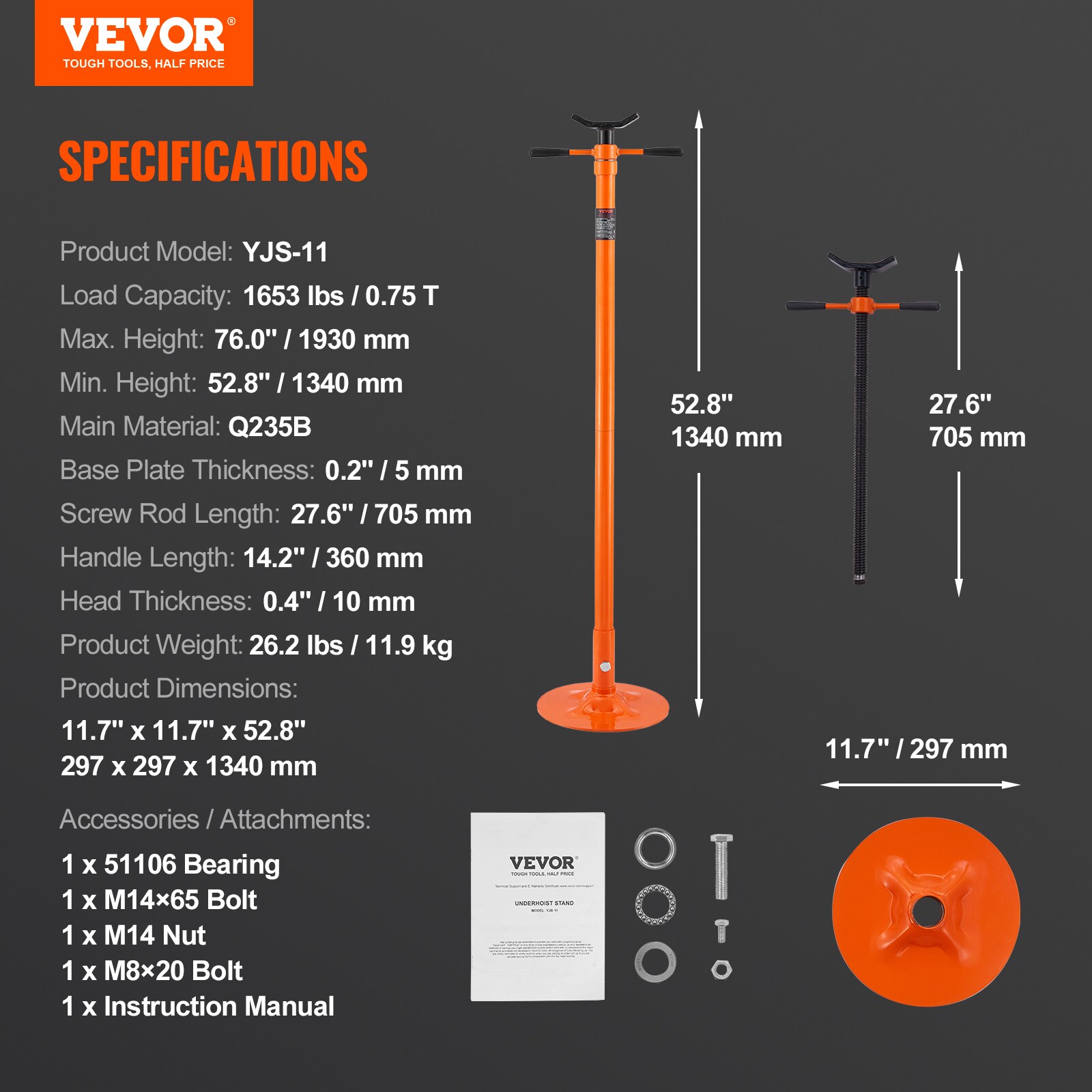

Specification: Item Model Number: YJS-11; Load Capacity: 1653.5 lbs / 0.75 t; Max; Height: 76.0" / 1930 mm; Min; Height: 52.8" / 1340 mm; Main Material: Q235B; Base Plate Thickness: 0.2" / 5 mm; Screw Rod Length: 27.6" / 705 mm; Handle Length: 14.2" / 360 mm; Head Thickness: 0.4" / 10 mm; Product Weight: 26.2 lbs / 11.9 kg; Product Dimensions: 11.7" x 11.7" x 52.8" / 297 x 297 x 1340 mm
