The PTO shaft delivers reliable power to PTO-driven equipment and is widely utilized with mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, tractors, and similar machinery.

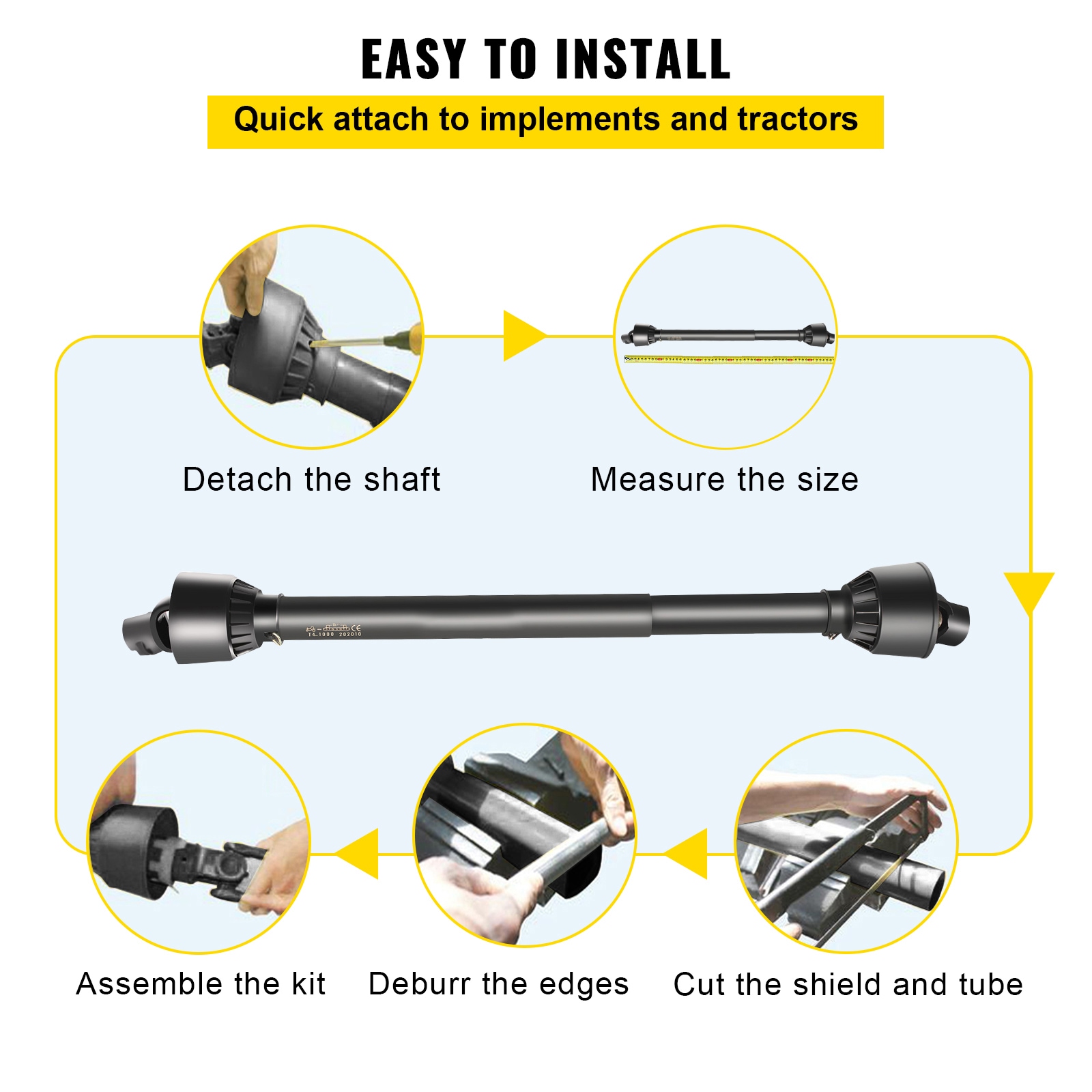

This PTO shaft is designed for seamless connection between tractors and implement ends;For adjustments to achieve the desired length, refer to the user manual thoroughly and ensure the edges are smoothed after trimming.

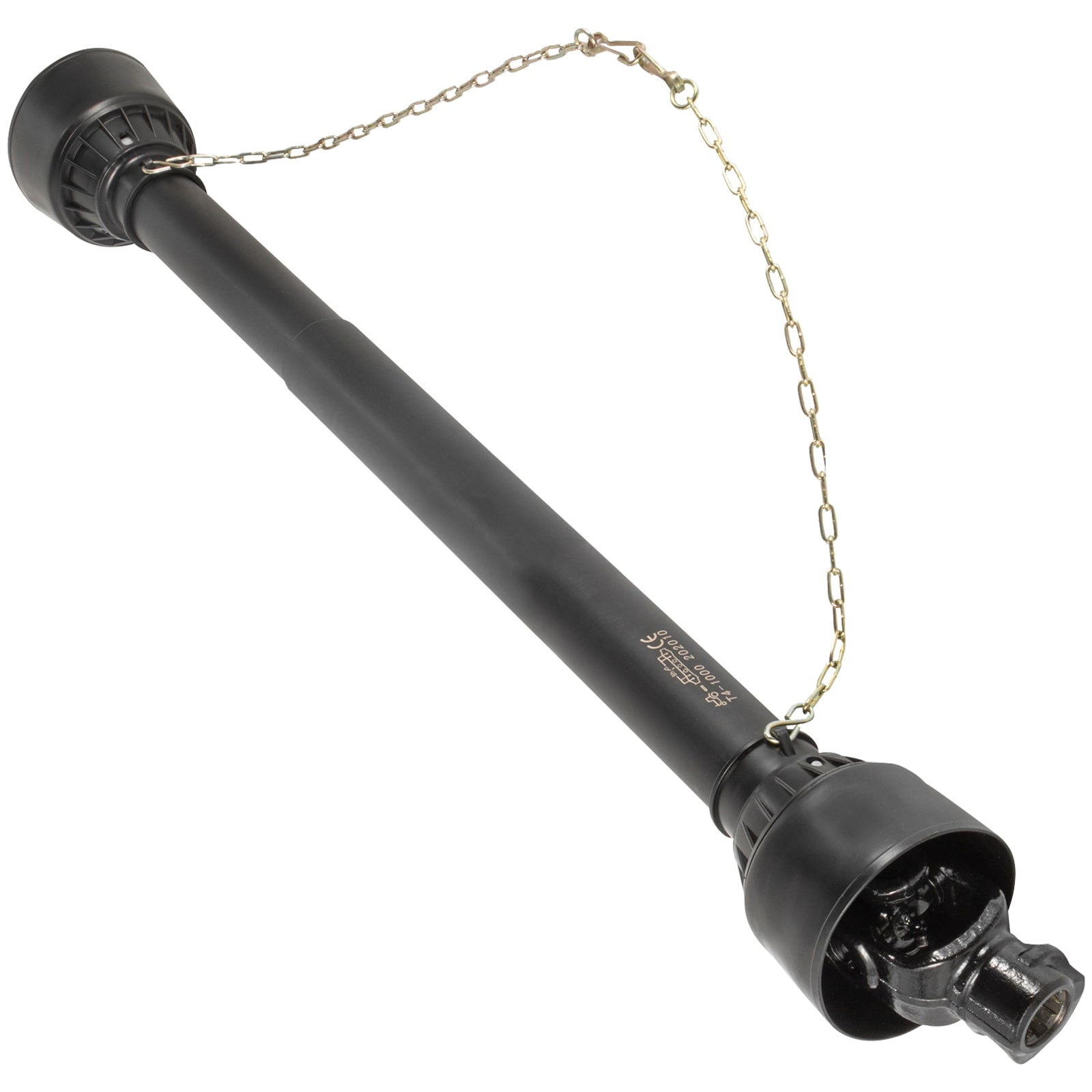

This PTO shaft features a well-designed compact structure that includes a telescoping tube, universal joint, yokes, a protective plastic shield, and a safety chain;It supports dual-speed operation at both ends, efficiently transmitting power to connected equipment.
Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification; It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield; The PTO shaft is durable and robust when working with various agricultural machinery;
6 Spline ＆ Round Ends: Tractor end: 1 3/8" x 6-spline; implement end: 1 3/8" x round end; Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery; Your machinery will be running like never before;
Adjustable Length: Compressed Length: 51" / 1300 mm; Extended Overall Length: 74" / 1900 mm; The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes; It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque; It allows two sides of the PTO drive line shaft to spin at different speeds;
Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement; The security chain and sturdy shield eliminate potential dangers in the transmission process;
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment; It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and more; Control the speed and power of your machine effectively; Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner;

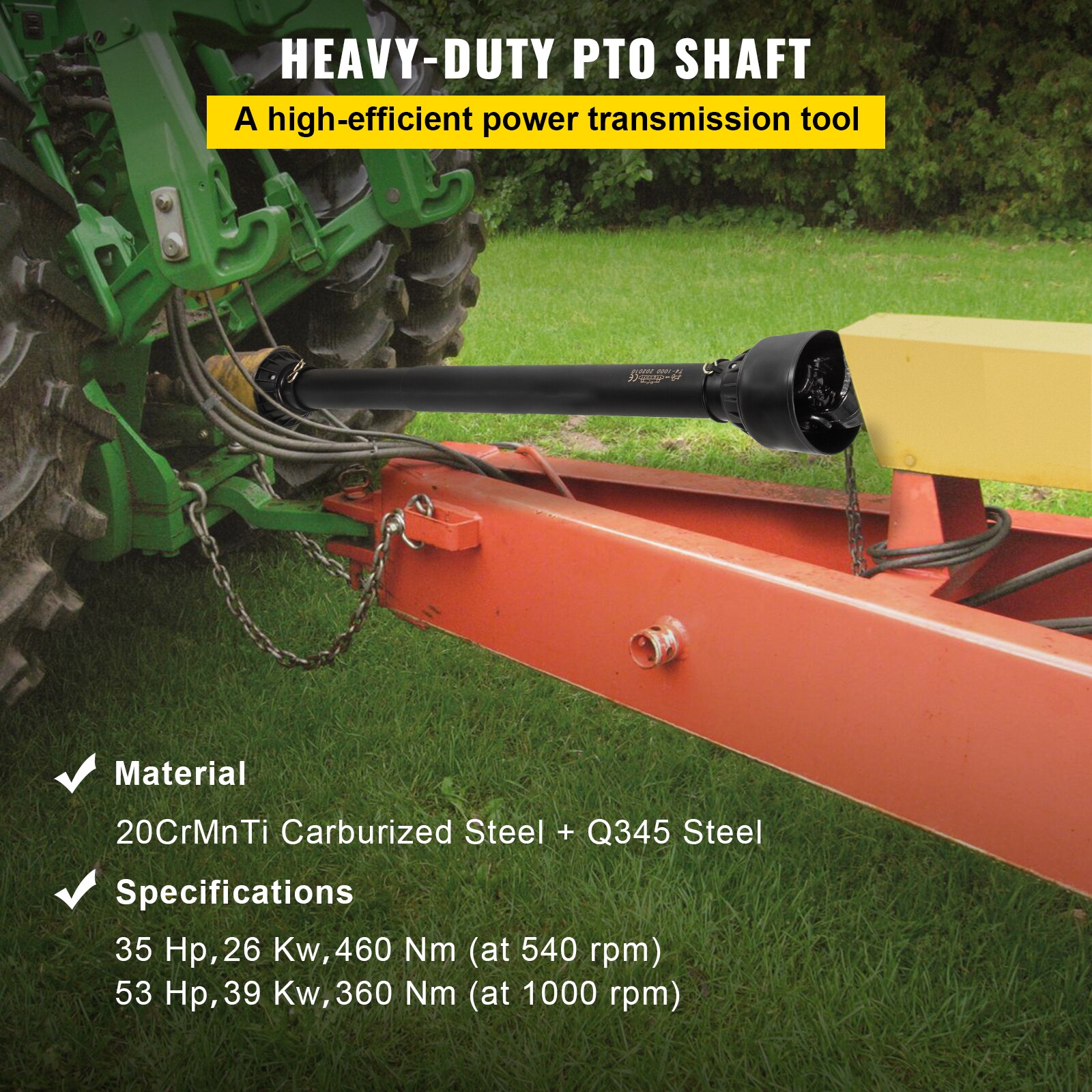

Specification: Model: T4-BⅢP*1300mm*4.05.05B*4.05;A35; Part Type: PTO Drive Shaft; Series: 4; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 7 Spline; Implement End: 1-3/8" x Round End; Compressed Length: 51" / 1300 mm; Extended Overall Length: 74" / 1900 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000RPM: 53hp, 39Kw, 360Nm; Color: Black
