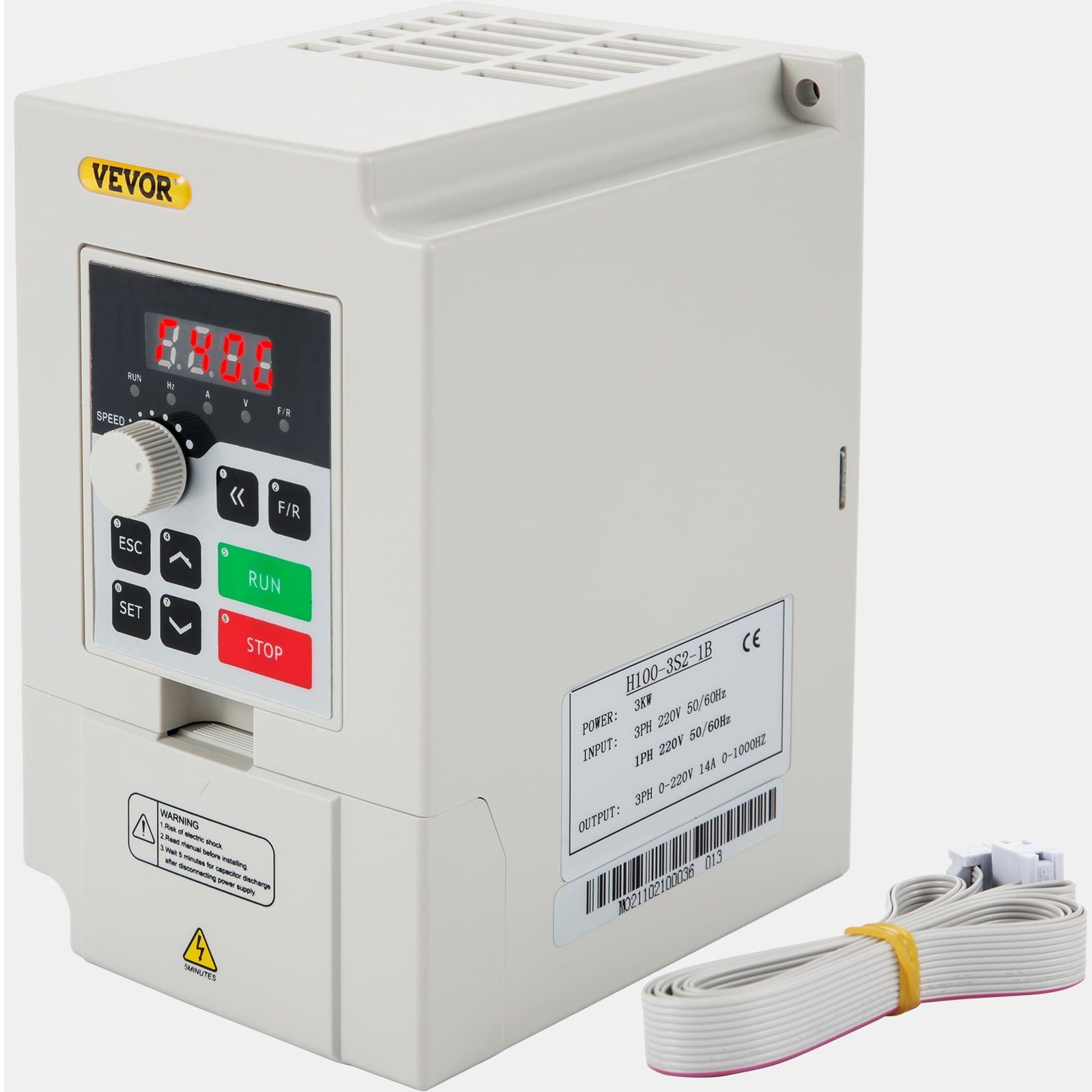

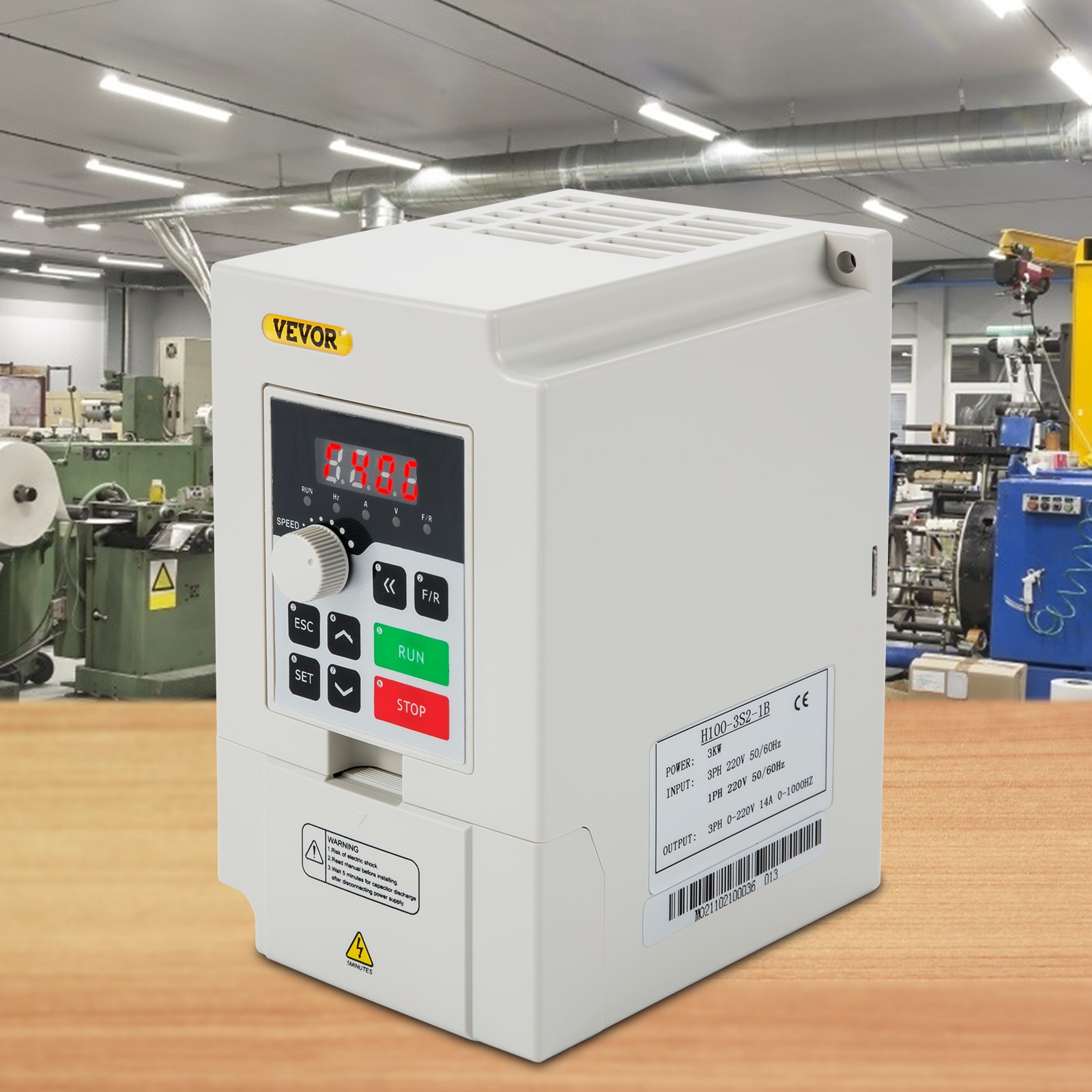

This variable frequency drive has a 1 or 3 phase input and 3 phase output; Control mode: V/F control and vector control; Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc;

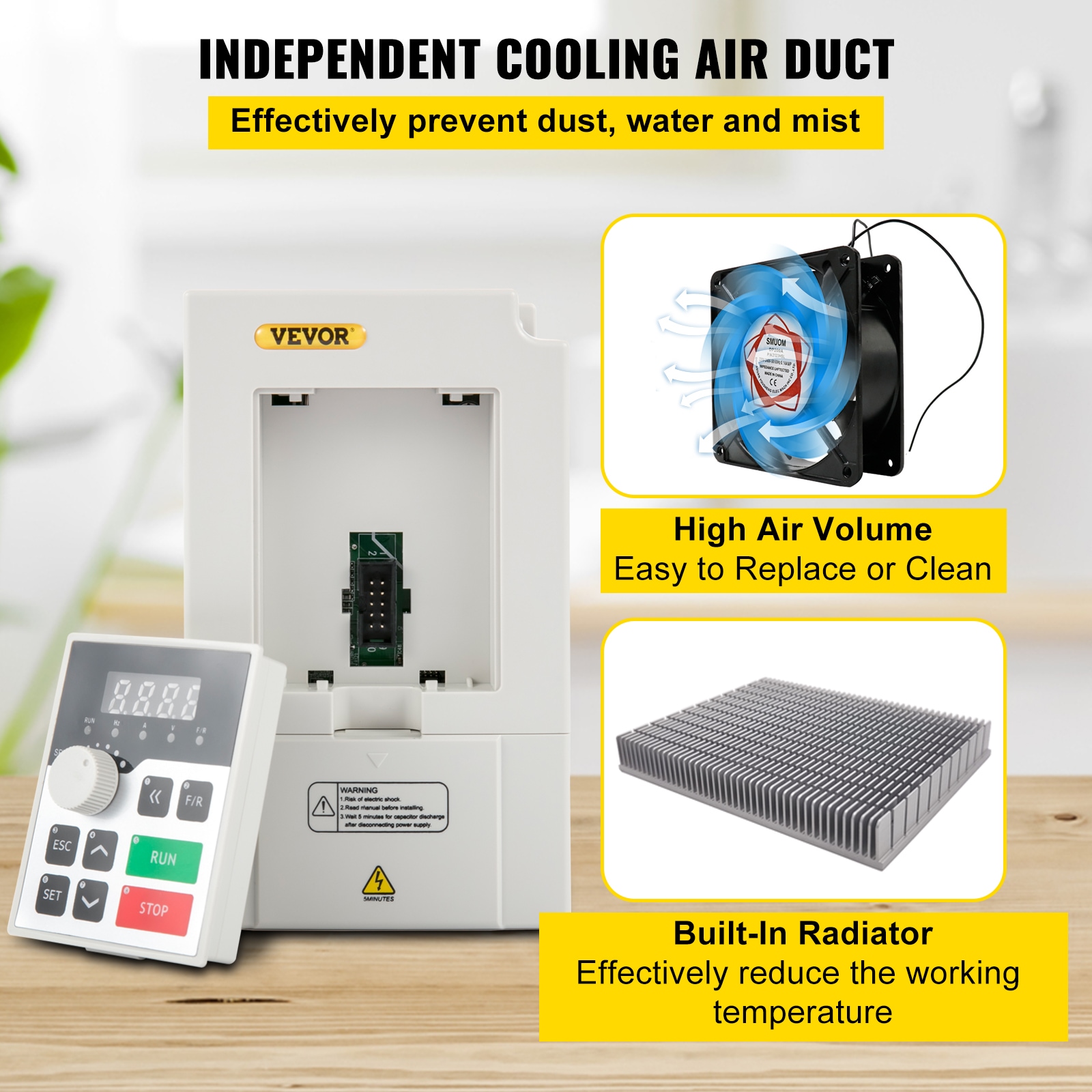

The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design; There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life;

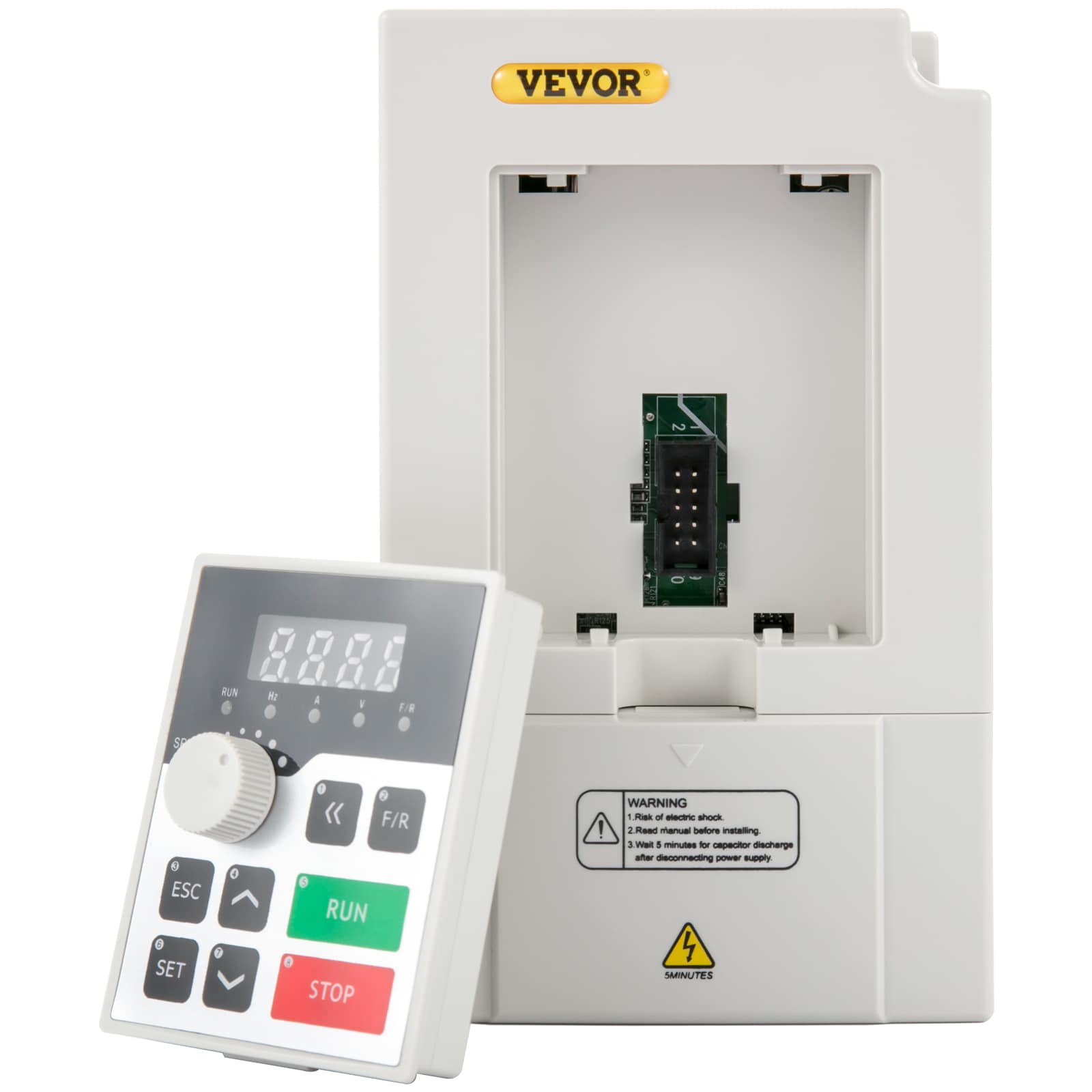

The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear; The detachable design is convenient for remote control;

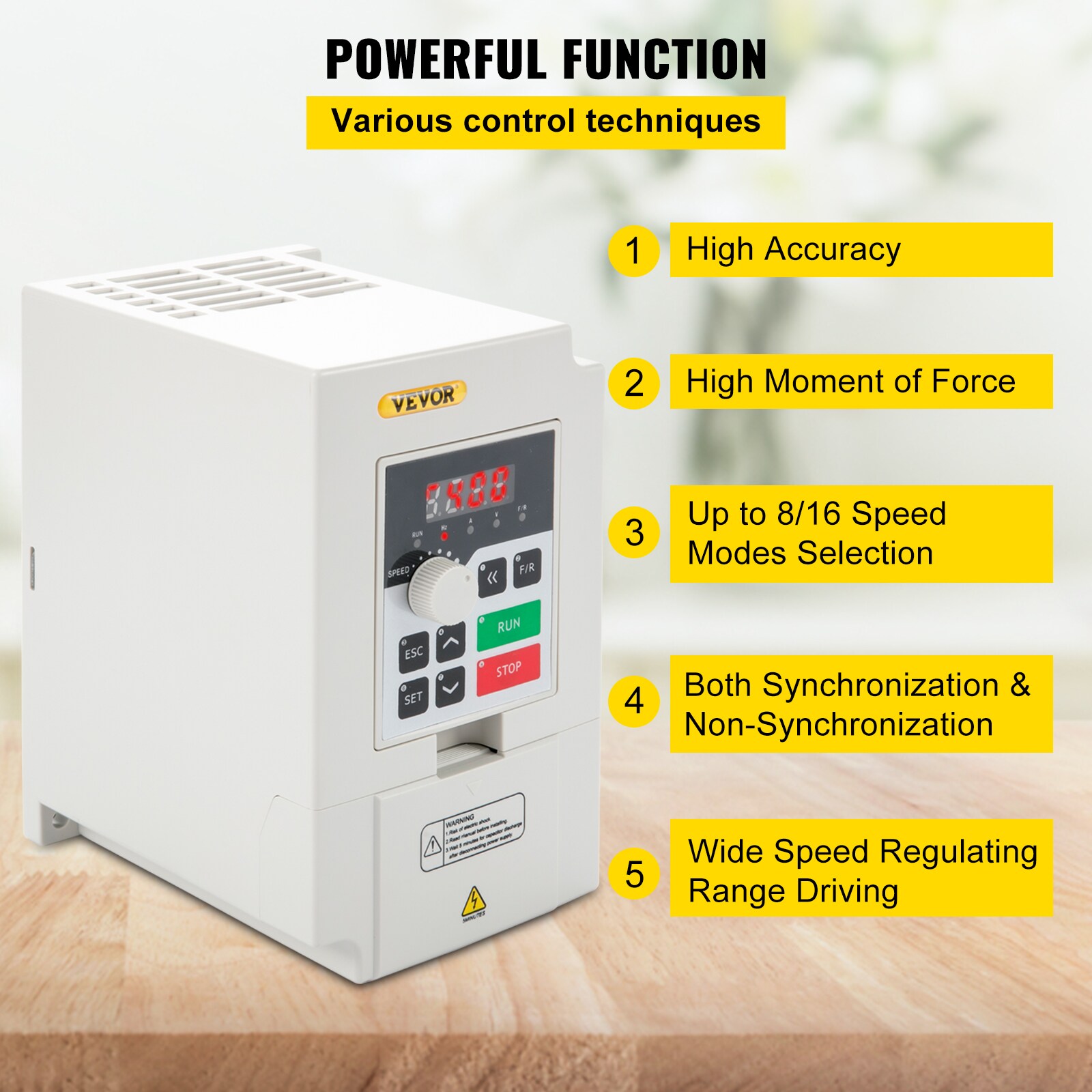

Powerful Function: Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc; Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes;
Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design;
Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear;

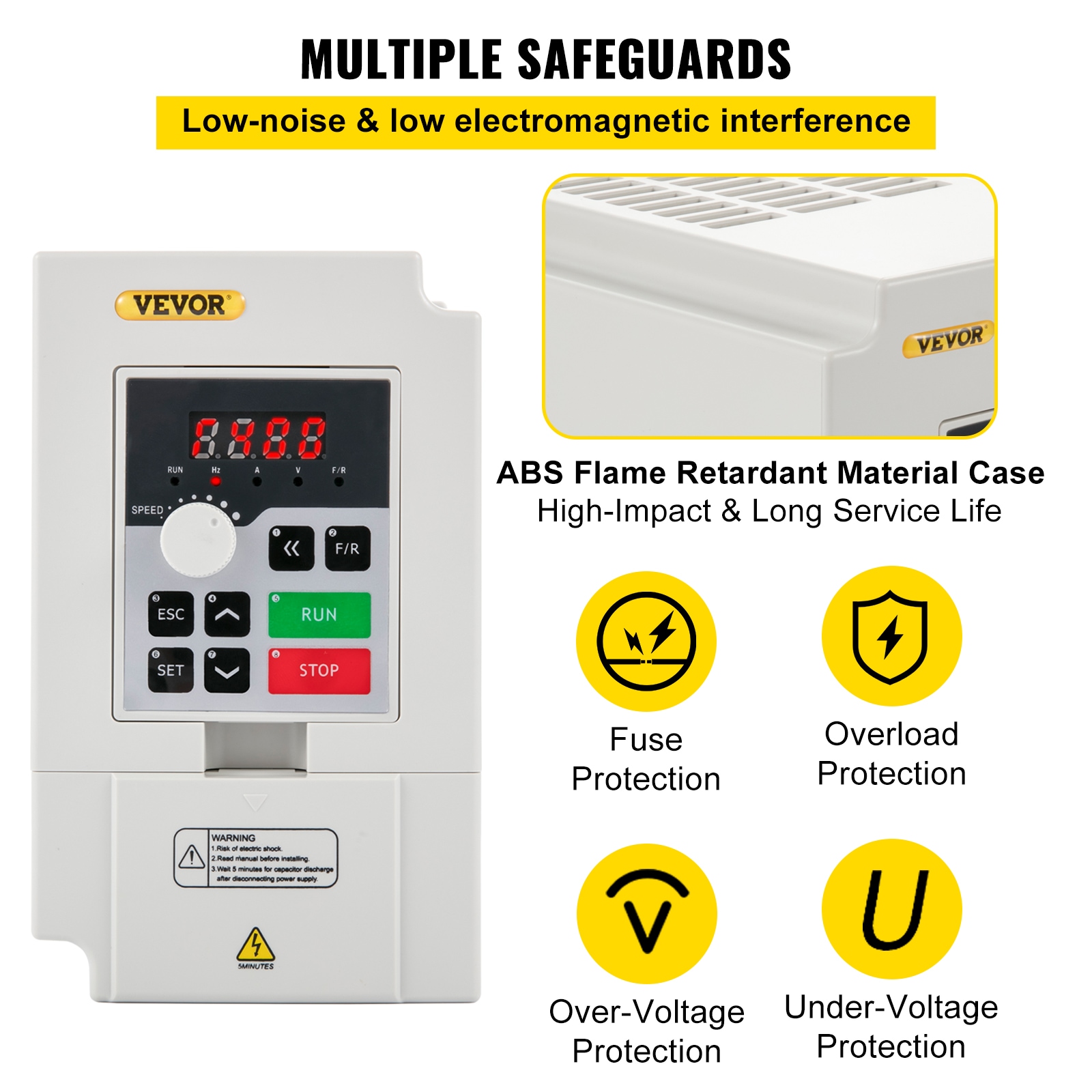

Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter; Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection;

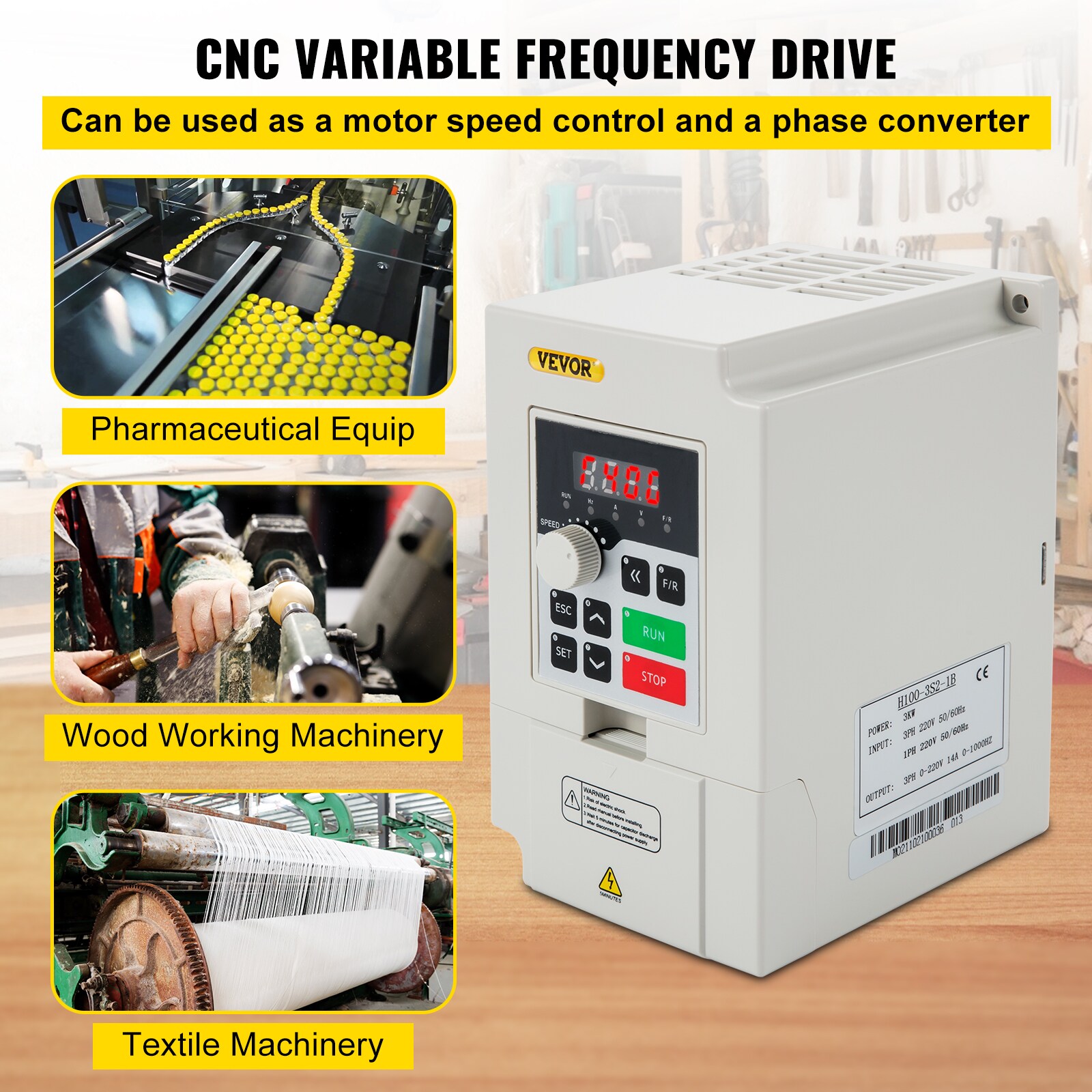

Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor; Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc;

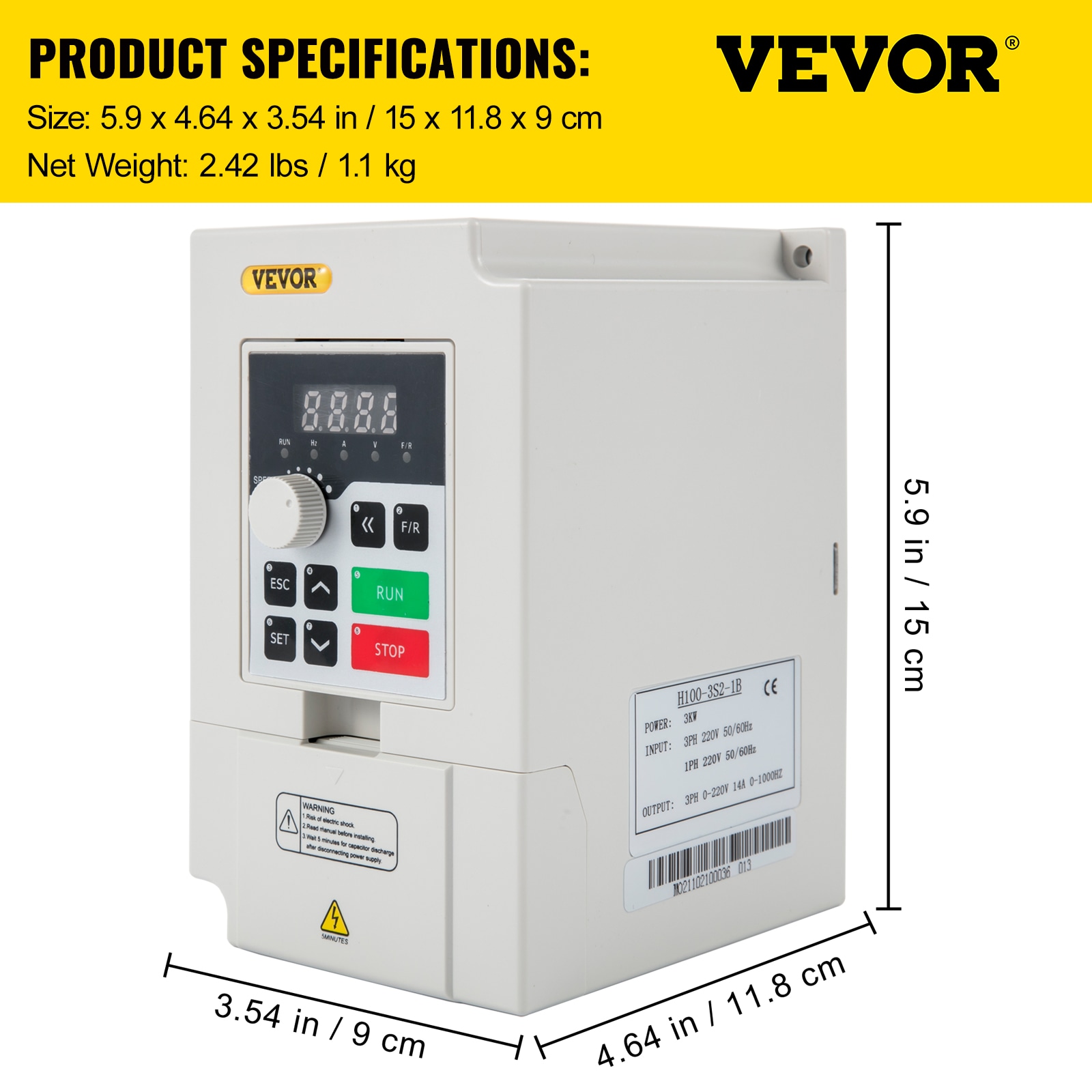

Specification: Model: H100-3S2-1B; Power: 3 kW; Input Voltage: 220V; Output Voltage: 0-220V; Input Current: 0-14A; Output Current: 0-14A; Input Phase: 1 or 3 Phase; Output Phase: 3 Phase; Input Frequency: 50/60 Hz; Output Frequency: 0-1000 Hz; Horsepower: 4 HP; Working Temperature: 23~104 degrees Fahrenheit/-5 ~ 40 degrees Celsius; Humidity: 0-90% Relative Humidity (without dew); Vibration: Below 0.5 G; Net Weight: 2.43 lbs / 1.1 kg; Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
