Crafted from HT250 cast iron, this rotary table offers exceptional wear resistance and high hardness, ensuring that it performs reliably over time; It’s ideal for precision machining in both industrial and DIY settings.
This rotary table boasts a finely etched scale for easy angle adjustments, and a 1:36 worm gear ratio that allows precise control over every rotation; The degree lock ensures your set angle stays fixed during operation.
Our 4-inch (100 mm) rotary table is perfectly suited for smaller milling machines and specialized equipment, delivering high-accuracy cuts and making intricate dividing tasks effortless for all your projects.

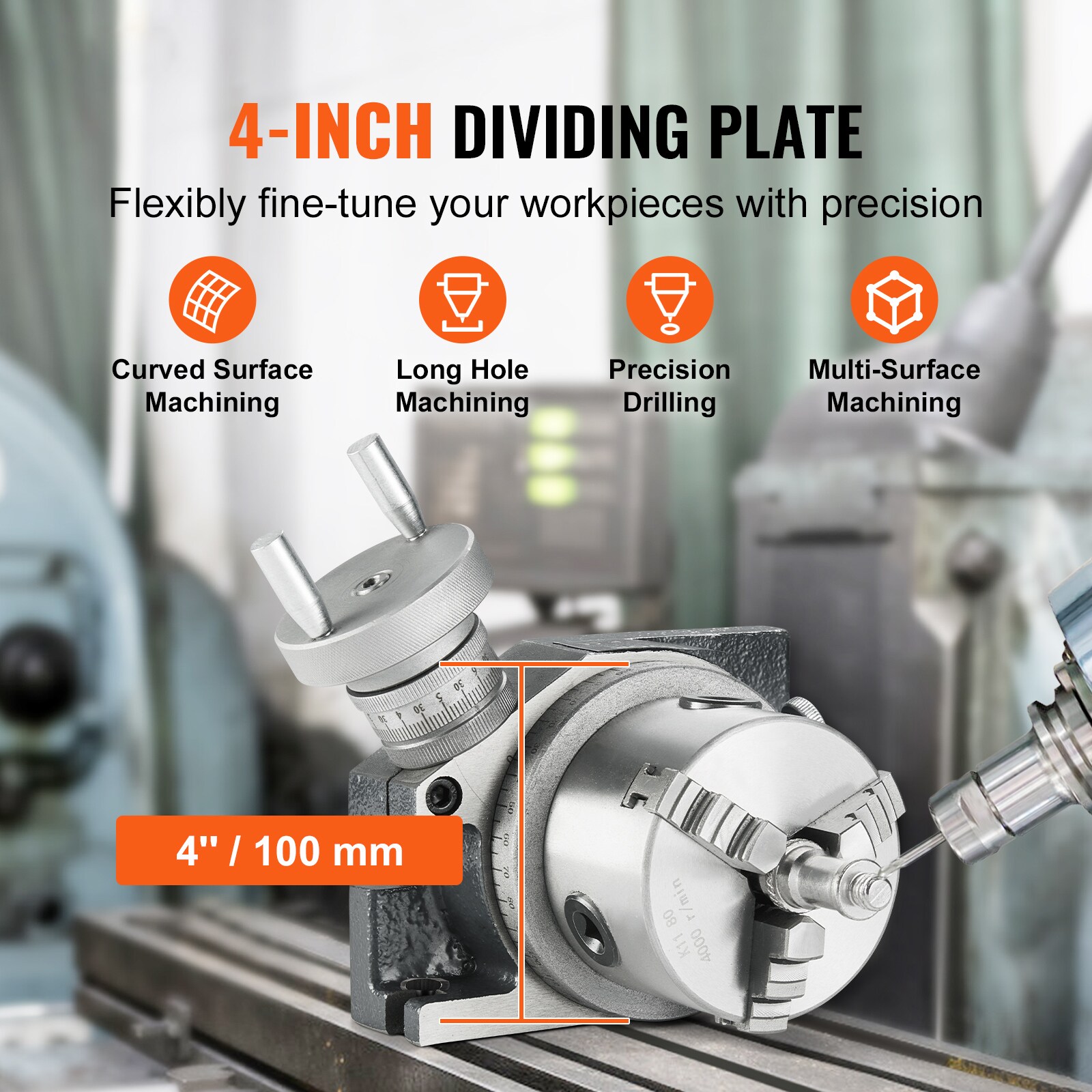

4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines; It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling; Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing;
Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces; Chuck Diameter: φ 3.1'' / 80 mm; The internal jaw can be used for internal & external clamping; External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm; It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm; Enjoy the precise and secure machining of small components!

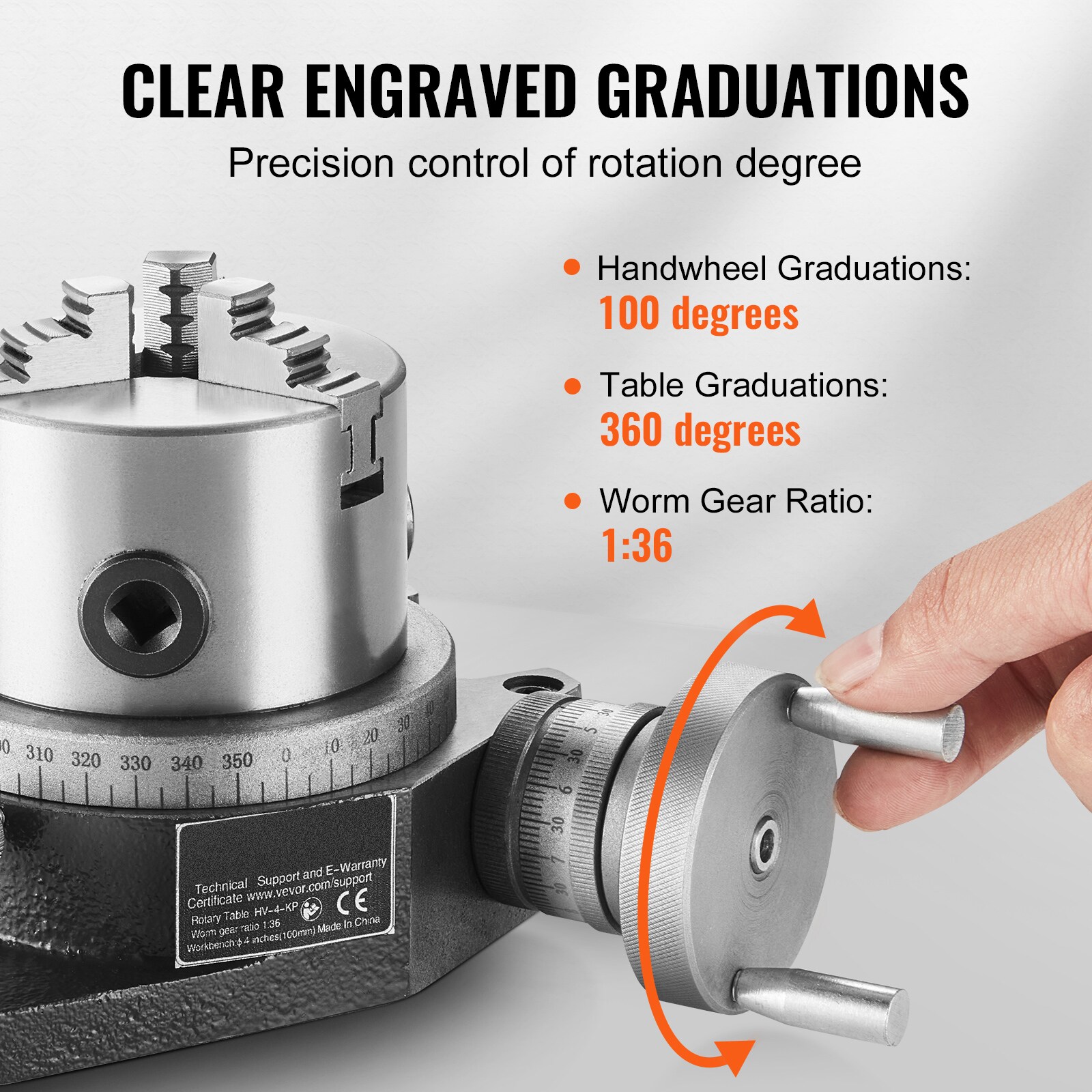

High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements; The handwheel scale number is 100, while the table itself is marked with 360 degrees; With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation;
Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm; Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights; Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine;
Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan; Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability; Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations;
Specification: Item Model Number: HV-4-KP; Table Diameter: 4 in / 100 mm, ±2 mm; Top Height for Horizontal Mounting Chuck: 4.7 in / 120 mm, ±3 mm; Center Height for Vertical Mounting Chuck: 2 in / 50 mm; Rotary Table Handwheel Scale Value: 6'; Rotary Table Handwheel Scale Number: 100; With or Without Vernier Scale: No; Worm Gear Ratio: 1:36; Chuck Diameter: φ 3.1 in / 80 mm; Net Weight: 11.7 lbs / 5.3 kg ± 3%; Product Dimensions: 6.3 x 5.8 x 4.7 in / 160 × 148 × 120 mm
