SBR Linear Guide Rail: VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks; The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement; Multiple specifications are available to fit your needs;; [Package Content] 2 x SBR16 1500mm Linear Guide Rails with Supports; 4 x SBR16UU Sliding Blocks
SBR16-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR16 guide rails and 4 x SBR16UU slide blocks.
The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability.
Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired.
SBR Linear Guide Rail Set: SBR16-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR16 guide rails and 4 x SBR16UU slide blocks;
Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability; Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding;

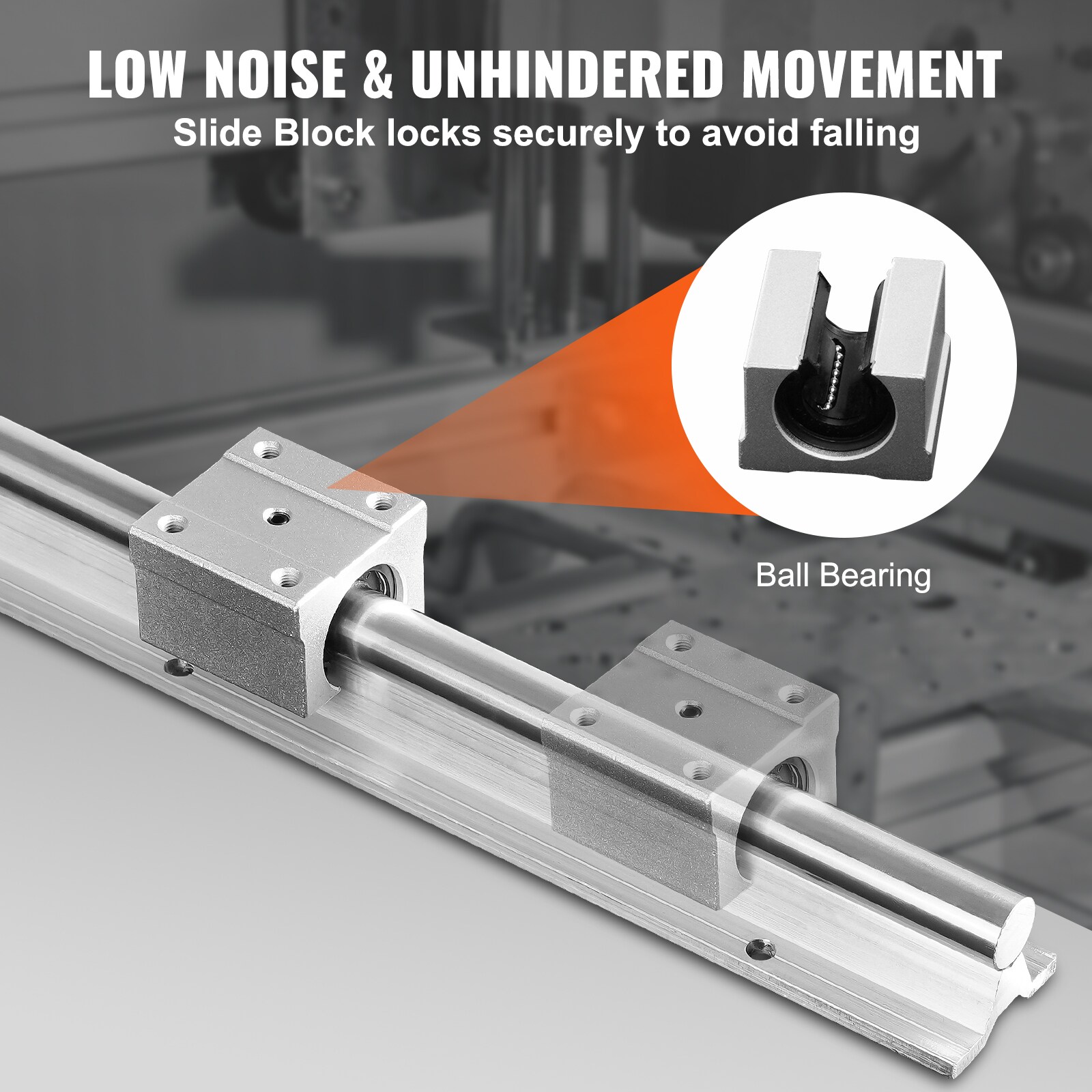

Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired; The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving;

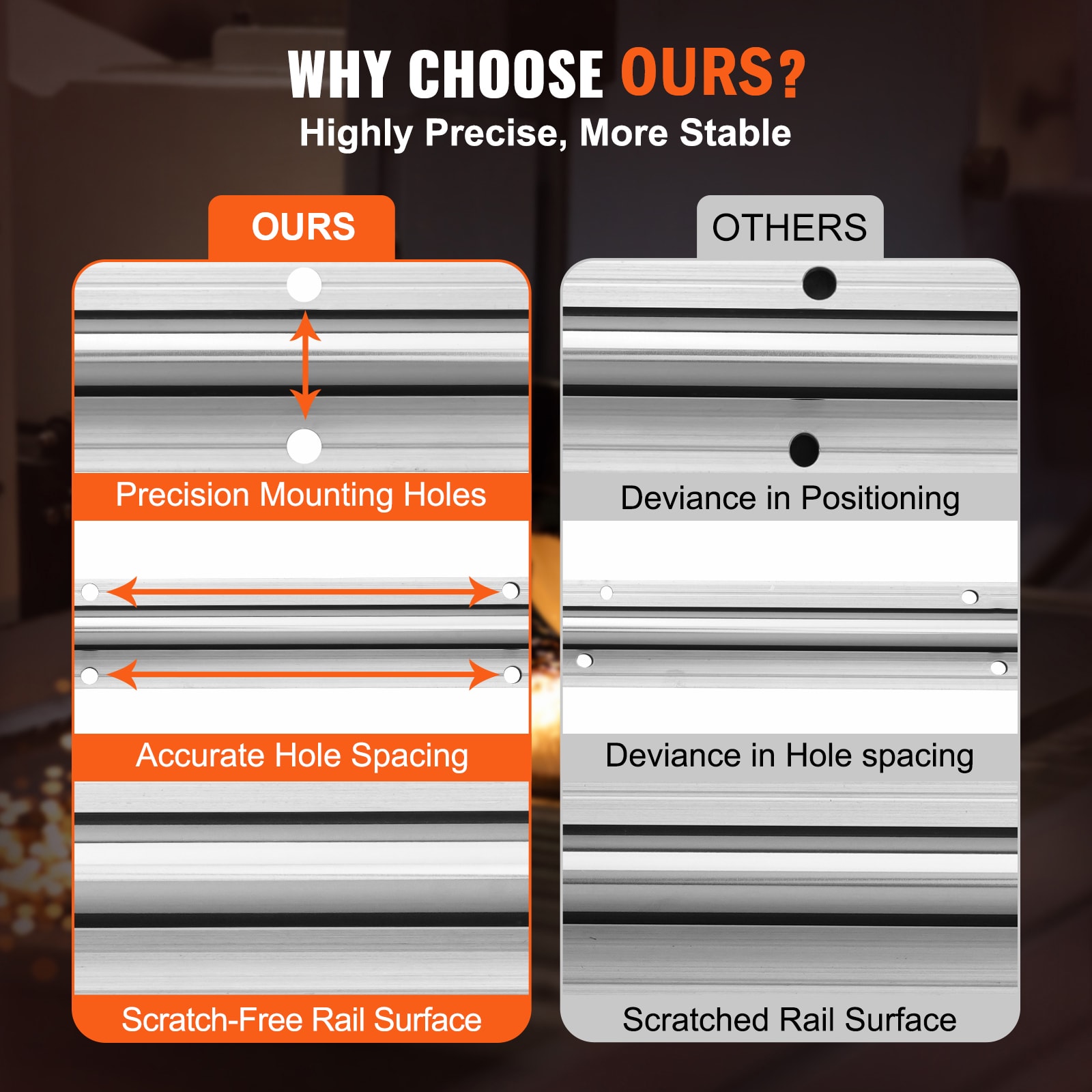

High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion; The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection;

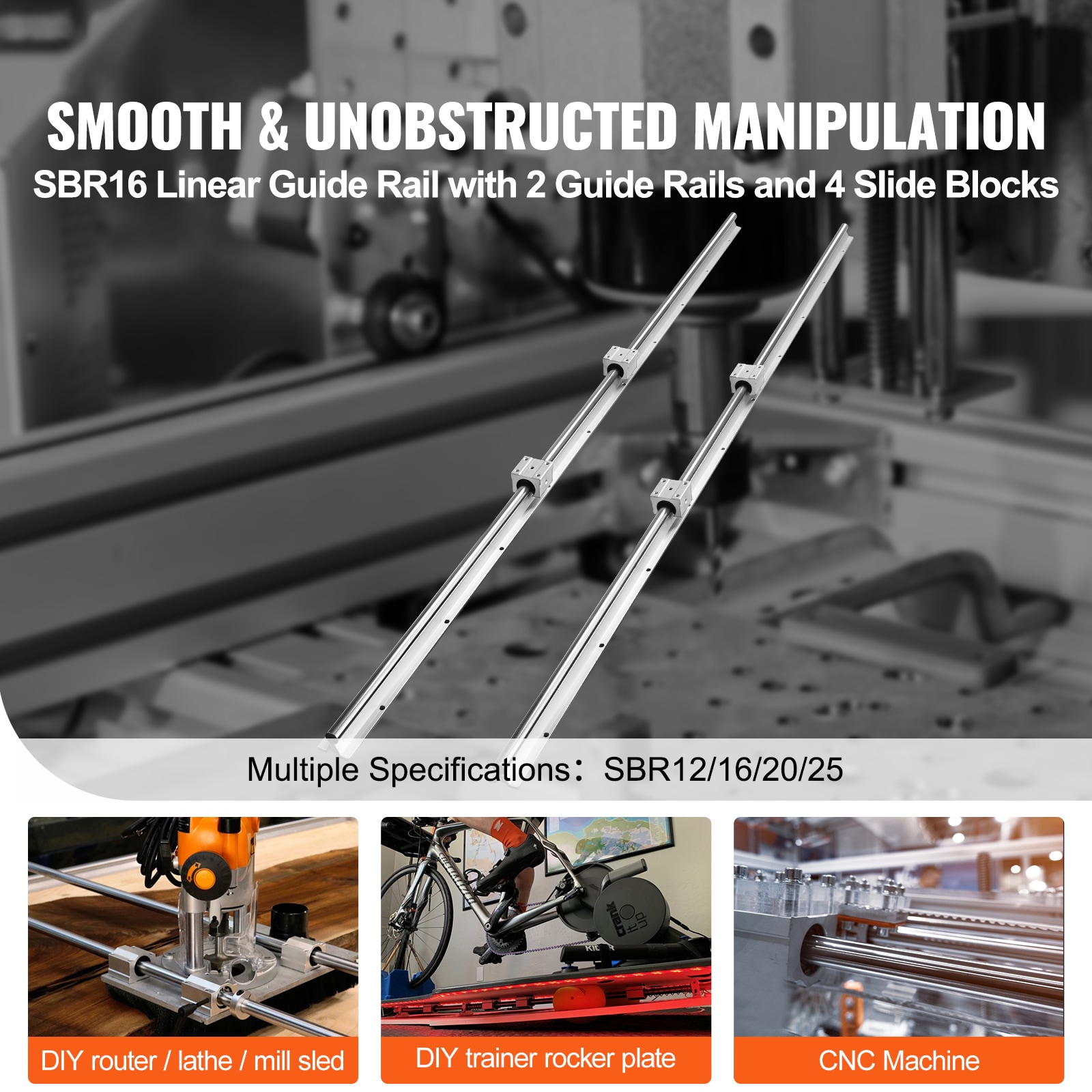

Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc;

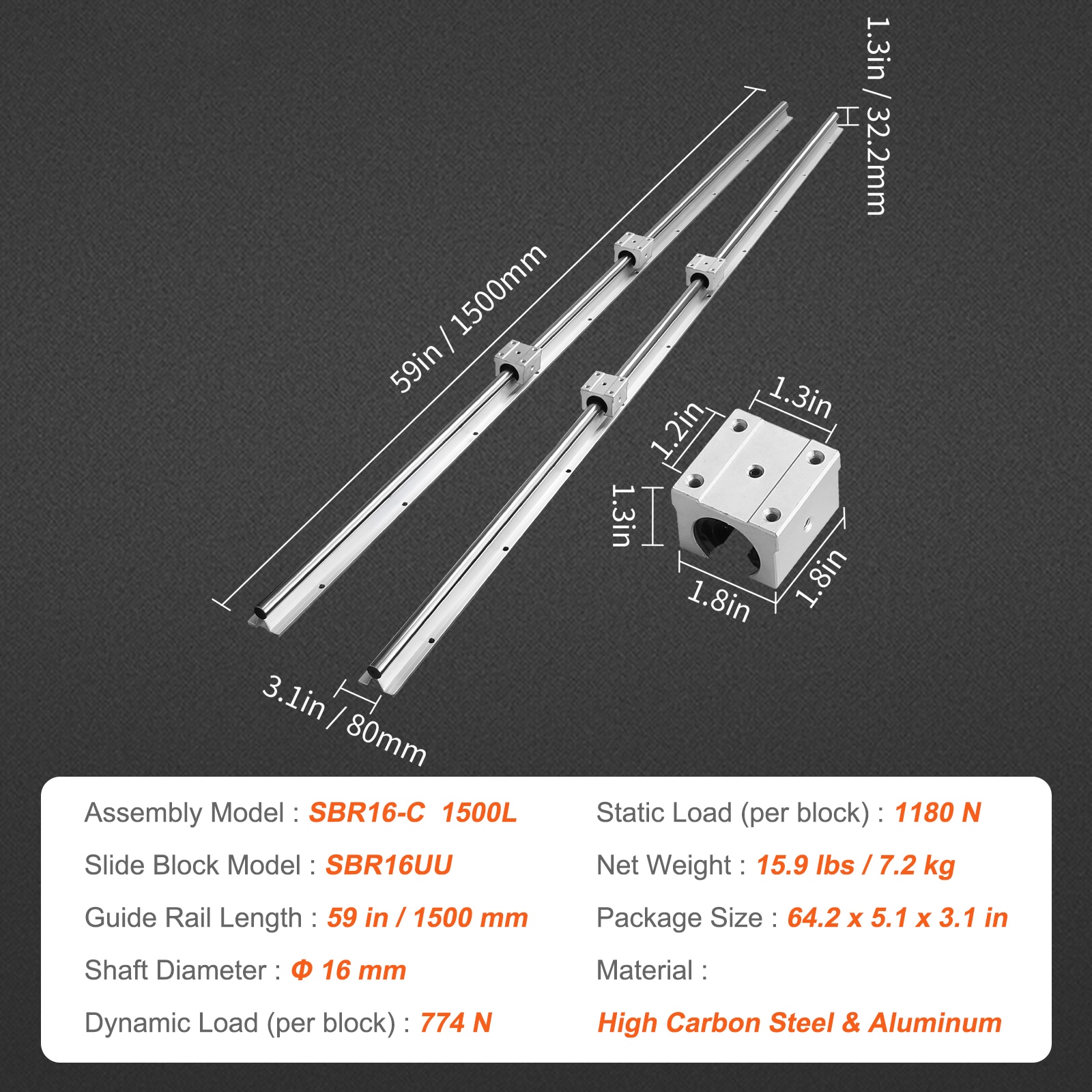

Specification: Model Number: SBR16-C 1500L; Slide Block Model: SBR16UU; Guide Rail Length: 59 in/1500 mm; Shaft Diameter: Φ16 mm; Dynamic Load (per block): 774 N; Static Load (per block): 1180 N; Material: High Carbon Steel & Aluminum; Mounting Hole Distance A: 1.3 in/32 mm; Mounting Hole Distance B: 1.2 in/30 mm; Slide Block Size(L x W x H): 1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm; Product Dimensions(L x W x H): 59 x 3.1 x 1.3 in/1500 x 80 x 32.2 mm; Package Size(L x W x H): 64.2 x 5.1 x 3.1 in/1630 x 130 x 80 mm; Net Weight: 15.9 lbs/7.2 kg
