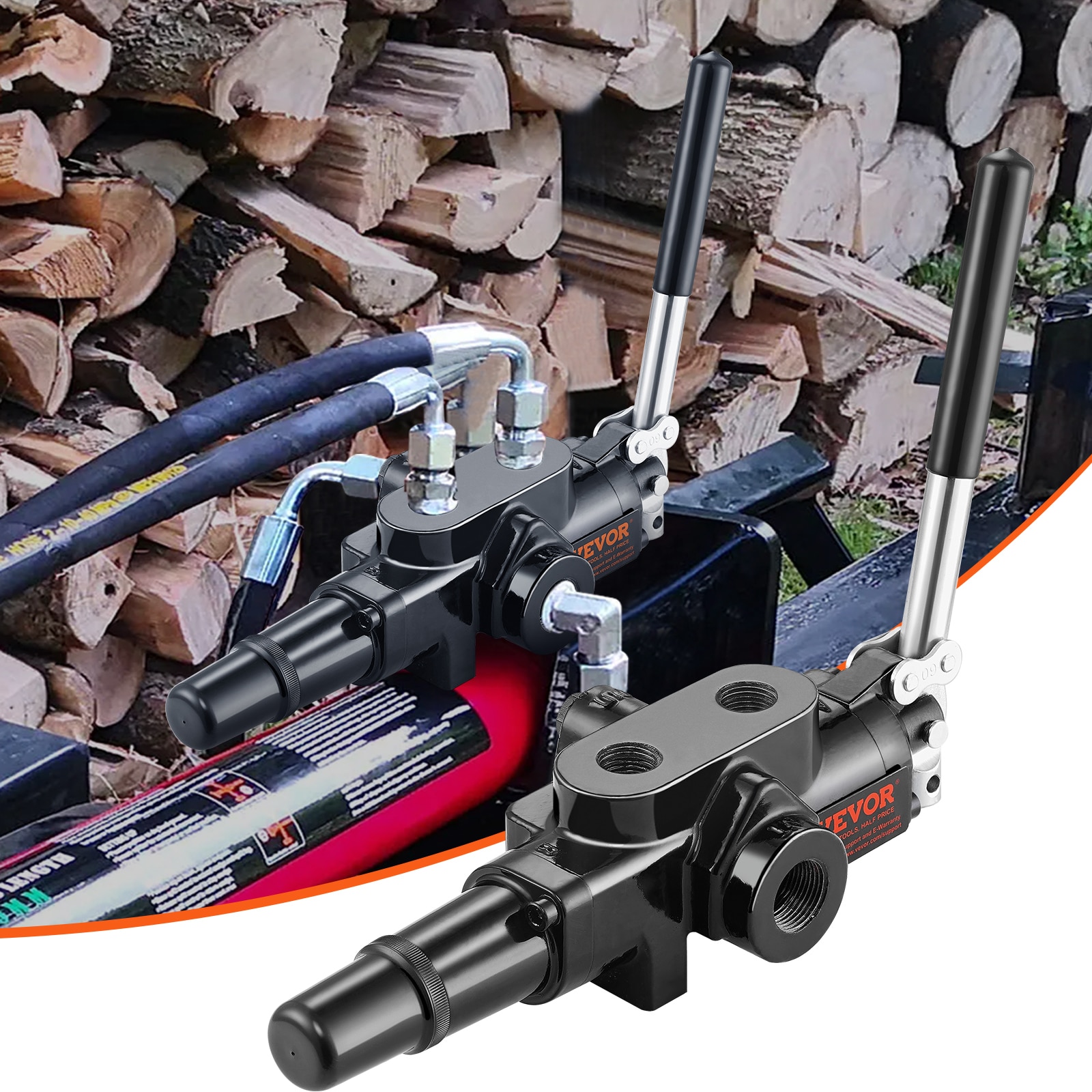

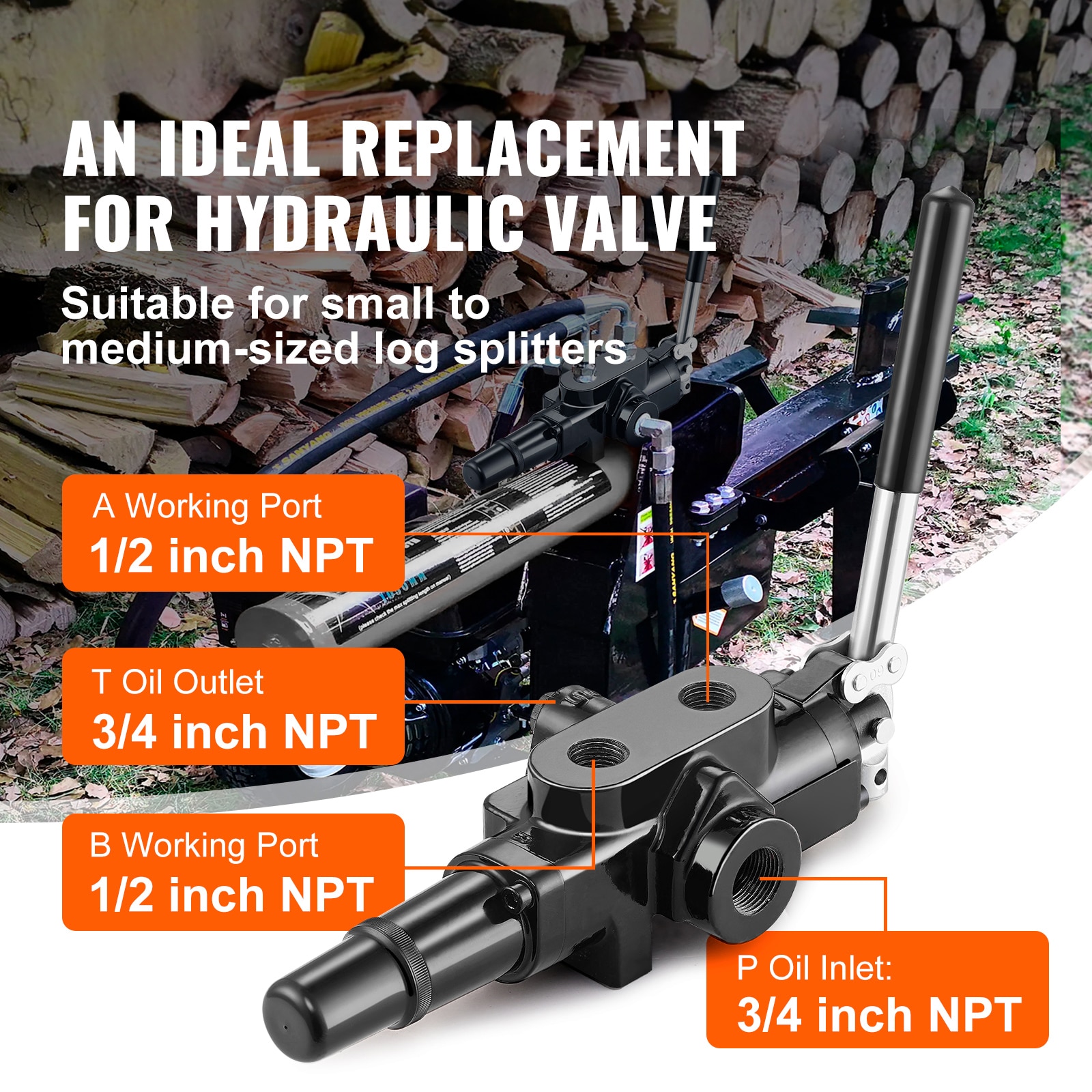

For Small to Medium-Sized Hydraulic Log Splitters: The 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry; It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports;

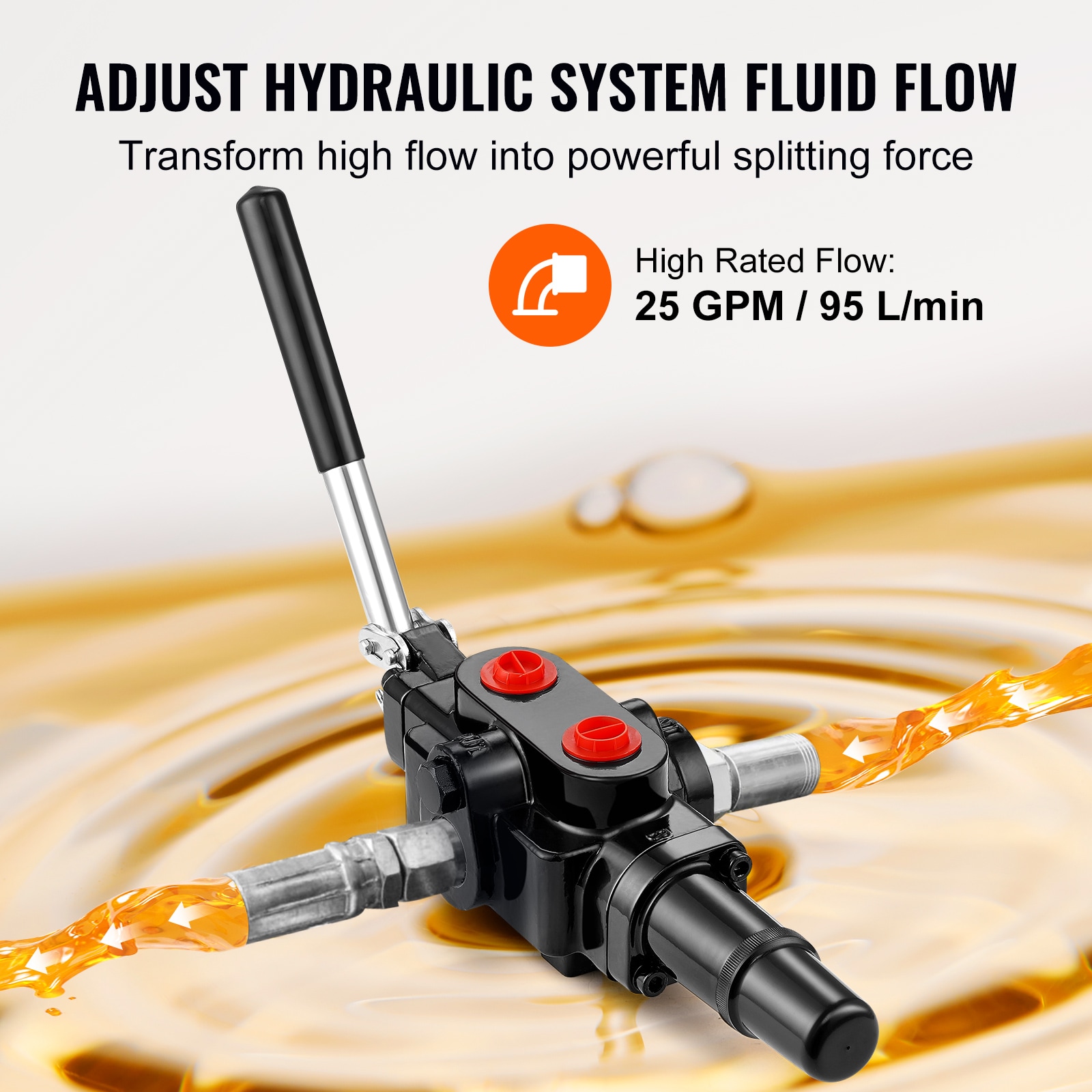

High Flow, High Efficiency: With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting;
Built-in Spring Return: The standard spool features a spring return mechanism, automatically resetting to the neutral position; Additionally, there is a spring at the base of the handle, making joystick control smoother and easier;
Our 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry; It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports;
With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting;
The standard spool features a spring return mechanism, automatically resetting to the neutral position; Additionally, there is a spring at the base of the handle, making joystick control smoother and easier;

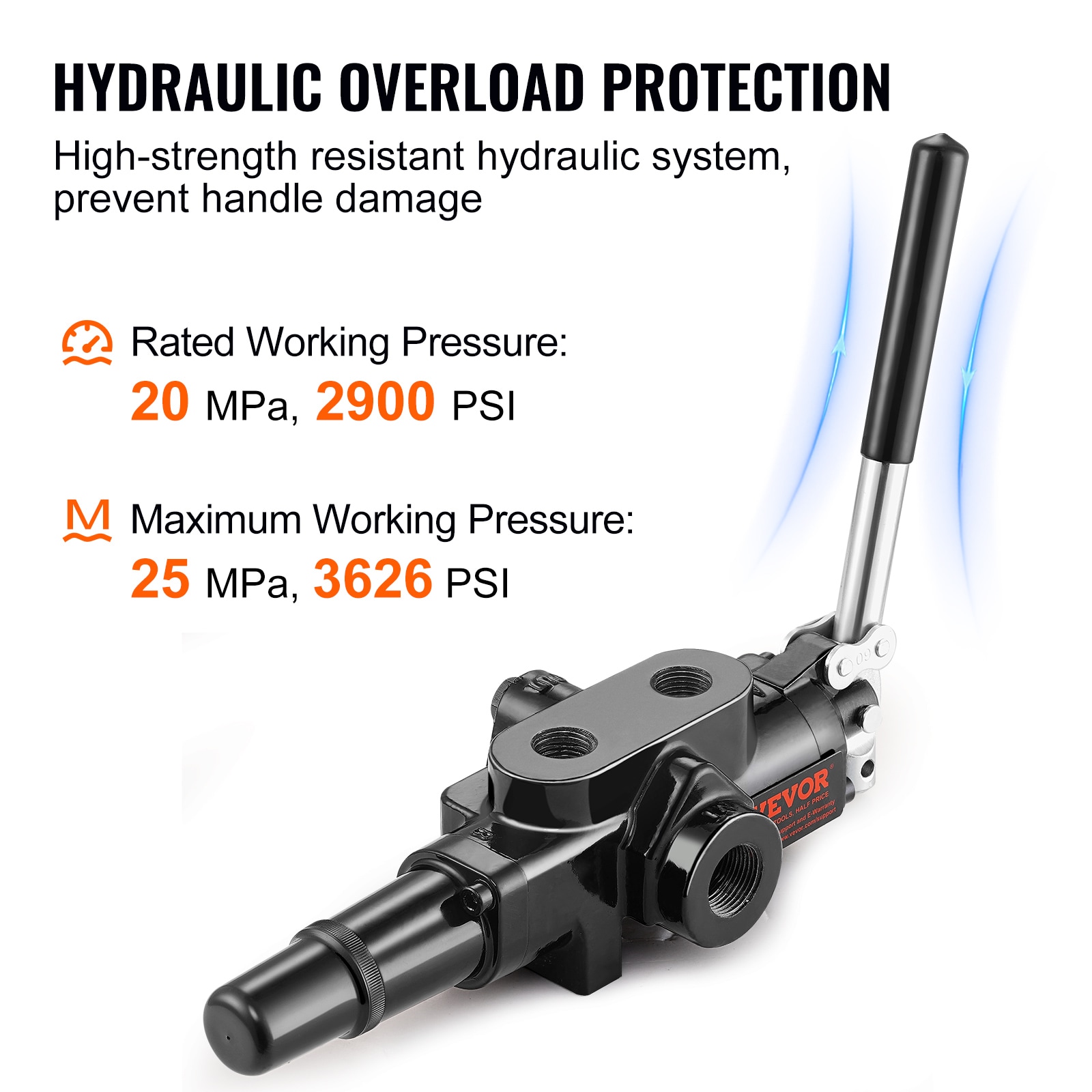

Durable and Secure: Equipped with a hydraulic safety valve, The 1-spool hydraulic loader valve can withstand up to 25 MPa / 3626 PSI maximum pressure, ensuring durability and preventing damage; Its solid vermicular graphite cast iron construction can provide long-term service;

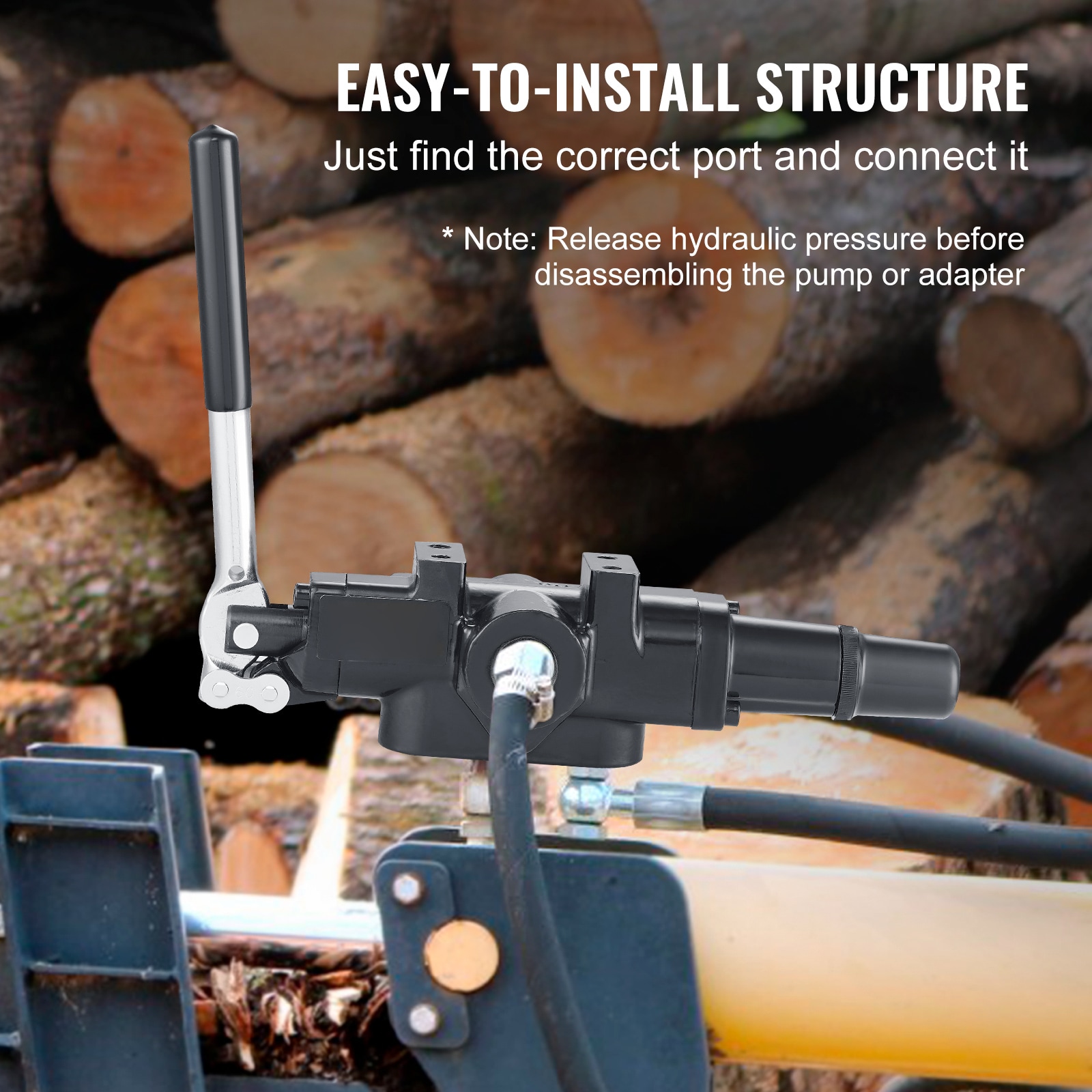

Simple Installation: Installing or replacing this loader control valve is straightforward; Identify the ports, connect the pipelines, and tighten each interface to complete the installation; Remember to release the hydraulic pressure before disassembling the pump or adapter for safety;

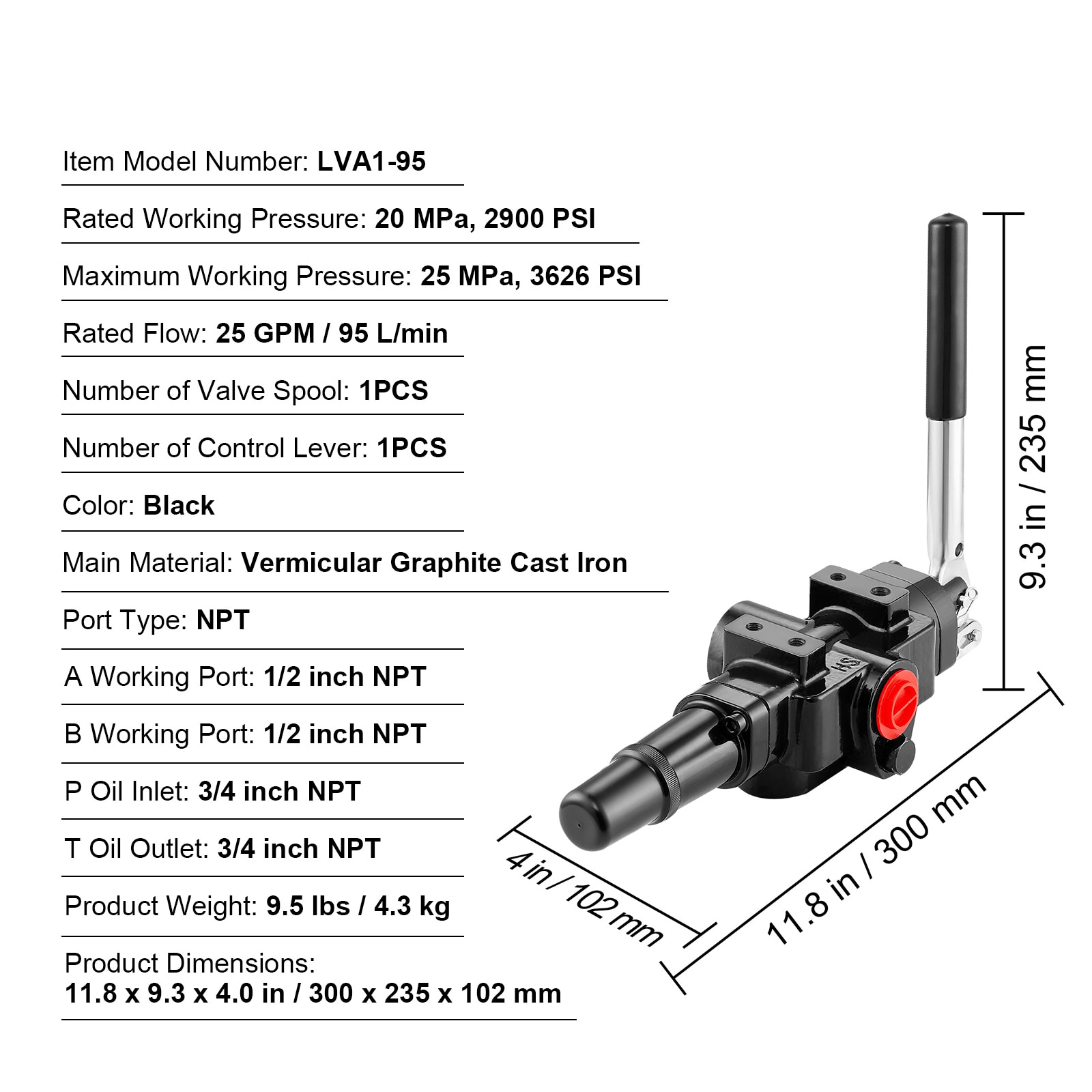

Specification: Item Model Number: LVA1-95; Rated Working Pressure: 20 MPa, 2900 PSI; Maximum Working Pressure: 25 MPa, 3626 PSI; Rated Flow: 25 GPM / 95 L/min; Number of Valve Spool: 1PCS; Number of Control Lever: 1PCS; Port Type: NPT; A Working Port: 1/2 inch NPT; B Working Port: 1/2 inch NPT; P Oil Inlet: 3/4 inch NPT; T Oil Outlet: 3/4 inch NPT; Color: Black; Main Material: Vermicular Graphite Cast Iron; Product Weight: 8.8 lbs / 4 kg; Product Dimensions: 11.8 x 9.3 x 4.0 in / 300 x 235 x 102 mm
