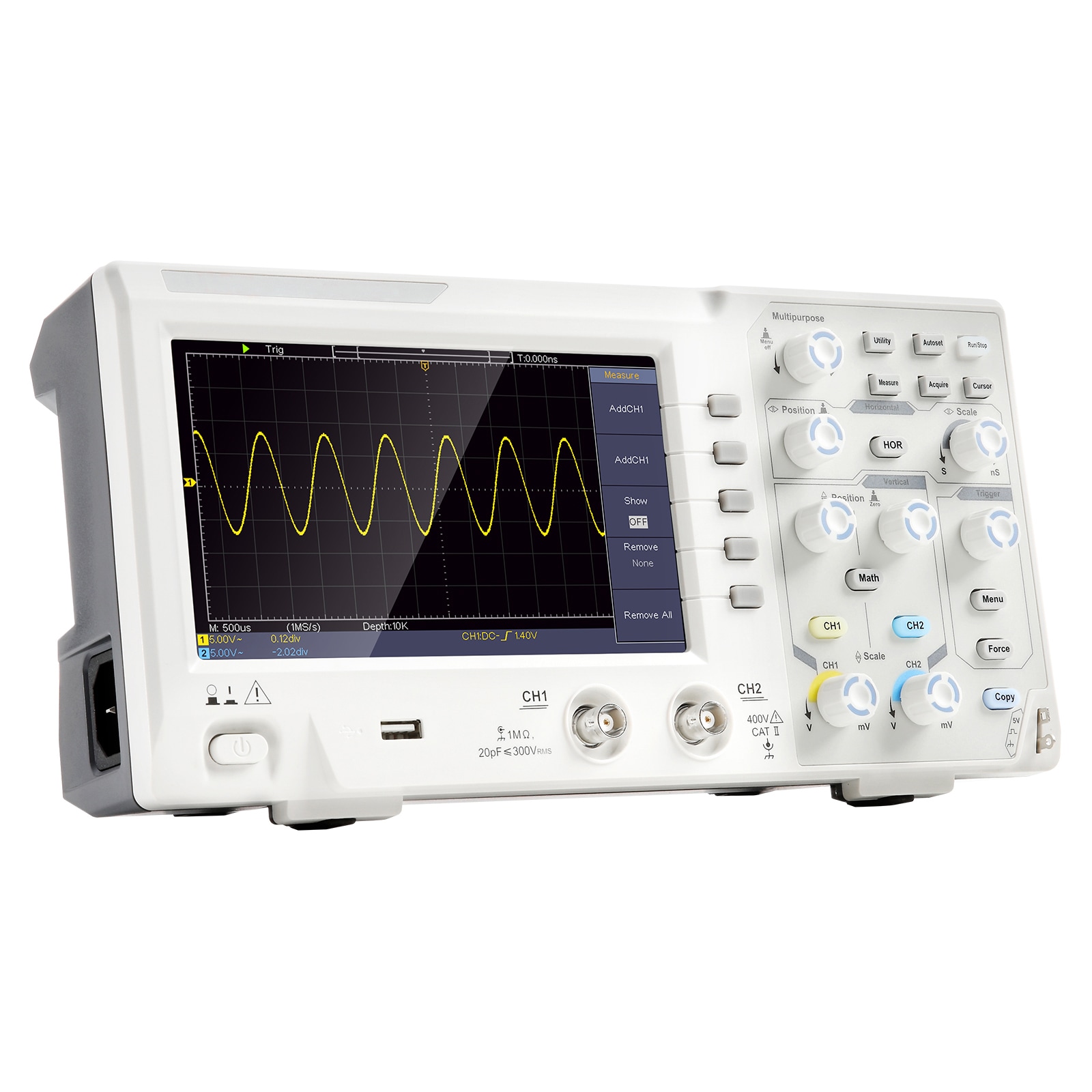

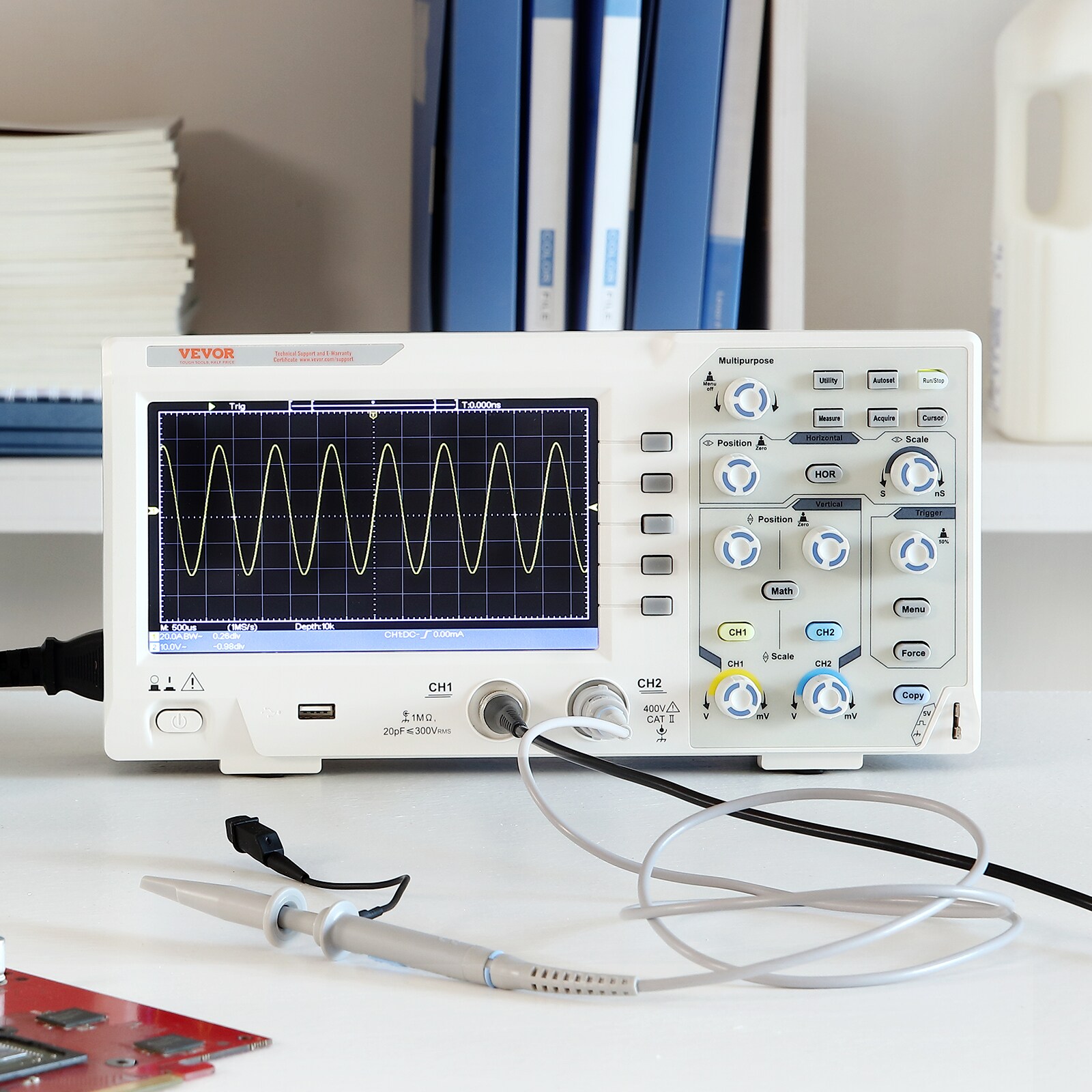

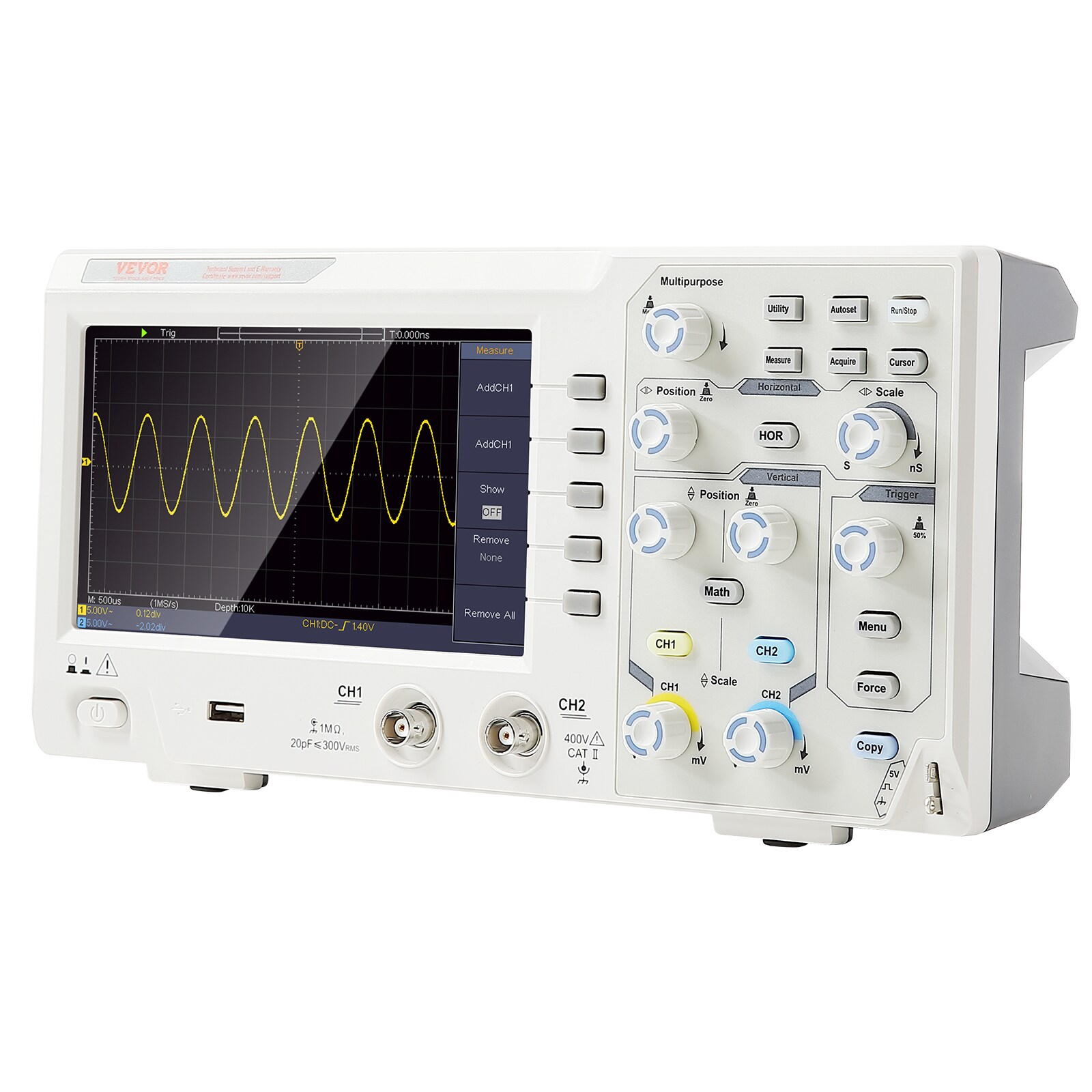

Our portable oscilloscope With sampling rates of up to 1GS/s and a bandwidth of 100MHz, along with 2 adjustable probes (1X, 10X)
Our portable oscilloscope features independent storage capability, to meet your data viewing and analysis needs

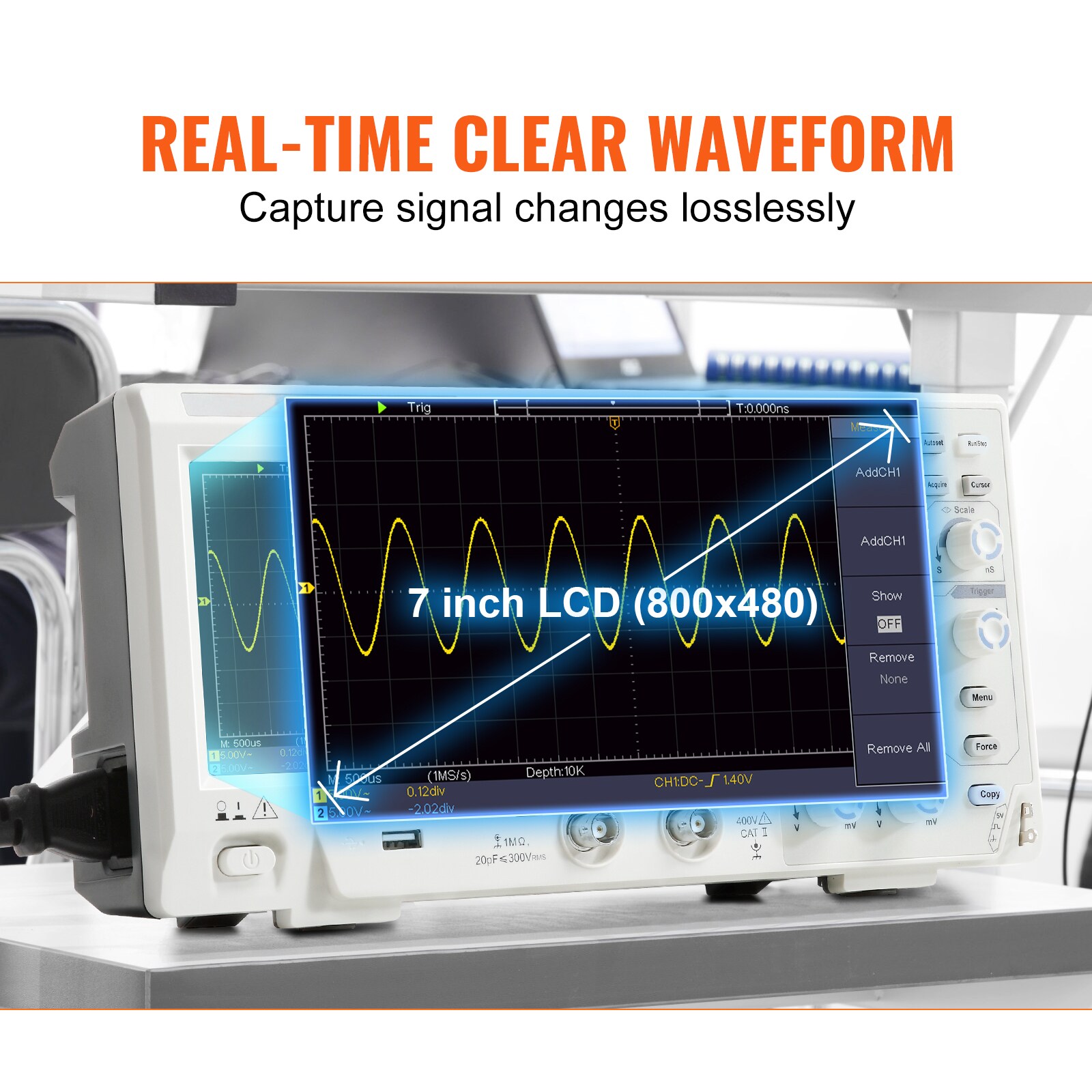

The automatic waveform equipped with a high-definition 7-inch LCD screen, it can display clear waveforms in real time;

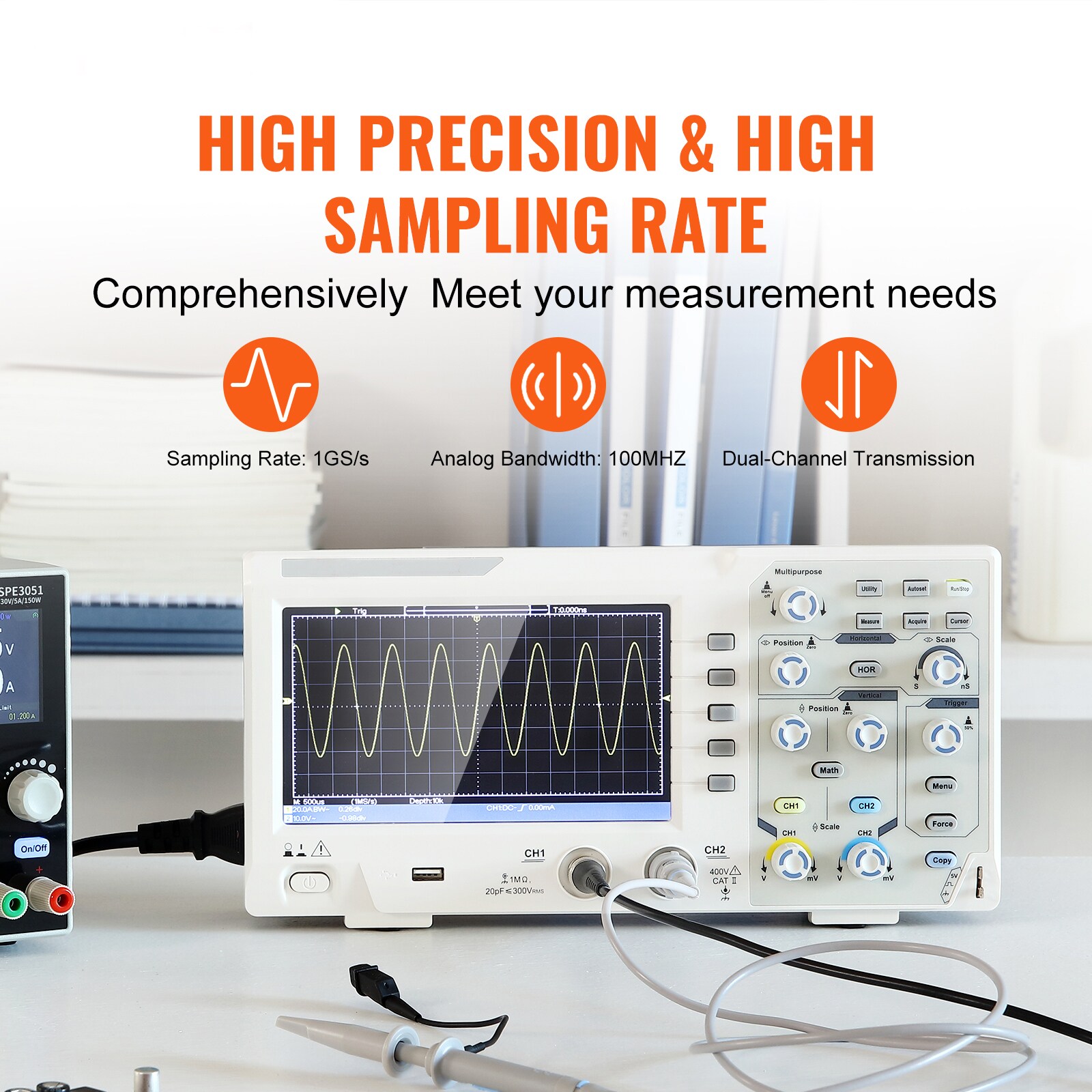

With sampling rates of up to 1GS/s and a bandwidth of 100MHz, along with 2 adjustable probes (1X, 10X), you can analyze and troubleshoot circuits and systems more accurately!
To meet your data viewing and analysis needs, our portable oscilloscope features independent storage capability, capable of storing 16 sets of waveform data, supporting USB storage, and firmware upgrades;
The automatic waveform capture feature eliminates the need for manual calculation and measurement, allowing for quick acquisition of key data;
Versatile Mathematical Calculations: In addition to basic measurement functions, our oscilloscope also features versatile mathematical calculations, including addition, subtraction, multiplication, division, FFT, and inversion algorithms; It offers 30 automatic measurement functions and supports a customizable measurement menu, making it easy to tackle testing challenges;
Multi-Channel Inputs: Supports SCPI communication and LabVIEW communication, with optional RS232 port, HDMI port, WIFI communication, SD card storage, USB port for LAN, and more; Applications include electronic circuit debugging, circuit testing, design manufacturing, education training, vehicle maintenance, and testing;
Specification: Item Model Number: SDS1102; Number of Channels: Dual Channel; Maximum Input Voltage: 400Vpp; Analog Bandwidth: 100MHZ; Sampling Rate: 1GS/s; Display: LCD Display; Max Record Length: 10K; Waveform Math: ＋, －, *, / ,FFT; Communication: Support SCPI and LabVIEW Communication; Number of Waveforms: Store up to 16 Waveforms; Product Weight: 3.09 lbs / 1.4 kg; Product Dimensions: 11.81 x 6.10 x 2.76 in / 300 x 155 x 70 mm
