Fits the majority of standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm).
One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles.
This precision miter gauge is constructed from aluminum alloy, ensuring durability and resistance to deformation.
Fit for Most Table Saws: Our miter gauge is expertly designed to fit the majority of standard table saw slots measuring 3/4 x 3/8 in ( 19 x 9.5 mm); To ensure a perfect match, please measure the slots on your table saw before purchase;

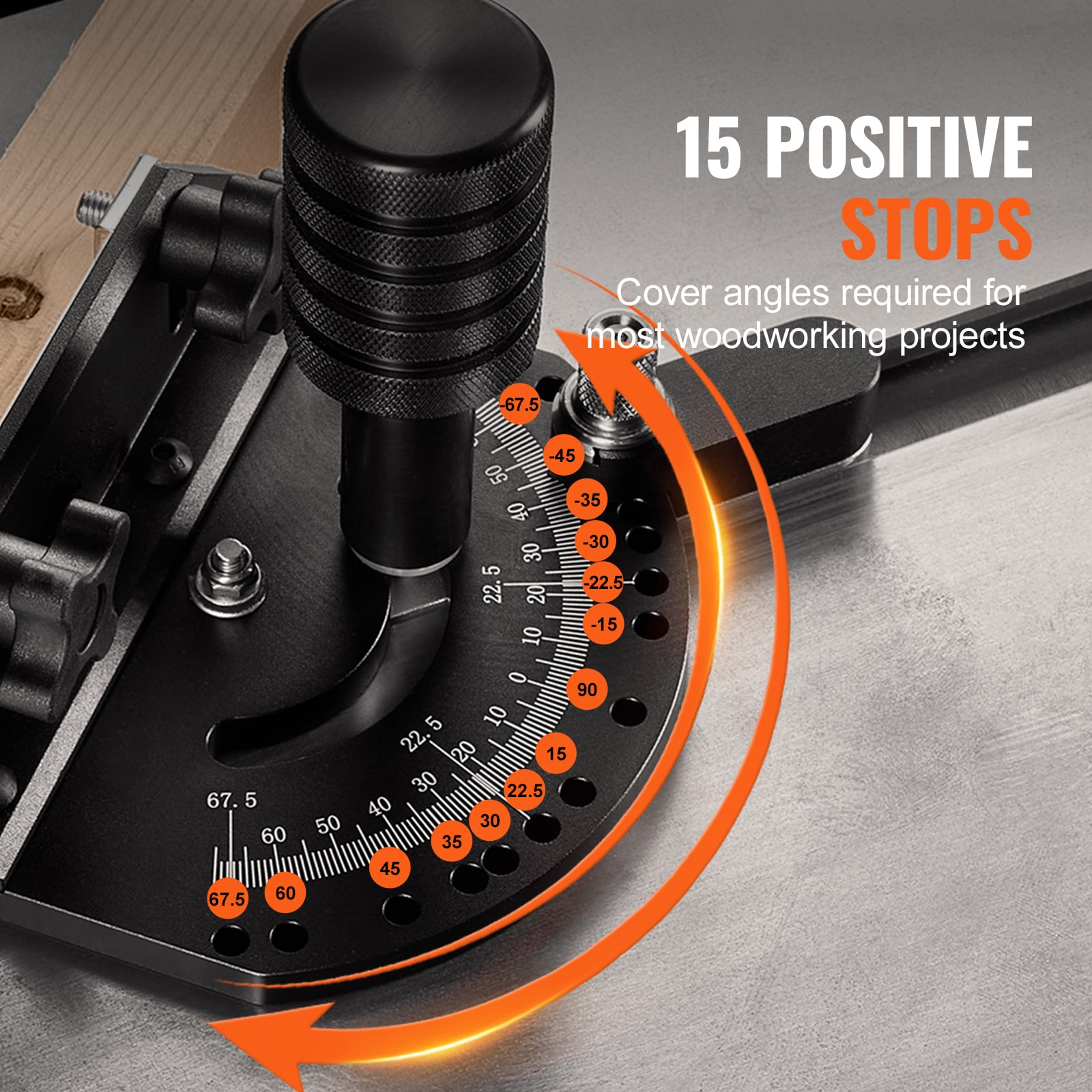

Precision Angle Cutting: Experience cutting precision with our adjustable solid aluminum head, engineered with 15 positive stop holes for ultimate accuracy; One stop hole is set at 90 degrees, with seven additional holes on each side at 15°, 22.5°, 30°, 35°, 45°, 60°, and 67.5° to cover most woodworking angles;

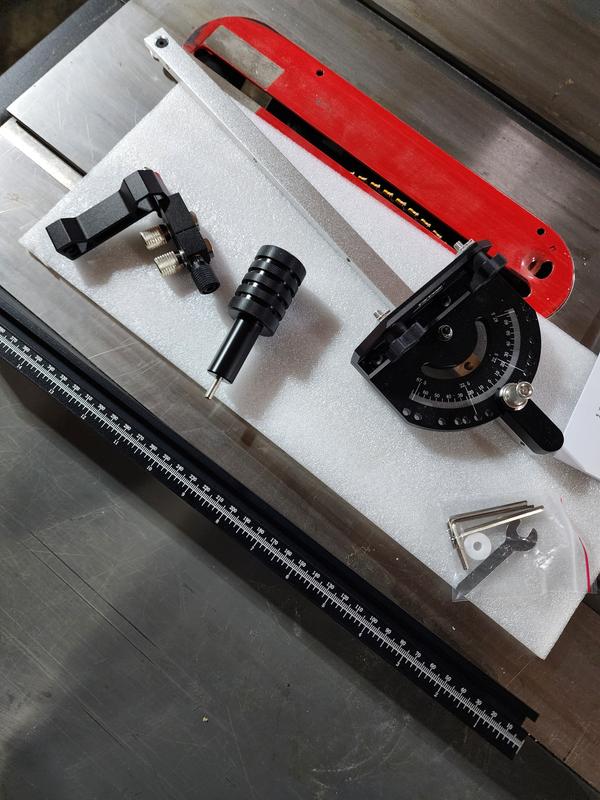

Partially Assembled Components: This miter gauge for table saw is shipped partially assembled to streamline your setup process;
Easy Operation, Simple Adjustment: Our table saw miter gauge features a steel miter bar equipped with an adjustable bead spring plunger on the side; When placing the miter gauge in the table saw slot, if you notice any gaps, simply use the included hex wrench to adjust the plunger; This adjustment ensures an ideal fit within the slot, improving wear resistance and simplifying your operations;
Refined Durability in Every Detail: This precision miter gauge is constructed from aluminum alloy, ensuring durability and resistance to deformation; Featuring a convex-concave grating with fine-tuning screws, it allows for manual micro-adjustments to enhance precision; The angle plate scale is meticulously etched using laser engraving technology, and the textured metal handle provides a secure grip that avoids slipping;
Specification: Item Model Number: TN-1122B; Main Material: Aluminum Alloy; Angle Fixing Method: 15 Positive Stops; Number of Angle Adjustment: 15°, 22.5°, 30°, 35°, 45°, 60°, 67.5°, 90°, -67.5°, -60°, -45°, -35°, -30°, -22.5°, -15°; Applicable T-slot: 0.75 x 0.375 in/19 x 10 mm; Product Dimensions: 17.7 x 21.7 x 4.7 in/450 x 550 x 120 mm; Net weight: 3.6 lbs/1.61 kg
