7" x 14" Metal Lathe: The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate; Through high frequency quenching process and precision grinding of high-quality cast iron bed; 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable;; [Package Content] 1 x Mini Metal Lathe; 3 x Chuck Jaws; 1 x Lathe Center; 1 x Chuck Wrench; 2 x Wrench; 1 x Oil Can; 5 x Hex Wrenches; 9 x Plastic Nylon Gears; 2 x Handle; 4 x Rubber Feet; 4 x Screws; 1 x Tool Box
This lathe features an MT#2 taper, bed swing of 7.09 inches/180 mm, and cross slide swing of 14 inches/350 mm
Metal lathe includes a large through-hole spindle with a speed range of 0-2250 RPM
The spindle is supported by precision tapered roller bearings, and the spindle accuracy is within 0.01mm

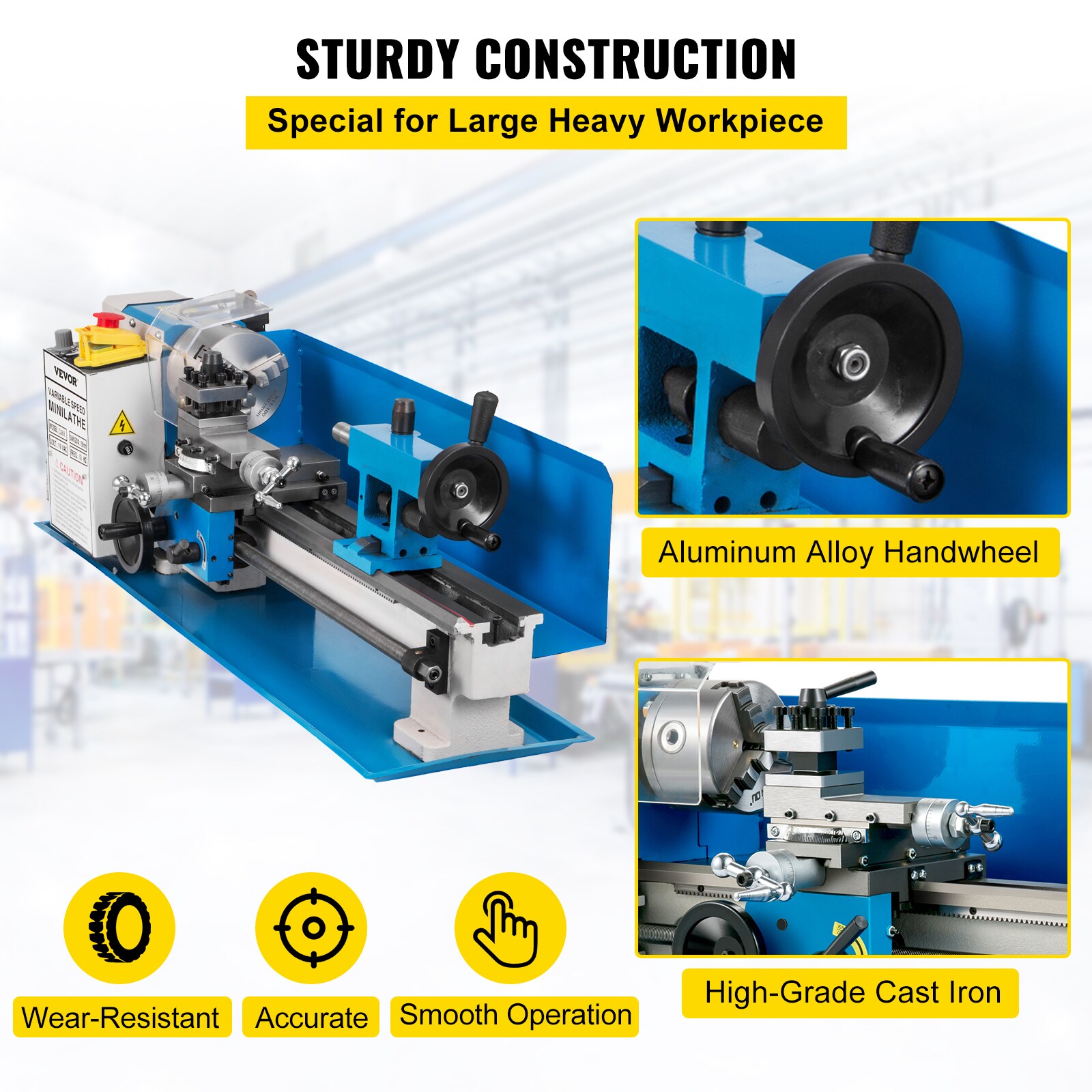

Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron; Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional; Mini metal lathe power of motor: 550W; The full-length splash guard provides max; protection;
Infinitely Variable Speeds: Spindle speed from 0-2250 RPM; Forward and reverse in all speeds; Operate either manually or with the adjustable auto feed rate; The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding; Emergency stop button included;
Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily; Back splash guard included; Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004" / 0.01 mm;
Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest; Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod;
Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works;

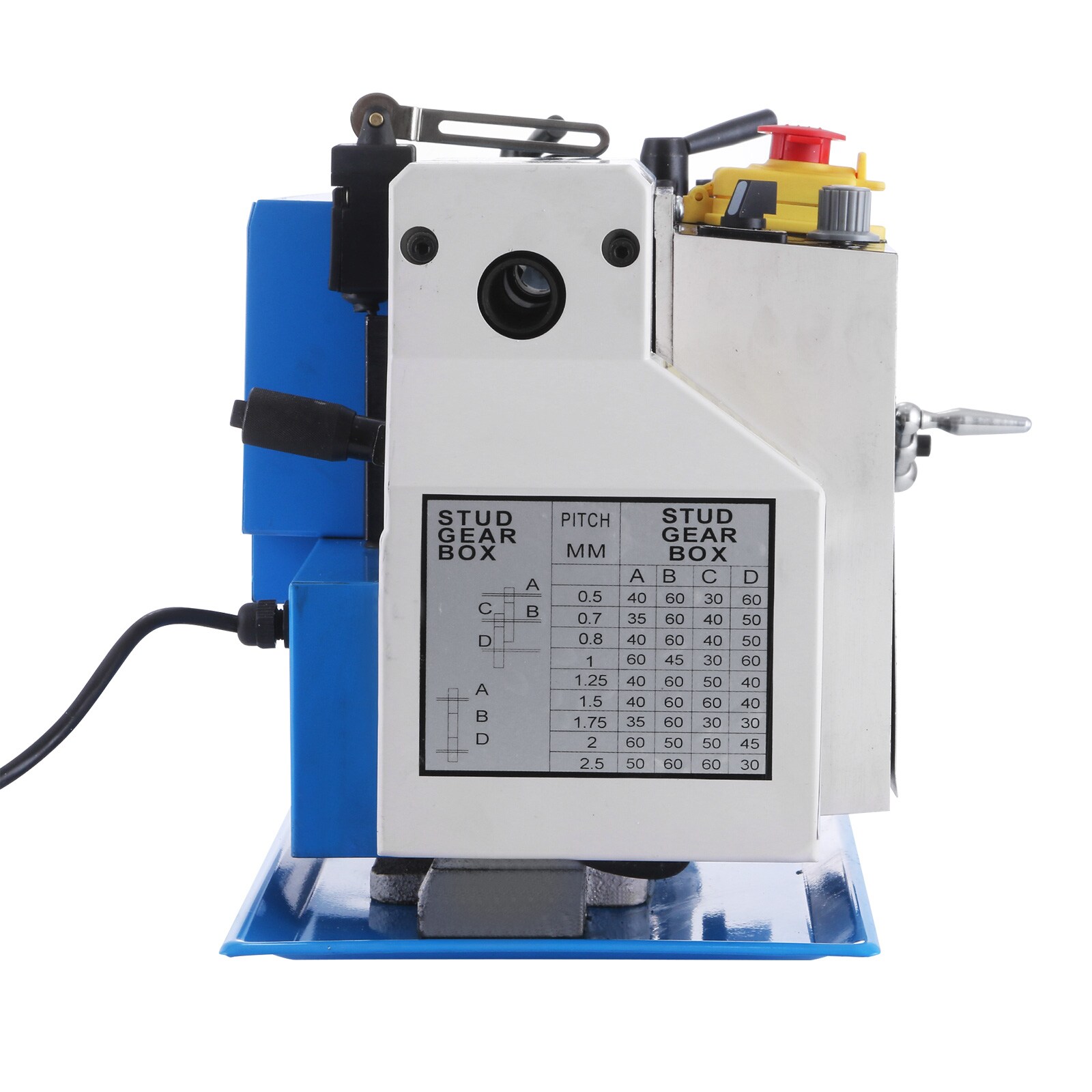

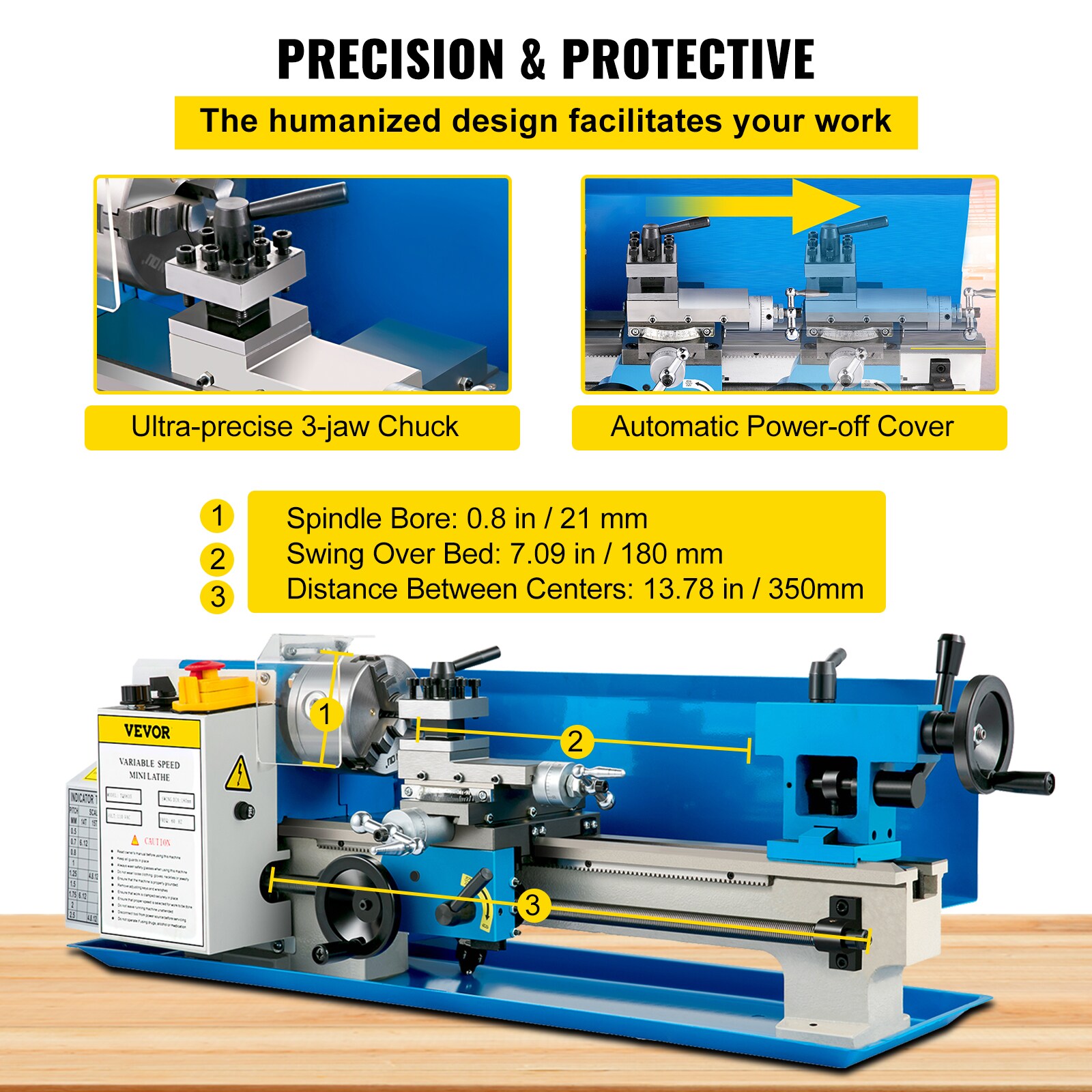

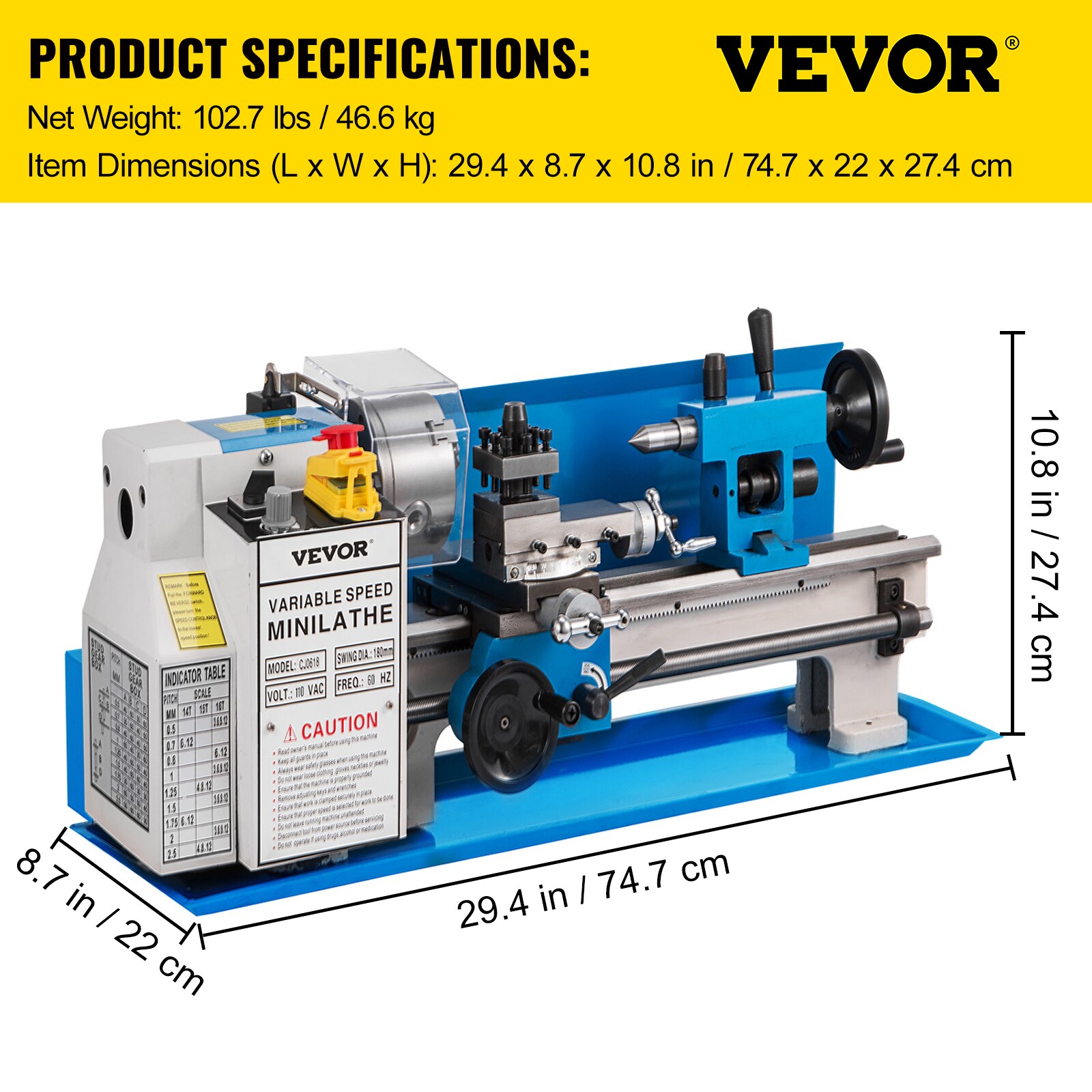

Specification: Power of Motor: 550W DC Single Phase; Spindle Speed: 0 - 2250 RPM; Swing Over Bed: 7.09" / 180 mm; Swing Over Cross Slide: 4.3" / 110 mm; Chuck Diameter: 3.94" / 100 mm; Centers Distance: 13.78" / 350 mm; Spindle Bore: 0.83" / 21 mm; Spindle Taper: MT3; Tailstock Taper: MT2; Cross Slide Travel: 2.53" / 65 mm; Top Slide Travel: 1.36" / 35 mm; Spindle Accuracy: 0.0004" / 0.01 mm; Inch Thread: 12 - 52 T;P;I; Metric Thread: 0.5 - 2.5 mm; Net Weight: 102.7 lbs / 46.6 kg; Item Dimensions (L x W x H): 29.4 x 8.7 x 10.8 in / 74.7 x 22 x 27.4 cm
