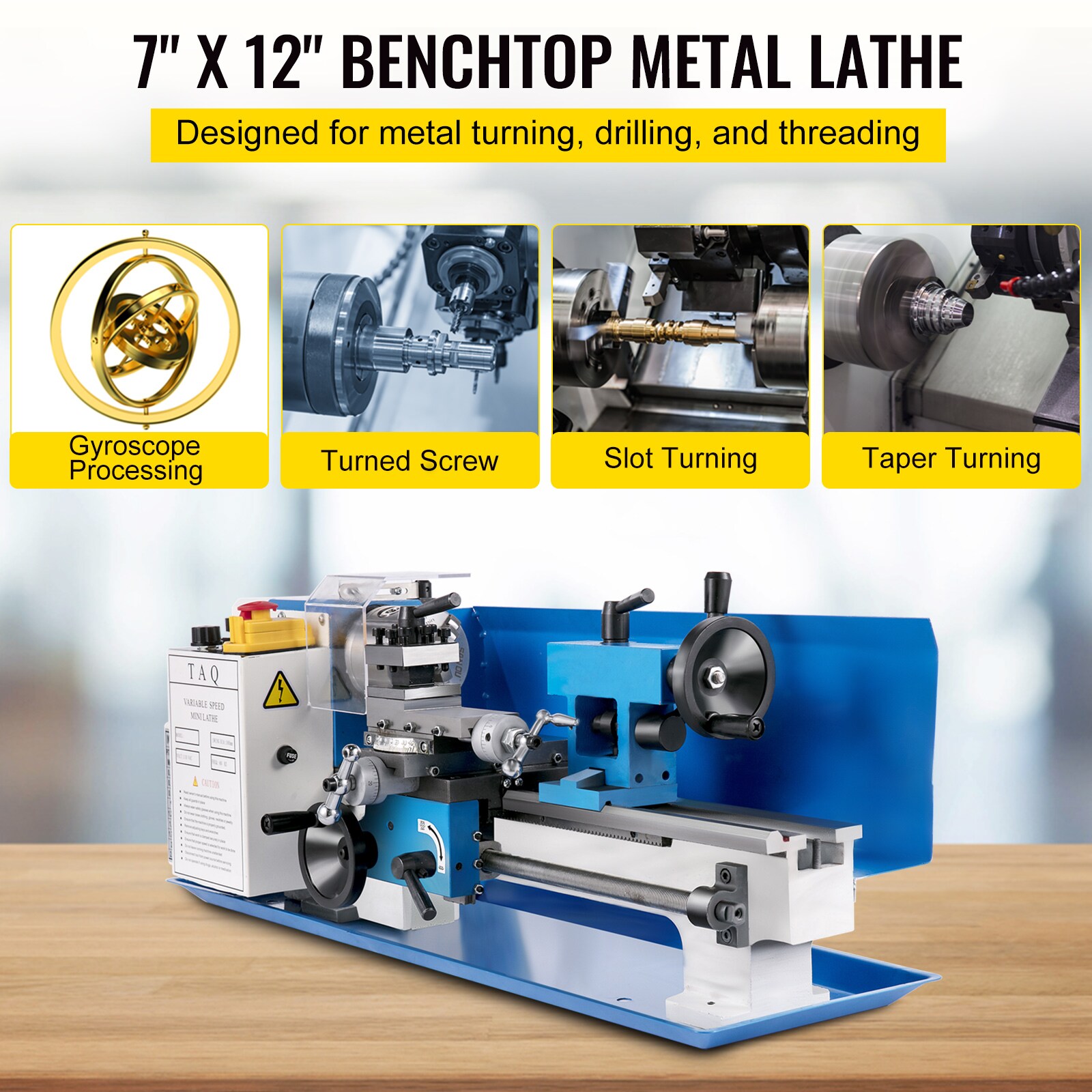

7" x 12" Metal Lathe: The reinforced metal construction provides a sturdy base for a more accurate rotation and the splash guard ensures maximum protection during use; With this lathe you will get a superb workhorse; The 7 x 12 Inch lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, and a 3/4 HP motor; 0-2250 RPM continuously adjustable; Compact easy-to-use machine meets powerful precise lathe; It's the excellent addition to your workbench;; [Package Content] 1 x Mini Metal Lathe(Including a 3-jaw Chuck); 9 x Cutter; 1 x Tail Stock Chuck; 1 x Live Centre; 1 x Fixed and Travelling Steadies Set; 7 x Chuck Jaw; 1 x Quick Change Tool Post Set; 4 x Engineers Measuring Kit (Including Caliper and Outside Micrometer); 1 x Movable Lamp; 8 x Nylon Gear; 1 x Oil Can; 2 x Wrench; 7 x Allen Key; 1 x Accessory Set; 1 x Manual
The mini metal lathe bed is made of high grade iron
This lathe machine is wear-resistant, durable, more accurate rotation and professional
Using DC motor drive, it can be used in sample processing, modeling work and other fields

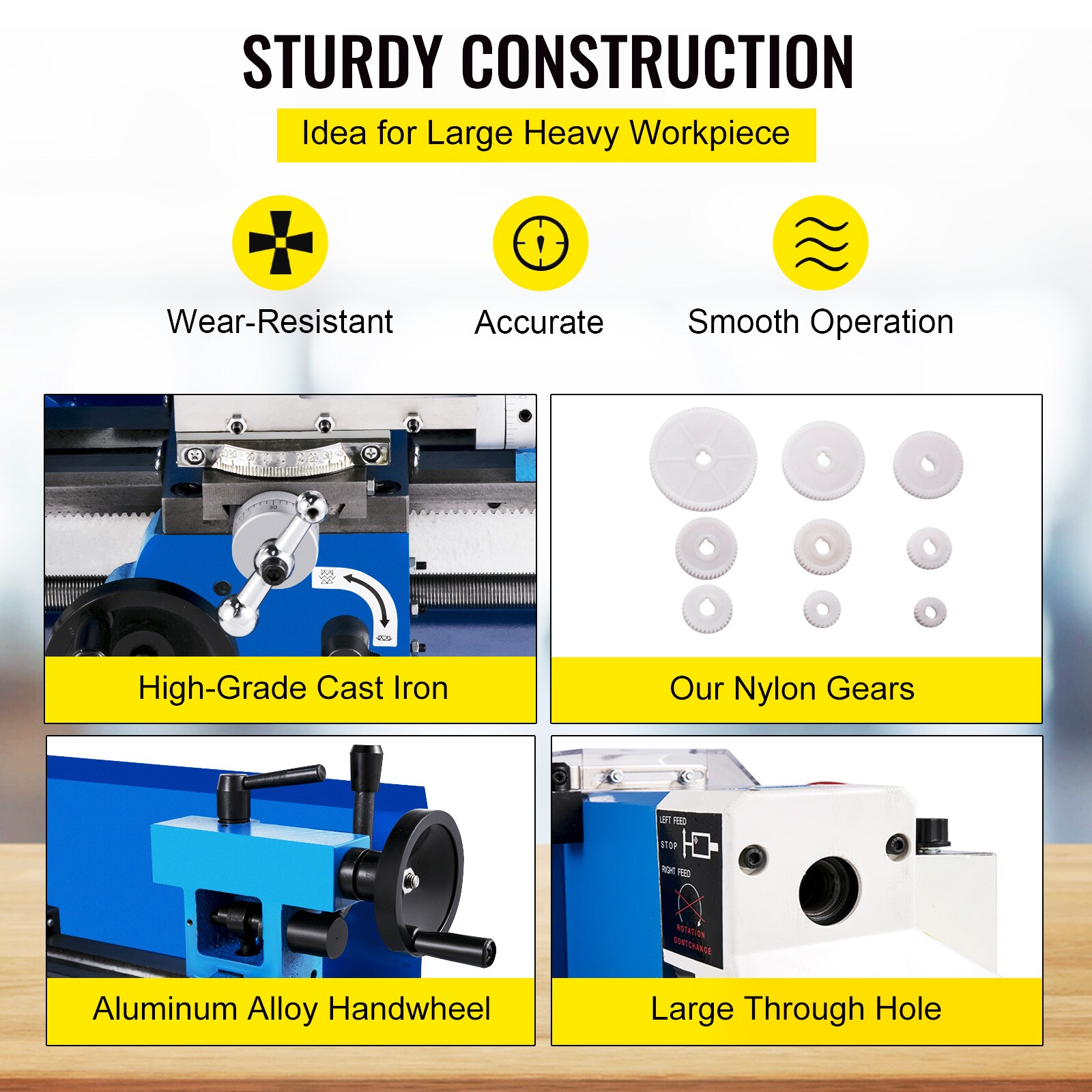

Sturdy Construction: The mini metal lathe bed is made of high-grade iron; Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional; Mini metal lathe power of motor: 550W; The full-length splash guard provides maximum protection;

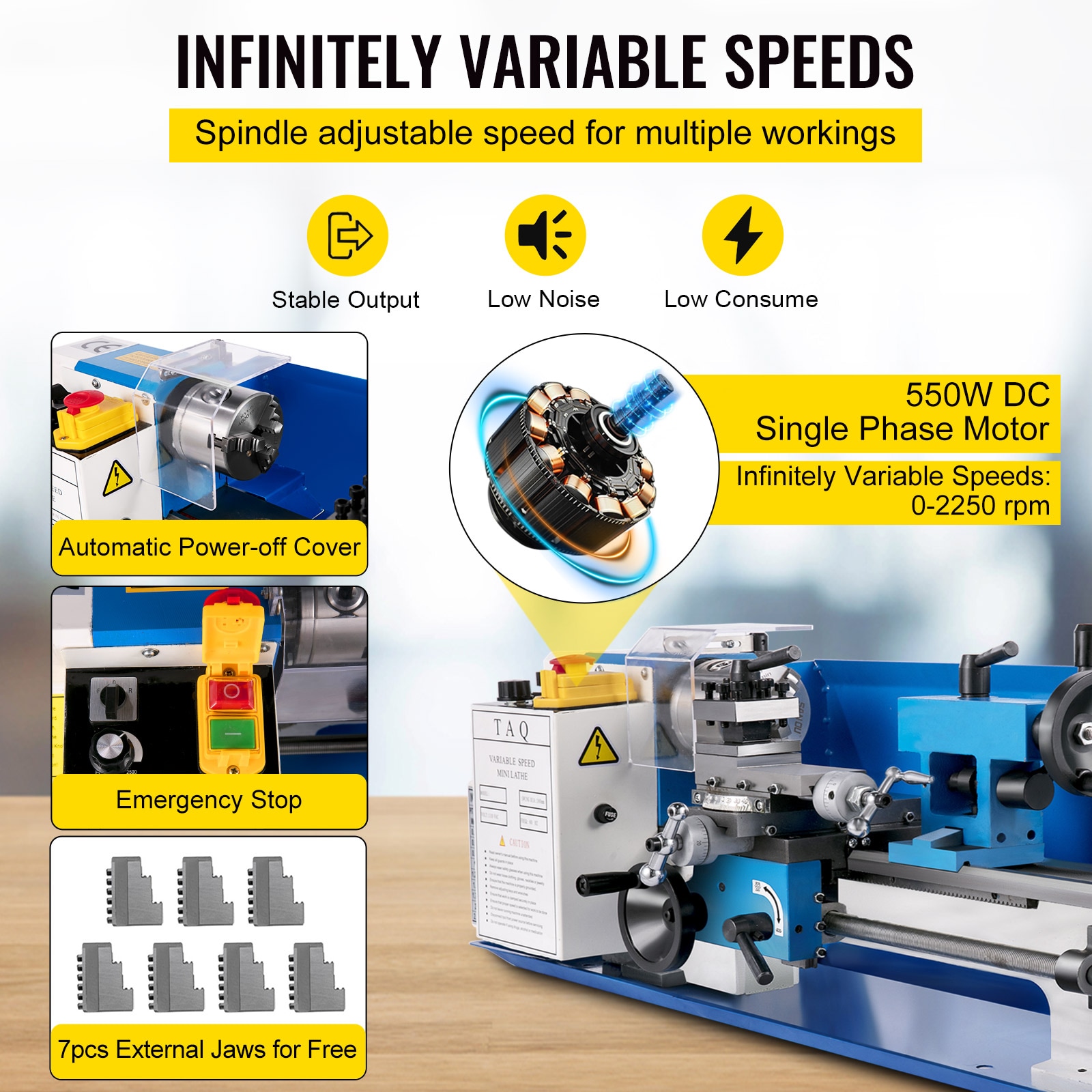

Infinitely Variable Speeds: 0-2250RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable; Forward and reverse in all speeds; Operate either manually or with the adjustable auto feed rate; The hardness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding; Emergency stop button included;
Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily; Backsplash guard included; Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm; A free lamp, 1 x Quick Change Tool Post and 4 x Engineers Measuring Kit are included;

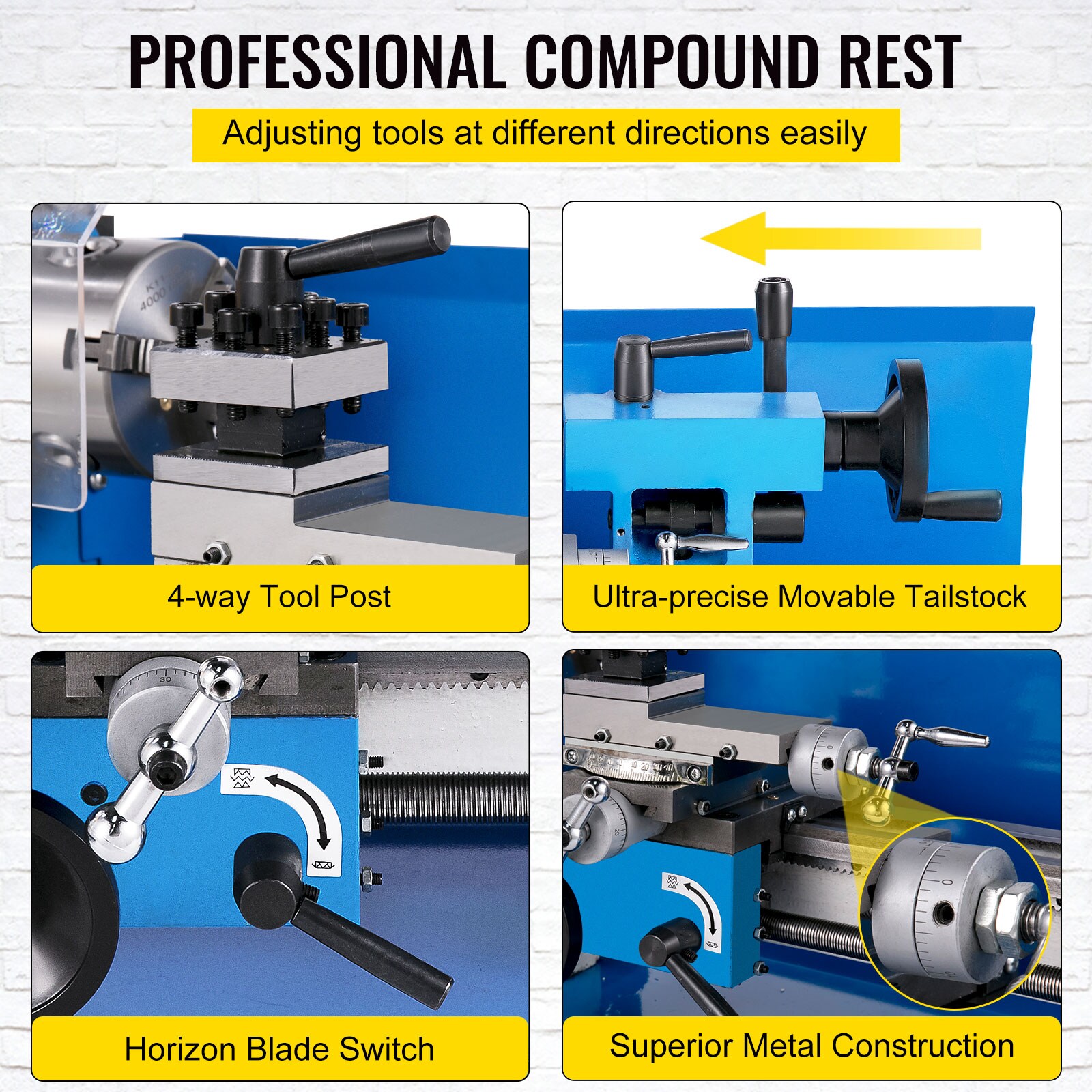

Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest; Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod;
Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works; 9 Cutters for easy replacement;

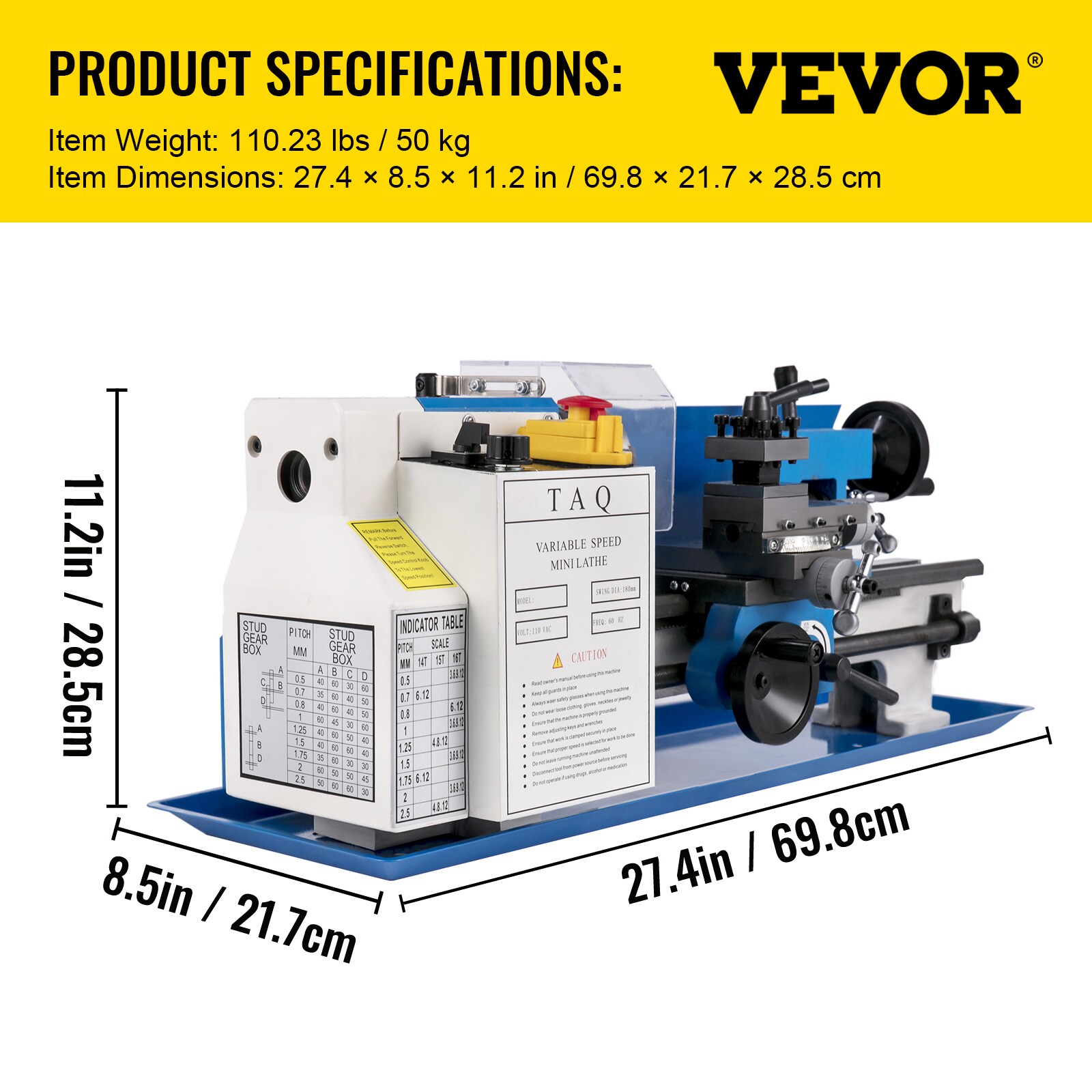

Specification: Power of Motor: 550W DC Single Phase; Spindle Speed: 0-2250 RPM; Swing Over Bed: 7.09" / 180 mm; Chuck Diameter: 3.15" / 80 mm; Centers Distance: 11.81" / 300 mm; Spindle Bore: 0.83" / 21 mm; Inch Thread: 12-52 T;P;I; Metric Thread: 0.4-2 mm; Tail Stock Taper: MT2; Spindle Taper: MT3; Gear Material: Plastic Nylon; Power Source: Electric; Control: Manual; Machine Type: Metal Lathe; Treated Material: Metal; Item Weight: 110.23 lbs / 50 kg; Item Dimensions: 27.4 × 8.5 × 11.2 in / 69.8 × 21.7 × 28.5 cm
