VEVOR 3HP Air Compressor Electric Motor 3 -HP Replacement Engine for Generators

Name: VEVOR 3HP Air Compressor Electric Motor 3 -HP Replacement Engine for Generators
Brand: VEVOR
SKU: 5014688913
Price: 125.42 USD
Availability: InStock

Shop VEVOR

Ask Mylow

Mylow is an AI virtual assistant.

More Information

What is the warranty period?How do I install this motor?Can I use it outdoors?What tools are needed for setup?How much power does it use?

Pickup

Unavailable

Shipping

Sat, Sep 5

74 available

Delivery

Thu, Sep 10

74 available

Check Fee in Cart.

Outside Delivery.

Stepper number input field with increment and decrement buttons

Members save more.

Here are some similar items...

VEVOR3.7HP Air Compressor Motor 3450RPM Electric Motor 230V 17.2 Amps 5/8in Keyed Shaft 56 Frame 1.88in Shaft Length Single Phase CCW/CW Rotation (Factory Setting is CCW)

VEVOR5HP SPL Air Compressor Electric Motor 230V 17.6Amps 56 Frame 3450RPM 5/8in Keyed Shaft 1.88in Shaft Length CW/CCW Rotation (Factory Setting is CCW) Single Phase

VEVOR7.5HP Air Compressor Motor 230V 31.6 Amps Electric Motor 3450RPM 184T Frame 1-1/8in Keyed Shaft 2.75in Shaft Length for Air Compressors Single Phase CCW/CCW (Factory Setting is CCW)

VEVOR5HP Air Compressor Electric Motor 230V 25 Amps 56HZ Frame 3450RPM 7/8in Keyed Shaft 2.25in Shaft Length Single Phase CCW/CW (Factory Setting is CCW)

VEVOR5HP Air Compressor Electric Motor 5 -HP Replacement Engine for Generators

BILT HARD212-cc 7 -HP Multi-purpose Replacement Engine

VEVOR3HP Air Compressor Electric Motor 230V 15.5 Amps 56 Frame 3450RPM 5/8in Keyed Shaft 1.88in Shaft Length Single Phase CW/CCW Rotation (Factory Setting is CCW)

VEVOR3000W Electric Brushless DC Motor Kit - 72V 4900rpm Motor with Upgraded Speed Controller and Throttle Grip Kit for Go Karts E-Bike Motorcycle Scooter DIY

VEVOR7.5HP Air Compressor Electric Motor 7.5 -HP Replacement Engine for Generators

VEVOR2HP Air Compressor Electric Motor 2 -HP Replacement Engine for Generators

VEVOR5HP Air Compressor Electric Motor 5 -HP Replacement Engine for Generators

CRX210 208-cc 4.2 -HP Multi-purpose Replacement Engine

CRX225 224-cc 4.9 -HP Multi-purpose Replacement Engine

VEVOR3.7HP Air Compressor Electric Motor 3.7 -HP Replacement Engine for Generators

VEVOR2HP SPL Air Compressor Electric Motor 115/230V 20/10 Amps 56 Frame 3450RPM 5/8in Keyed Shaft 1.88in Shaft Length Single Phase CCW/CW (Factory Setting is CCW)

Best Price. Guaranteed

Find a lower price on an exact item? We'll match it. Some exclusions apply.

Price Guarantee

FREE Returns

Return it in store or ship it back for free. Eligibility rules apply.

Return Policy

Pay Your Way

Credit card, PayPal or Buy Now, Pay Later options available at checkout. Your choice.

Payment Options

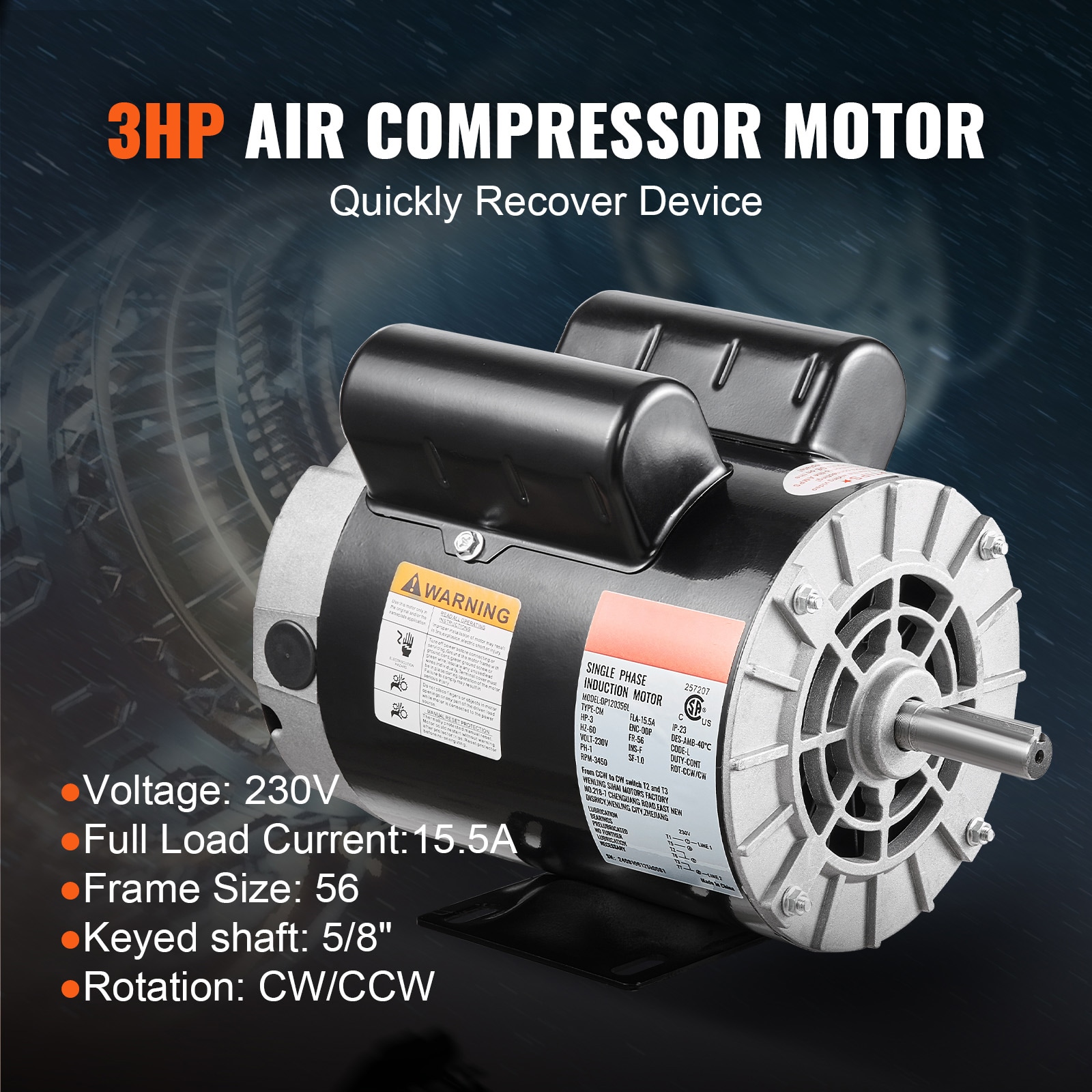

VEVOR Air Compressor Motor: Inject powerful energy into your air compressor with 3HP compressor motor, 230V voltage, 15.5A current, 56 frame, 1.88 inch shaft length, 5/8 inch keyed shaft, CW/CCW dual rotation direction; A perfect addition to air compressors, industrial and commercial needs;; [Package Content] 1 x Air Compressor Motor

High Performance: 3HP 3450 RPM, Single Phase, Full Load Amps: 15.5Amp, 230V 60Hz, SF: 1.0;
Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size;
Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

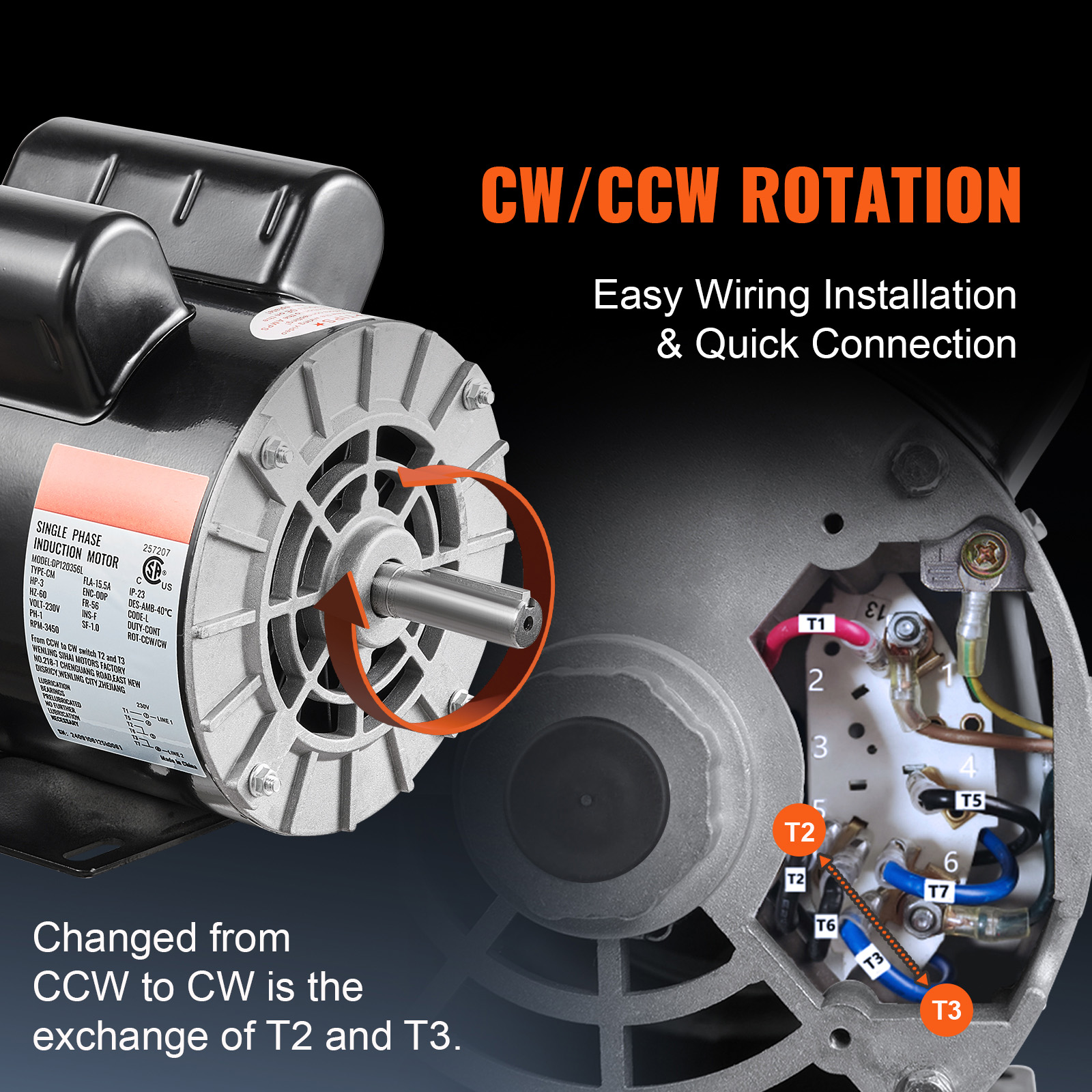

Dual Rotation Direction: Motor is Reversible for CW/CCW, provides easier wiring operations;

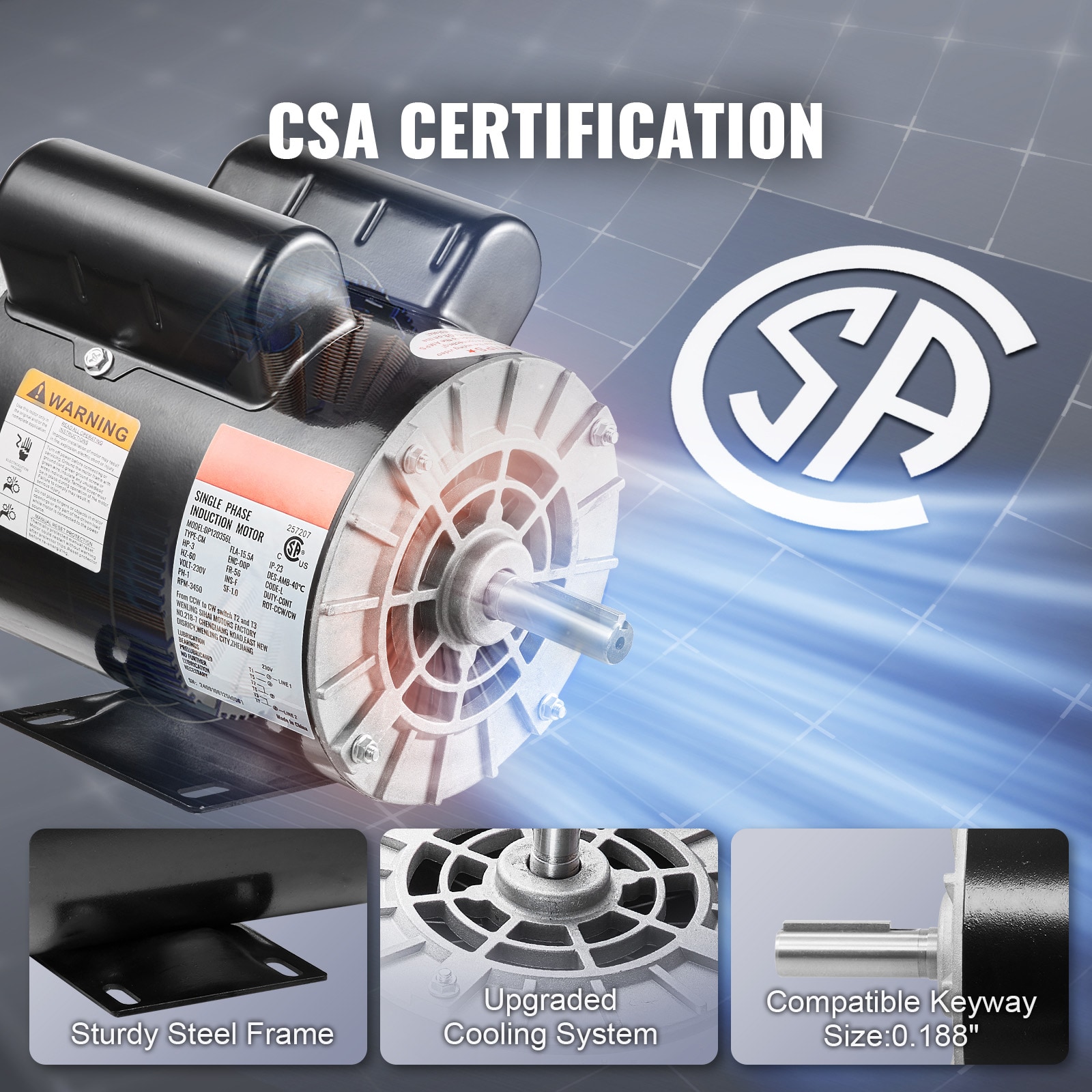

Safe & Durable: Tested with CSA certification; A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage;

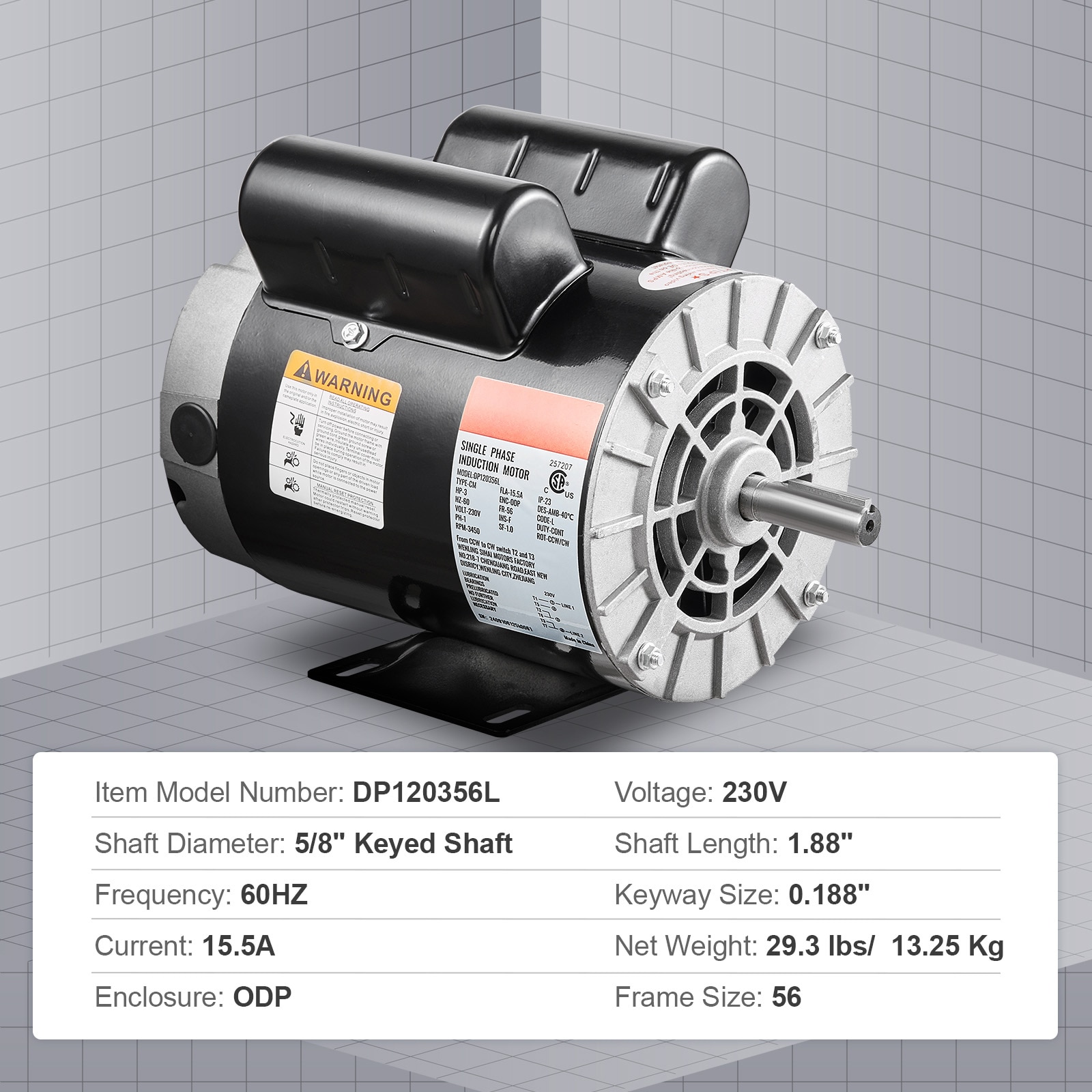

Specification: Item Model Number: DP120356L; Voltage: 230V; Frequency: 60HZ; Current: 15.5A; Rotation Speed: 3450rpm; SF: 1.0; Enclosure: ODP; Frame Size: 56; Shaft Diameter: 5/8" Keyed Shaft; Shaft Length: 1.88"; Keyway Size: 0.188"; Net Weight: 29.3 lbs/ 13.25 Kg

General
Series Name	3HP Air Compressor Electric Motor	Equipment Type	Generator
Start Type	Electric

Dimensions
Bore Hole Diameter (Inches)	0	Length (Inches)	12.1
Crankshaft Diameter	5/8-in	Oil Capacity (oz.)	0
Crankshaft Length (Inches)	1.88	Weight (lbs.)	30
Height (Inches)	8.3	Width (Inches)	6.7

Features
Crankshaft Orientation	Horizontal	Displacement (Cu. Centimeters)	0
Crankshaft Style	Straight	Engine Brand	VEVOR
Cylinders	Single cylinder	Engine Horsepower	3

Warranty
Warranty	1-year

Certifications
CA Residents: Prop 65 Warning(s)	No	California Air Resources Board Compliant	Yes

Miscellaneous
UNSPSC	26101500
