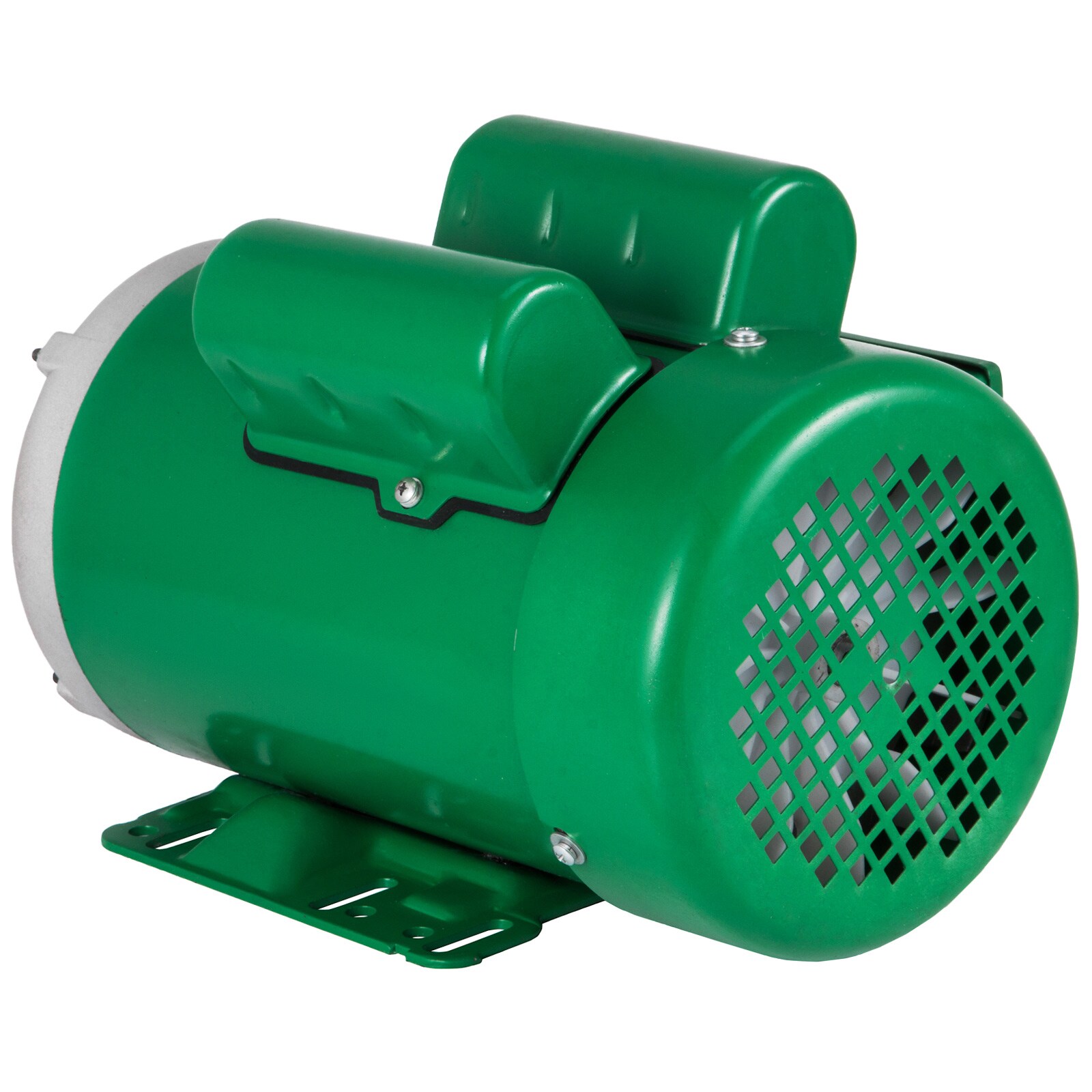

2 HP 1745 RPM Electric Motor: Single Phase and TEFC Enclosure and Fast Heat Dissipation; VEVOR's single phase electric motor is rated at 2 HP 1745 RPM and can be connected to 115/230V incoming power devices; This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment; Built tough to work tough, Our motor will have your equipment roaring for the next job; Single Phase Electric Motor; Excellent Working Efficiency; Sturdy Steel Construction; High-Speed Cooling Fan; [Package Content] 1 x 2HP Motor Farm Duty
2 HP air compressor motor can conserve energy, reducing power costs and maintaining a high working efficiency
It runs at 1745 RPM, Synchronous Speed: 1800 RPM; Our High quality steel shaft with low rotating noise
The motor housing is made of durable metal material, robust and reliable
Single Phase Electric Motor: This electric compressor motor runs at 2 HP; Phase: Single Phase, 4 Pole; Voltage: 115/230V; Full Load Amps: 15.8/8.3A; Frequency: 60 Hz; Frame: 145T Frame; Rotation: CW - CCW(Reversible); Push your machine to the limits with this well-balanced motor
Excellent Working Efficiency: The single phase electric motor features a 1745 RPM rated speed, and 1800 RPM synchronous speed; Shaft Diameter: 7/8 in / 2.5 cm; Shaft Length: 2.36 in / 6 cm; Service Factor: 1.15; Insulation Class: F: The upper hardness shaft is more durable; Works above and beyond while maintaining high performance
Sturdy Steel Construction: The 2 HP compressor motor shell is made of premium steel material; The robust and reliable body can guard the internal circuit well against overheating; The attached steel bracket also offers excellent stability; High-quality capacitors and ball bearings ensure long service life
High-Speed Cooling Fan: Enclosure Type: TEFC(Totally Enclosed Fan Cooled); The big fan at one end cools the 2 HP electric motor single phase for hours while running, even in dusty or damp environments; Multiple heat dissipation strips guard chips and objects against dropping into the motor and causing accidents; Power and protection that you can trust
Apply in Multiple Sectors: The air compressor motor 1745 rpm is commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields; For instance, the matching of water pumps, agricultural machinery, etc; Ensure our motor matches the specific specifications listed on your compressor before purchase
Specifications: Model: F145T2S4C; Phase: Single Phase, 4 Pole; Horsepower: 2 HP; Voltage: 115/230V; Full Load Amps: 15.8 / 8.3A; SF Amps: 19 / 9.6A; Frequency: 60 Hz; Rated Speed: 1745 RPM; Synchronous Speed: 1800 RPM; Frame: 145T; Shaft Diameter: 7/8 in / 2.5 cm; Shaft Length: 2.36 in / 6 cm; Rotation: CW - CCW(Reversible); ENC: TEFC; Service Factor: 1.15; Insulation Class: F; Reversible/Non-Reversible: Reversible; Max Ambient Temperature: 104 degrees Fahrenheit / 40 degrees Celsius; NEMA: L; CODE: J; DUTY: CONT; Motor Size(L x W x H): 14.17 x 8.66 x 8.66 in / 36 x 22 x 22 cm
