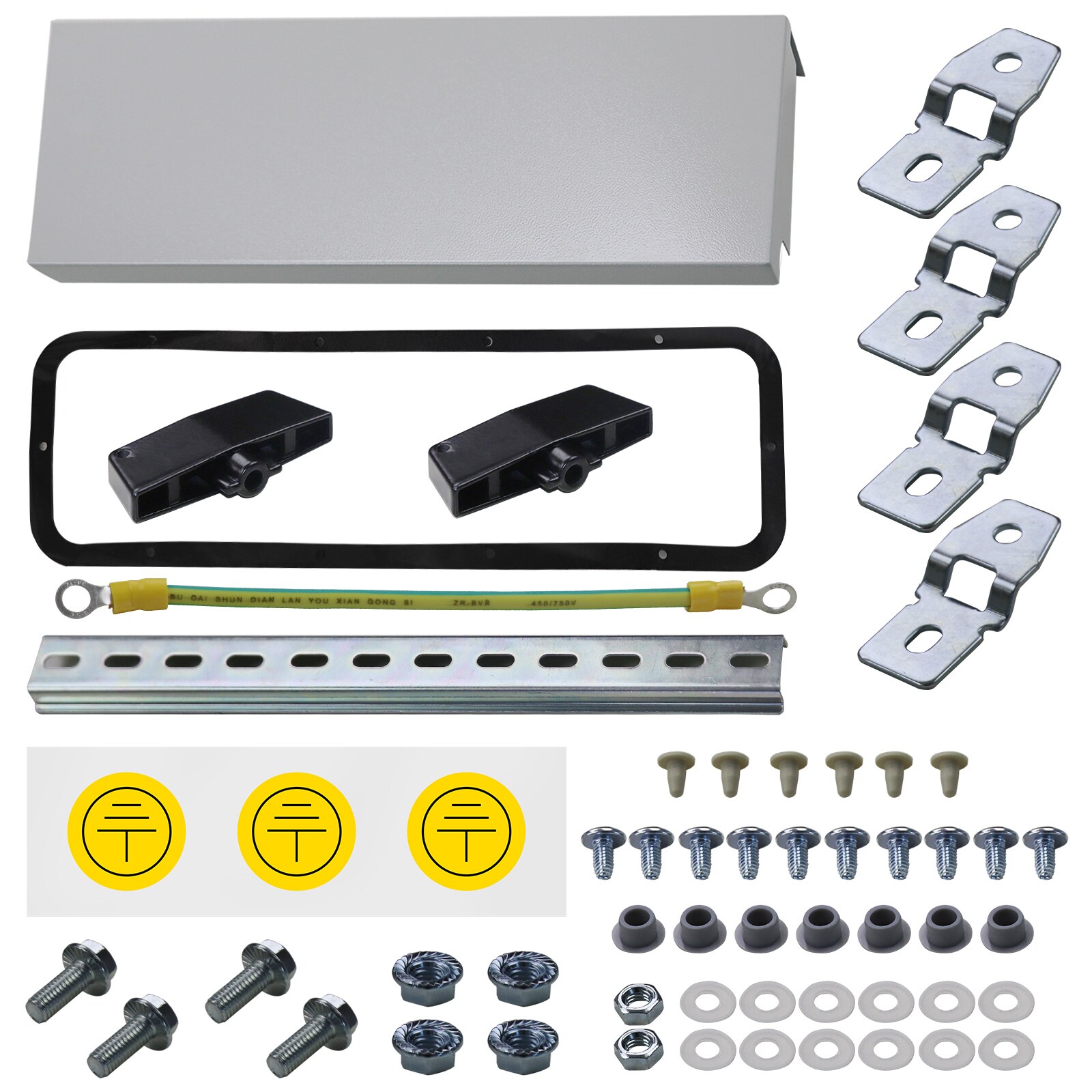

Electrical Enclosure Box--Begin your security setups!: The electric enclosure box is crafted from high-quality carbon steel; Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects; Widely used for indoor and outdoor applications, such as electricity, construction, and other industries; A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long; Choose a name you can trust, VEVOR;; [Package Content] 1 x Guide Rail; 1 x Rain Hood; 4 x Hanging Lug; 1 x Gasket (For Enclosing Plate); 1 x Earth Wire; 3 x Earth Label; 2 x Key; 8 x Plug; 1 x Set of Accessories Package; 1 x Set of Fasteners(Quantity Various on Type)
Certifications: TUV, CE
Precision cut and welded from cold-rolled carbon steel for greater wear resistance
The housing provides the best protection level of IP65 and uses a high-quality lock cylinder
Sturdy Steel Construction: Certification:TUV, CE; The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding; It has stronger wear resistance and keeps your equipment well protected in harsh environments;

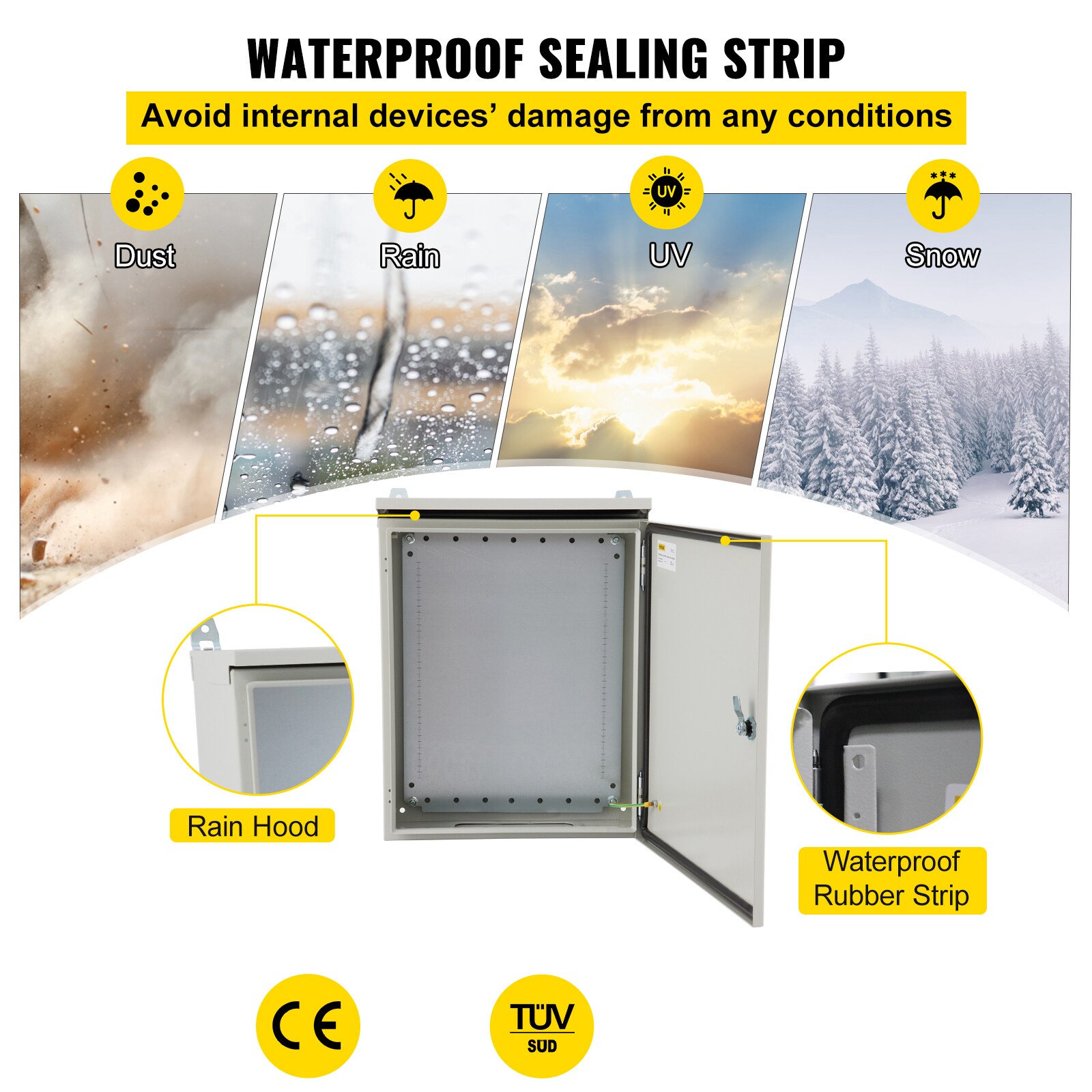

IP65 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65; A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened;
Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off; The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing;
Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components; Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall;
Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading; The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables; Ideal for various applications ranging from industrial equipment to home devices;
Specification: Model: ST5325; Color: RAL 7035 (White Gray); Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel; Inner Plate: 0.06 in / 0.15 cm Galvanized Plate; Finish: Powder Coating(Surface Pickling and Passivization); Certification: TUV, CE; Ratings: NEMA Type 4; Protection Grade: IP65, IK10; Construction: Continuously Welded; Ambient Temperature: -40 to 122 degrees Fahrenheit / -40 to 55°C; Gasket Material: Seamless Foam/ Nylon(washer or plug); Outer Dimensions(H x W x D): 20 x 12 x 10 in / 50 x 30 x 25 cm; Inner Dimensions(H x W x D): 19.6 x 11.7 x 9 in / 49.7 x 29.7 x 22.7 cm; Galvanized Backplate Dimensions(H x W): 18.3 x 10 in / 46.5 x 25 cm; Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm; Net Weight: 28.44 lbs / 12.9 kg
