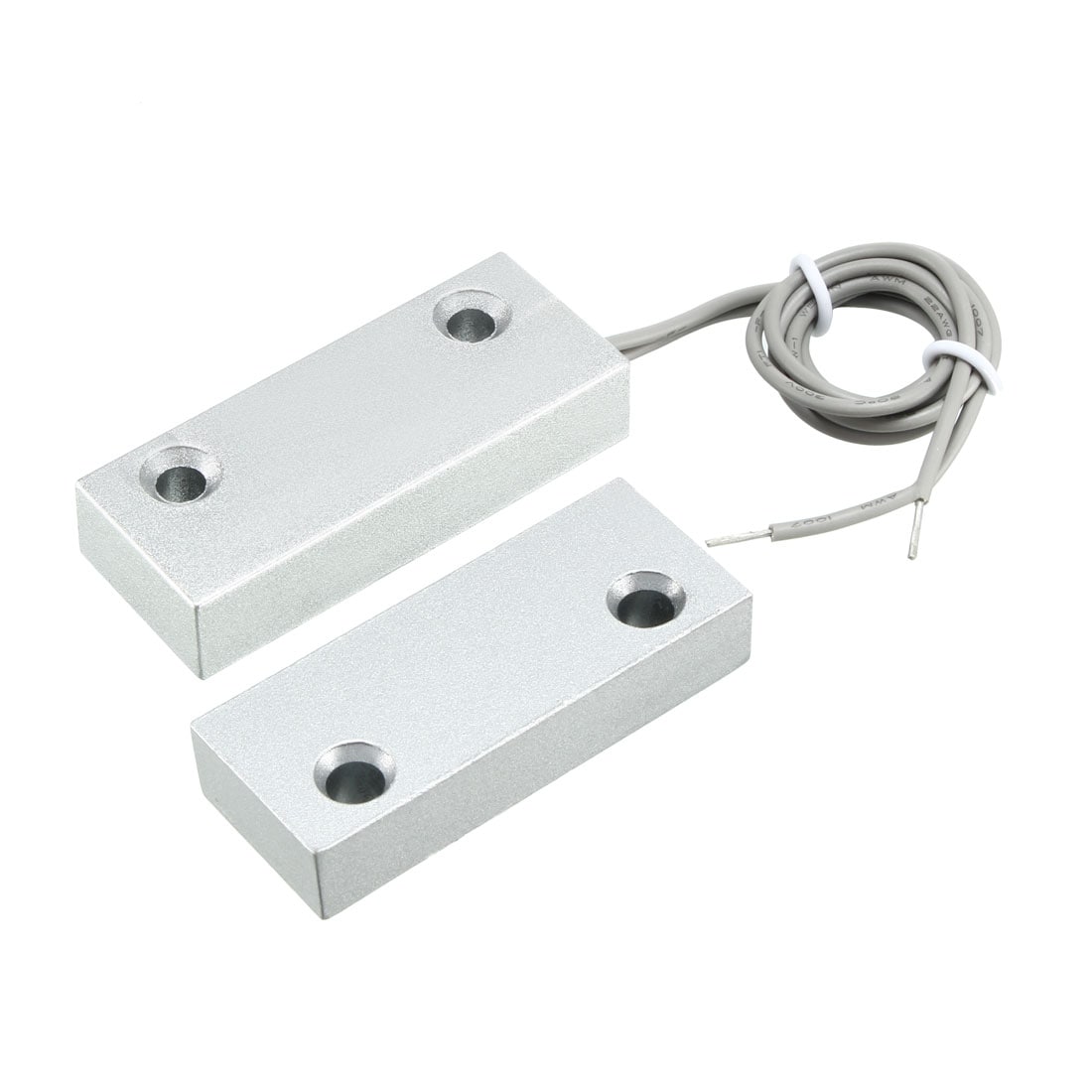

Unique Bargains NC Alarm Security Rolling Gate Garage Door Contact Magnetic Reed Switch Silver Gray MC-59

Description:
1.Actuation Distance: 40mm.Silver gray Metal Housing.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!

Specification:
Product Name: Magnetic Door Switch
Model: MC-59
Contact Type: NC
Actuation Distance: 40mm
Max. Current: 0.3A
Max. Power: 30W
Working Voltage: DC200V
Size(Approx): 49 x 19 x 9.7mm / 1.93 x 0.75 x 0.38 -inch (L*W*H)
Hole Dia.: 4.2mm
Cable Length(Each): 23cm / 9.1-inch
Material: Metal
Wire Type: 1007UL#22AWG
Color: Silver Gray
Net Weight: 106g

Package Content:
1 x Magnetic Door Switch, 4 x Screws
