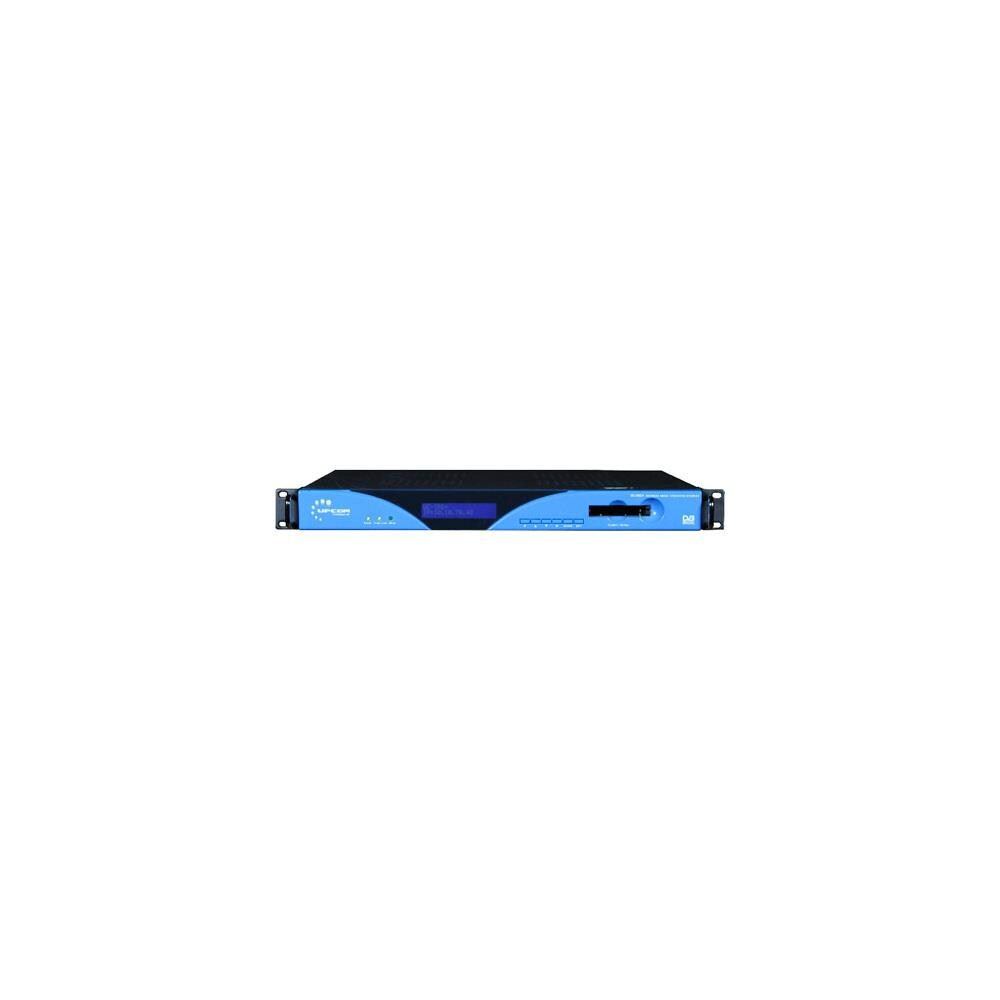

Upcom Technologies UPC-UC-350EP SDI and Composite Video MPEG Encoder

The UC-350E+ SD MPEG-2/4 ENCODER is a broadcast-level real-time encoder compatible with MPEG-2 and MPEG-4 DVB standards. It is designed for TV broadcasting, news contribution, content delivery, distribution and DTH applications. The UC-350E+ SD MPEG-2/4 ENCODER model includes SDI and Analog Inputs and allows for the use of standard IRD's. It also includes an ASI input with RE-MUX option, allowing to daisy chain encoders. UC-350E+ encodes one video signal and up to two different audio channels ( 2 stereo) at the same time, as well as supports MPEG-1 Audio layer 2, LC-ACC, HE-AAC. A wide range of data rates are supported including: ( 0.25-10Mbps for H.264 encoding, and 0.5-15Mbps for MPEG-2 encoding). Features SDI and Composite Video MPEG Encoder H.264/MPEG-4 AVC level 4.0 video encoding MPEG-2 video encoding MPEG-1 Audio Layer II audio encoding LC-AAC audio encoding UDP and unicast/multicast output support Composite video input SDI digital video input 4 XLR and 4 RCA audio inputs PAL and NTSC SD video formats Front Panel and Software control IP Output Two Year Factory Warranty Video input:1 x Analog CVBS BNC connector, 1 x SD-SDI BNC connector Audio input:Analog stereo audio XLR interface, Analog stereo audio BNC interface, SD-SDI embedded audio Video Resolution: 720 x 576, 352 x 288, 320 x 240, 320 x 180, 176 x 144, 160 x 120, 160 x 90 50Hz , 720 x 480, 352 x 288, 320 x 240, 320 x 180, 176 x 144, 160 x 120, 160 x 90 59.94Hz Video Encoding:MPEG-2, H.264/MPEG-4 AVC level 4.0 on SD Video Bit Rate: 0.25Mbps-15Mbps MPEG-4, 0.25Mbps-15Mbps MPEG-2 Video Rate Control: CBR/VBR GOP Structure: IBBP Audio Encoding: MPEG-1 Layer 2, LC-AAC Audio Sampling Rate: 48KHz Audio Resolution: 24-bit Audio Bit Rate: 64Kb/s-384Kb/s each channel Stream output: 2 x ASI outputs BNC connector, IP STREAMING Dimensions: 19-"W 2-"H 18-"D Operating Temperature: 0-45C Specifications Weight: 9 lbs
