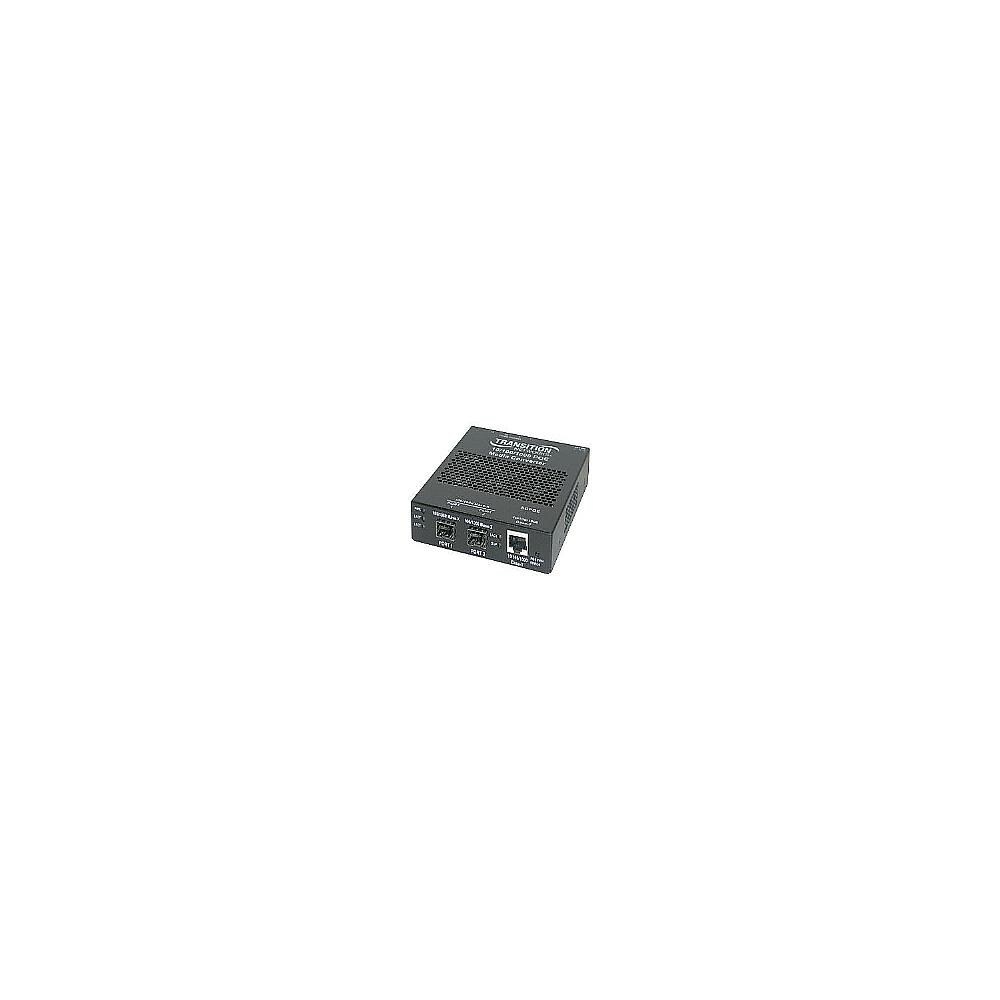

Transition's AC powered PoE media converters combine data received over a fiber optic link with - 48VDC power-providing power to data terminal equipment power devices over unshielded twisted pair cable. The PoE converters are power sourcing equipment and are fully compatible with powered devices and #8220;PD-" that comply with the IEEE802.3: 2003af standard. The PoE converter is fully compatible with devices that comply with the IEEE802.3af standards as well as select legacy PD's. The PoE converter is capable of inserting power on data pairs or spare pairs of the MDI. Features Type - Media converter Enclosure Type - External Connectivity Technology - Wired Cabling Type - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet Data Transfer Rate - 1 GBps Optical Wave Length - 850 nm MAC Address Table Size - 8K entries Max Transfer Distance - 1800 ft. Features - Power over Ethernet and #8220;PoE-", auto-negotiation, AutoCross, Far End Fault and #8220;FEF-", Link Fault Pass Through function and #8220;LFP-" Compliant Standards - IEEE 802.3, IEEE 802.3af Interfaces - 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female 1 x network - Ethernet 1000Base-SX - SC multi-mode female Compliant Standards - UL 1950, EN55022 Class A, FCC Part 15 B Power Over Ethernet and #8220;PoE-" - Yes Power Device - Power adapter - external Voltage Required - AC 120/230 V and #8220-50/60 Hz -" Power Consumption Operational - 20 Watt Min Operating Temperature - 32 degrees F Max Operating Temperature - 104 degrees F Humidity Range Operating - 5 - 95 Dimension - 11 L x 9 W x 4 D in. Item Weight - 2 lbs.
Transition's AC powered PoE media converters combine data received over a fiber optic link with - 48VDC power-providing power to data terminal equipment power devices over unshielded twisted pair cable
The PoE converters are power sourcing equipment and are fully compatible with powered devices and #8220;PD-" that comply with the IEEE802
