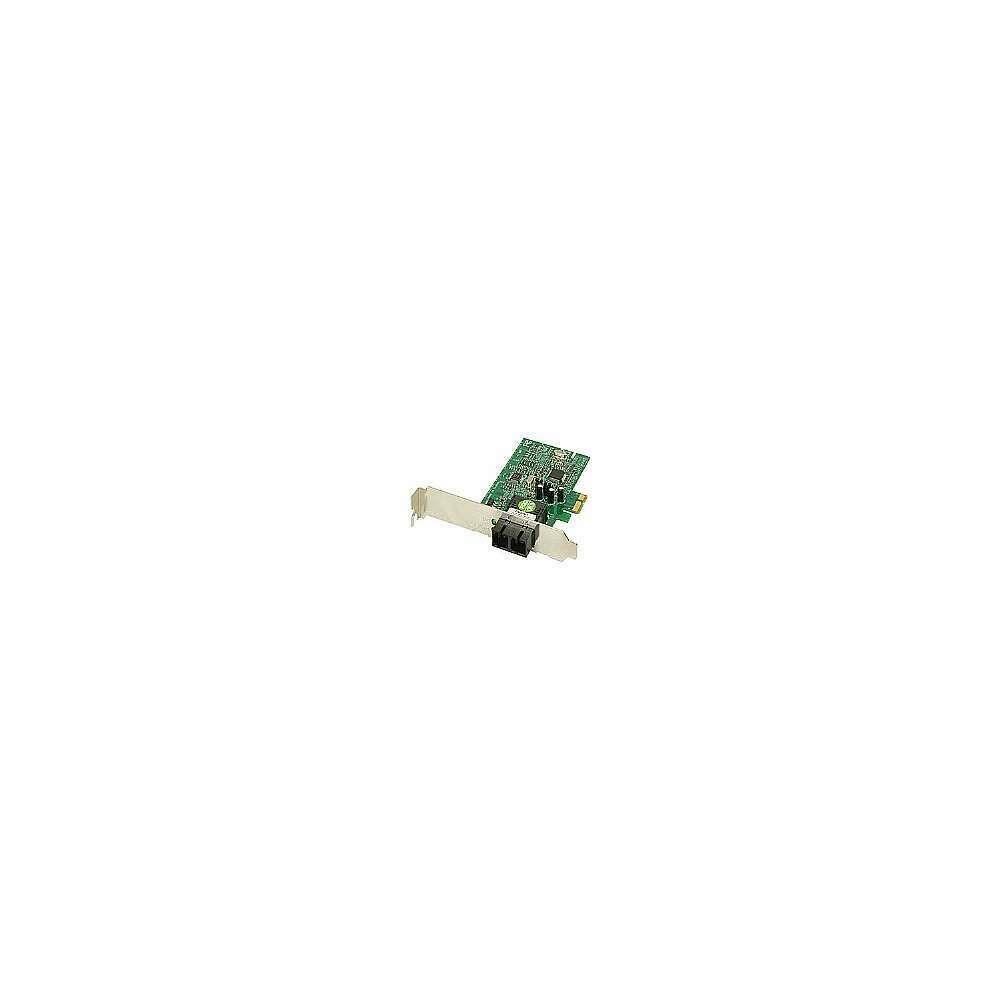

Transition Networks N-FXE-ST-02 Transition Network Adapter, Pcie Low Profile, 10 and 100 Ethernet 1300 Nm

Transition N-FXE-ST-02 is a fiber Fast Ethernet to PCI-Express and #8220;PCIe-" bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200 MBps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment. The PCI-Express and #8220;PCIe-" design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption. For users equipped with PCI-Express systems, N-FXE-ST-02 provides the ability to easily build or connect to the Fast Ethernet fiber networks. Specifications General Device Type - Network adapter. Form Factor - Plug-in card - low profile. Interface and #8220;Bus-" Type - PCI Express 1.1 x1. PCI Specification Revision - PCIe 1.1. Networking Ports - 10/100 Ethernet. Connectivity Technology - Wired. Cabling Type - Ethernet 100Base-FX. Data Link Protocol - 100Mb LAN. Data Transfer Rate - 100 MBps. Max Transfer Distance - 1.2 miles. Optical Wave Length - 1300 nm. Remote Management Protocol - ASF 2.0. Status Indicators - Link/activity. Features - Flow control, VLAN support, wake on LAN and #8220;WOL-", full duplex mode, Jumbo Frames support, PXE support. Compliant Standards - IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x. Dimension - 6 L x 5 W x 1 D in.
