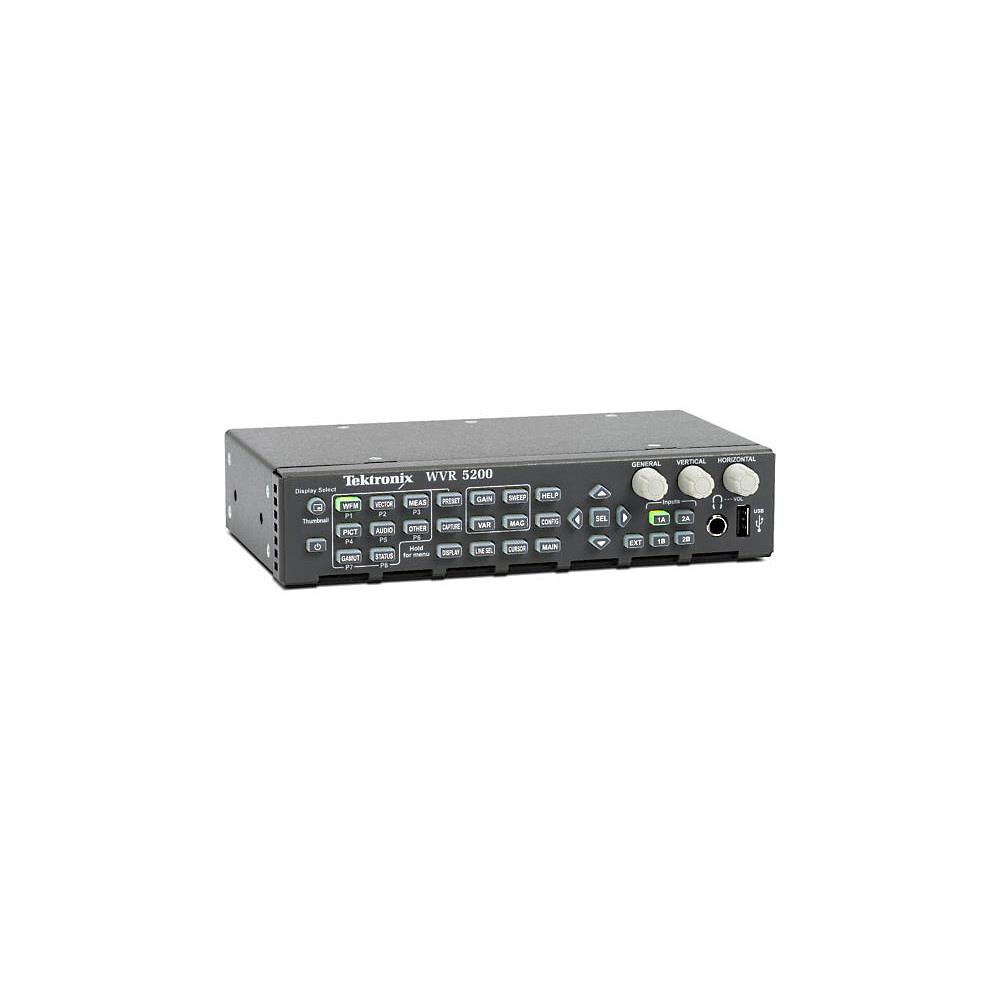

The Tektronix WVR5200 Compact Video Waveform Rasterizer provides an ideal solution for basic video and audio ( with Option AUD) monitoring needs in a convenient 1RU, half-rack, short-depth form factor, suitable for space-constrained environments. This versatile instrument can accept power from a 12 V DC source, a battery, or a 100-240 V AC converter. Standard configuration provides multiformat support for HD-SDI ( SMPTE 292), SD-SDI ( ITU-R BT.601) and Dual Link ( SMPTE 372) signal formats. The instrument provides automatic format detection for 3G/HD/SD-SDI on each of the four inputs. Option 3G is required for support of Level A and Level B SMPTE 425/424 formats. Optional audio monitoring support for 16 channels of Embedded AES/EBU Audio ( Option AUD) provides a variety of audio level bar monitoring, multichannel surround sound display 1 and flexible Lissajous display. A front-panel headphone port can be used for easy compliance verification of digital audio without the need for an additional piece of equipment. The Tektronix WVR/5200 provides the reliability of the Tektronix waveform rasterizers family in a compact, basic monitoring product. The Tektronix WVR-5200 offers uncompromised monitoring quality with sharp CRT-like traces, patented Gamut displays, picture thumbnail, display freeze, and an error log for 10,000 events for efficient content compliance verification. Features 1RU height, Half-rack Width, Short-depth ( 5.5 in. or 14 cm) Instrument, Ideal for Space-constrained Environments 4-pin XLR DC Power Input with AC Power Adapter for both AC/DC Operation Four SDI Inputs with Multiformat, Multistandard Support Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring Comprehensive Data Monitoring ( Option DATA) helps to Quickly Resolve Difficult Content Quality and Reliability Issues Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy Waveform display of external reference ( Black Burst
The Tektronix WVR5200 Compact Video Waveform Rasterizer provides an ideal solution for basic video and audio ( with Option AUD) monitoring needs in a convenient 1RU, half-rack, short-depth form factor, suitable for space-constrained environments. This
