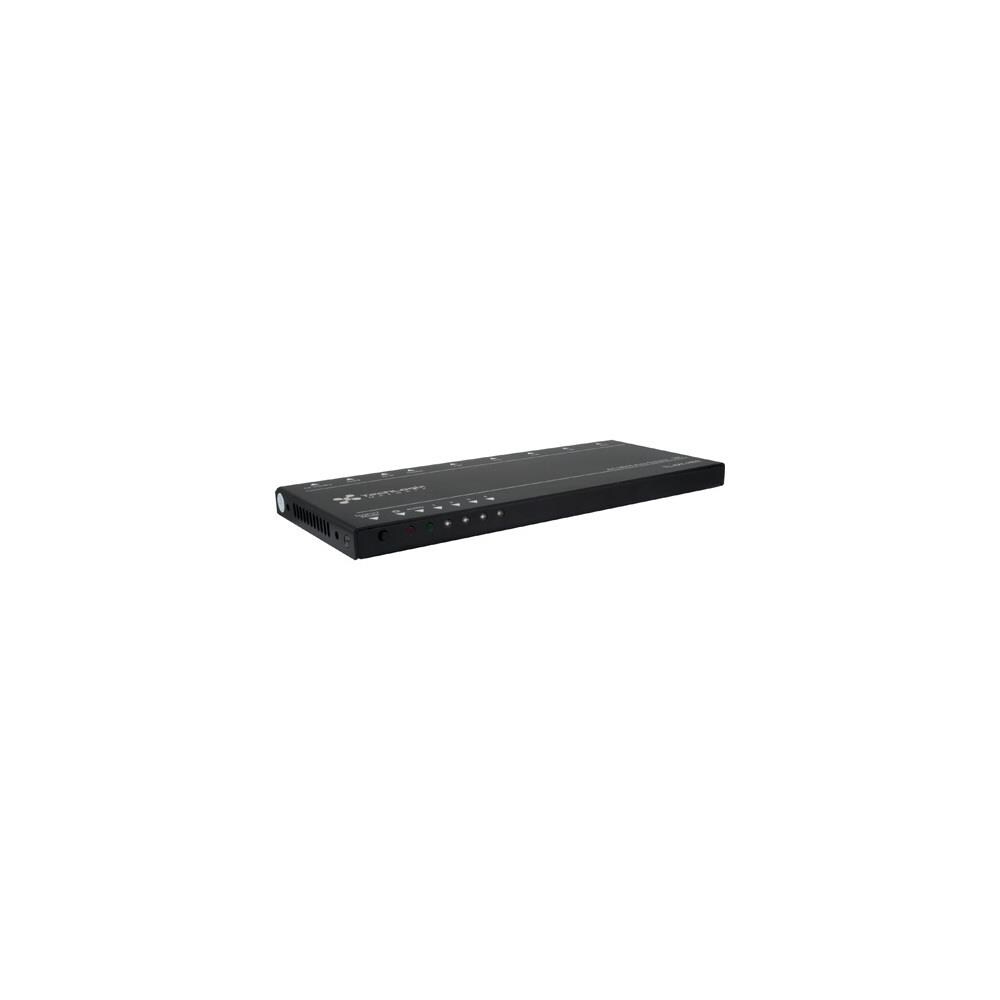

The TL-4X1-HD2 is an ultra-thin HDMI switcher with 4 inputs and 1 output. It features auto-switching and manual-switching. The TL-4X1-HD2 supports intelligent EDID management via 4-pin DIPswitch in rear panel, with 5 built-in EDID presets and 10 user-definable EDID settings. Compatible with HDMI 2.0 and HDCP 2.2, the TL-4X1-HD2 can transmit 4K 60 4:4:4 with HDR and 1080P with or without 3D. Features EDID management Supports 4K 4:4:4 HDMI video HDCP 2.2 compliant Supports HDR10 and Dolby Vision Controlled via IR and RS232 Ultra-thin size Specifications HDMI Inputs: 4x HDMI type A receptacle HDMI Output: 1x HDMI type A receptacle IR Input: 1x 3.5mm TRS jack RS232 Control: 1x 3-pin pluggable terminal block EDID Data Selector: 1x 4-pin solider switch Source Select Button ( Front Panel): 1x button DC 5V Power/Firmware Update: 1x mini USB type B receptacle Resolution: HDMI: 480I, 480p, 576I, 576P, 720p, 1080I, 1080p, 4Kx2K 60Hz 4:4:4 Video Compliance: HDMI 1.4/2.0 with HDR, HDCP 1.4/2.2, DVI1.0 Bandwidth: 18 Gbps Enclosure: Painted aluminum Maximum Power Consumption: 4.2W Weight: 1.35 lbs
The TL-4X1-HD2 is an ultra-thin HDMI switcher with 4 inputs and 1 output. It features auto-switching and manual-switching. The TL-4X1-HD2 supports intelligent EDID management via 4-pin DIPswitch in rear panel, with 5 built-in EDID presets and 10
