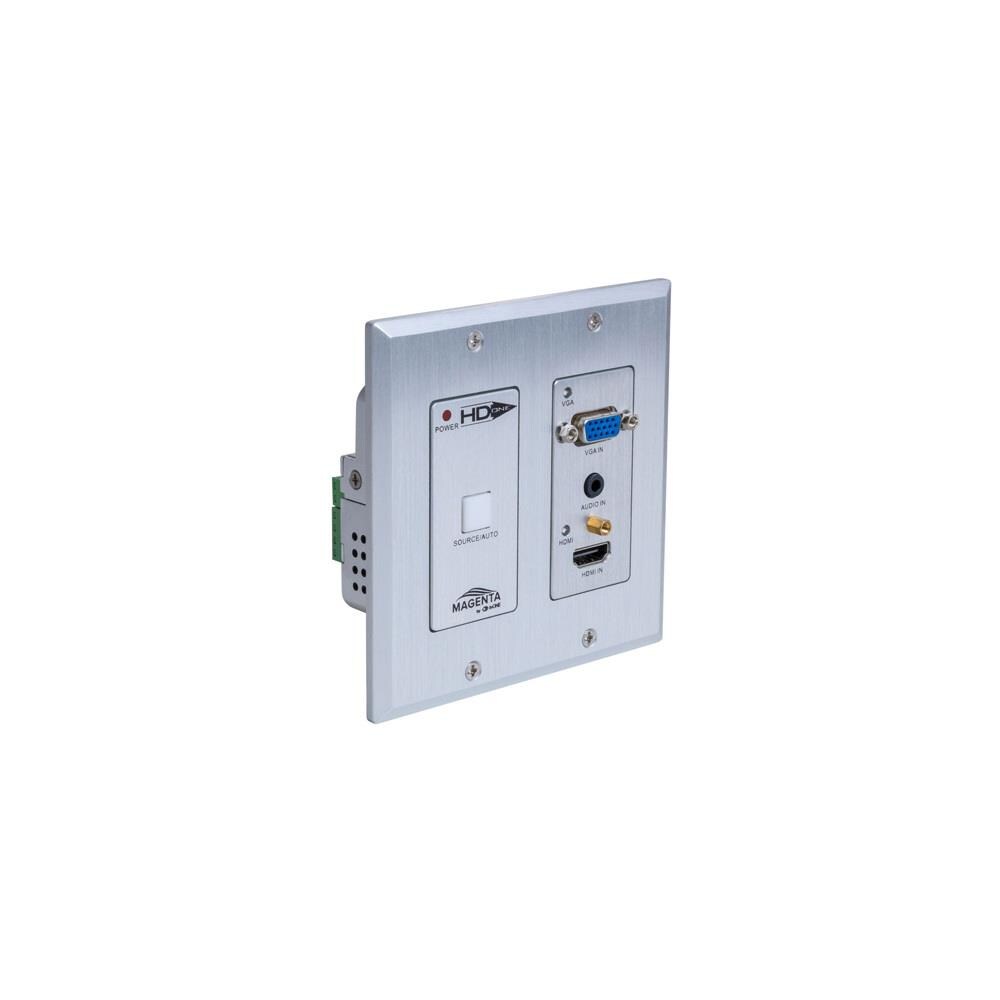

TV One TV1-MG-WP-611-US HD-One HDBT Wall Plate- Transmitter with VGA and HDMI 1.4 Input

The tvONE MG-WP-611-US HD-One wall plate Transmitter series enables switching and extension for HDMI ( up to 4K) and VGA ( up to 1080p) signals, while providing HD extension up to 70 meters ( 230ft) and 4K extension up to 40m ( 130ft), Obtainable in regionally specific form factors, the MG-WP-611-US and MG-WP-611-EU, are easily powered by a local power supply or the MG-CT-612 Receiver with integrated Power over HDBaseT ( POH). You can also connect to any Magenta HD-One RX or tvONE CORIO products providing extra flexibility and reliability. Features HD-One HDBT Wall Plate - TX with VGA and HDMI 1.4 Input HDMI, VGA and Audio inputs with RS-232 control Inputs can be switched automatically, manually or by RS-232 control High quality matte anodized aluminum finish Delivers full uncompressed HD video 3D and 4Kx2K, RS-232 and IR HD extension up to 70 meters and 4K extension up to 40m Automatically match signals to display native resolution with built-in scaling PoH allows powering from the receiver Control via Front button and RS-232 control Audio impedance>10 HDCP compliance HDCP 1.4 Extension 1080p up to 230 ft , 4K up to 130ft Bandwidth 10.2Gbps Power Via 12V 2A DC power supply or POH from Receiver Consumption 9.6w Operating temp -10to 40 Humidity 10 to 90 Dimensions 3.5-" x 4.1-" x 1.7-" 1x HDMI 1x VGA 1x 3.5mm Analog audio 1x HDBT via RJ45 1x RS-232 via 3-pin terminal Warranty: 3 Years Warranty
