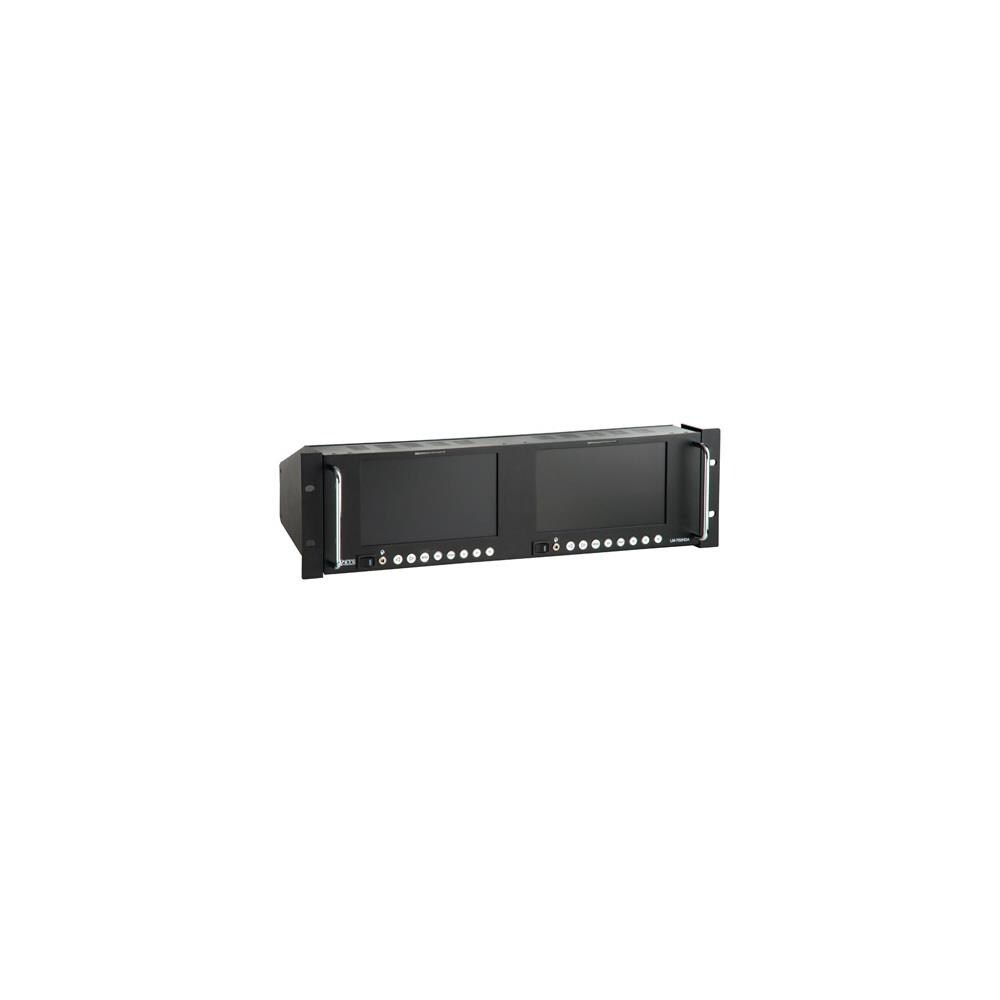

TV One TV1-LM702HDA HDTV Dual 7 in. Rackmount Color LCD Monitor with Audio

The TV One LM-702HDA is a high performance Multi-format, Dual 7-" Color LCD Monitor for the broadcast and professional market. A multitude of video signal formats may be accurately monitored. The high brightness, wide viewing angle, excellent contrast ratio and high definition color result in an outstanding image. The unit features inputs for SDI ( either SD or HD) with an active output, Analog RGBHV, YPbPr Component Video, a Composite Video and a YC input. NTSC and PAL Television Standards are supported and automatically detected. SDI, AES and analog audio monitoring is standard and front panel tally LED's can be activated externaly via the DB9 connector. The OSD Menu contains all the necessary controls to adjust Contrast, Brightness, Sharpness, Color Level ( RG- B), and other parameters necessary for optimum monitor performance. Results of these adjustments can be viewed via the On Screen Display. A Sync Delay ( Pulse Cross) mode allows viewing of the vertical and horizontal sync and vertical blanking intervals. A Blue Only mode facilitates accurate monitor setup when viewing color bars. A rack mount kit is included that can tilted up or down. Although the monitor has excellent viewing angles, the tilt feature can be beneficial when circumstances necessitate mounting the monitor considerably above or below normal eye level. Features HDTV Dual 7 in. Rackmount Color LCD Monitor with Audio Inputs: SD/HD-SDI, RGBHV, YPbPr, CV and YC Resolutions up to 1024x768, 1080p High Brightness, Pro Grade LCD Panels 262,000 Colors 400:1 Contrast Ratio Blue Only and Sync Delay modes for easy setup Audio Monitoring and Dual Tally LED's 140Left/Right and 110Up/Down View Angles Vertically Tiltable Rackmount Housing Locking External DC Power Supply Specifications Weight: 29 lbs
