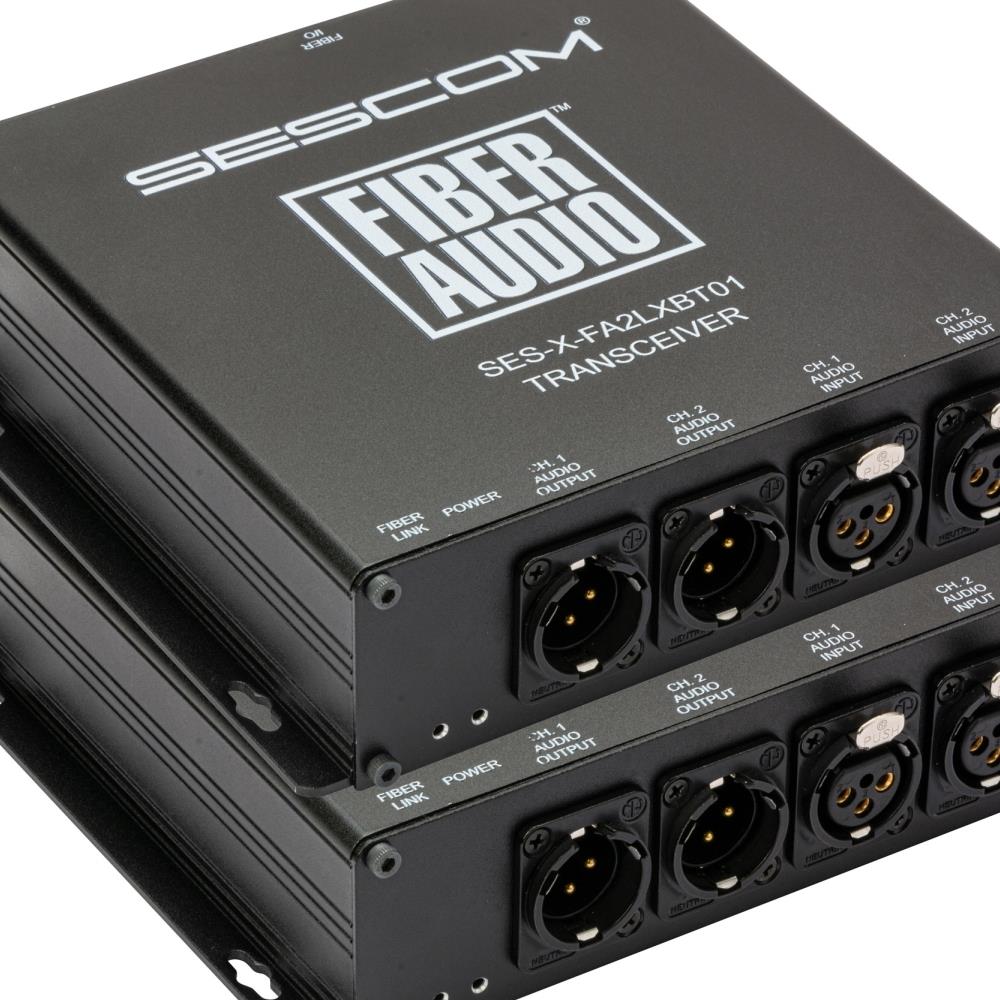

The Sescom X-FA2LXBT01 sends Balanced and Un-balanced 24 Bit PCM - AES3 encoded line level audio signals over multimode or single mode optical fiber at distances up to 1600 feet ( multimode) or up to 12.4 miles ( single mode). Sescom's new and improved X-FA2 designs eliminates potential crosstalk issues. X-FA2LXBT01 transceivers house two balanced 3-Pin XLR Female inputs and two balanced 3-Pin XLR Male outputs. Professional bayonet style ST fibers connectors ensure a consistent, uninterrupted signal. Its plug-and-play design ensures fast, adjustment-free installation and operation. LED indicators are provided to instantly monitor the system operating status. Typically, fiber audio extender products do not fully support professional balanced audio interfaces. Our audio signal extenders are designed by audio engineers using proven low noise un-balanced and balanced audio line drivers and receivers. This design improvement improves system impedance matching for inputs and outputs, which allows for a cleaner low noise signals. All Sescom optical and electrical interfaces conform to the international standards of compliance including FCC and RoHS Certified making them a perfect fit for eSports venues, Stadiums, Live Event Stages, Broadcast TV, Theme Parks, Distance Surveillance and Professional AV. Features 24-Bit Digitally Encoded Analog Audio 2-Channel XLR Bidirectional Audio to Fiber Transmission ST Fiber Connector Transmission Distance up to 12.4 miles over Singlemode Fiber No Loss in Signal Quality Adjustment Free Plug and Play Operation Enable Cascaded Audio Setups Line Level Balanced Audio Operation Indicator LEDs Monitor Fiber Link and Power Housed in Rugged Aluminum Enclosures FCC and RoHS CertifiedNot for use in Intercom Applications Includes: 2-Bidirectional 2CH Transceivers, 2-12VDC/2A power supplies Specifications Unity Gain: 0dB Sample Rate: 48kHz, 24K bit rate Frequency Response: 20Hz - 20kHz Signal to Noise Ratio:> 90dB Ref. 4dBu, A Weighting Total
The Sescom X-FA2LXBT01 sends Balanced and Un-balanced 24 Bit PCM - AES3 encoded line level audio signals over multimode or single mode optical fiber at distances up to 1600 feet ( multimode) or up to 12.4 miles ( single mode). Sescom's new and improved
Made from Top Quality material
