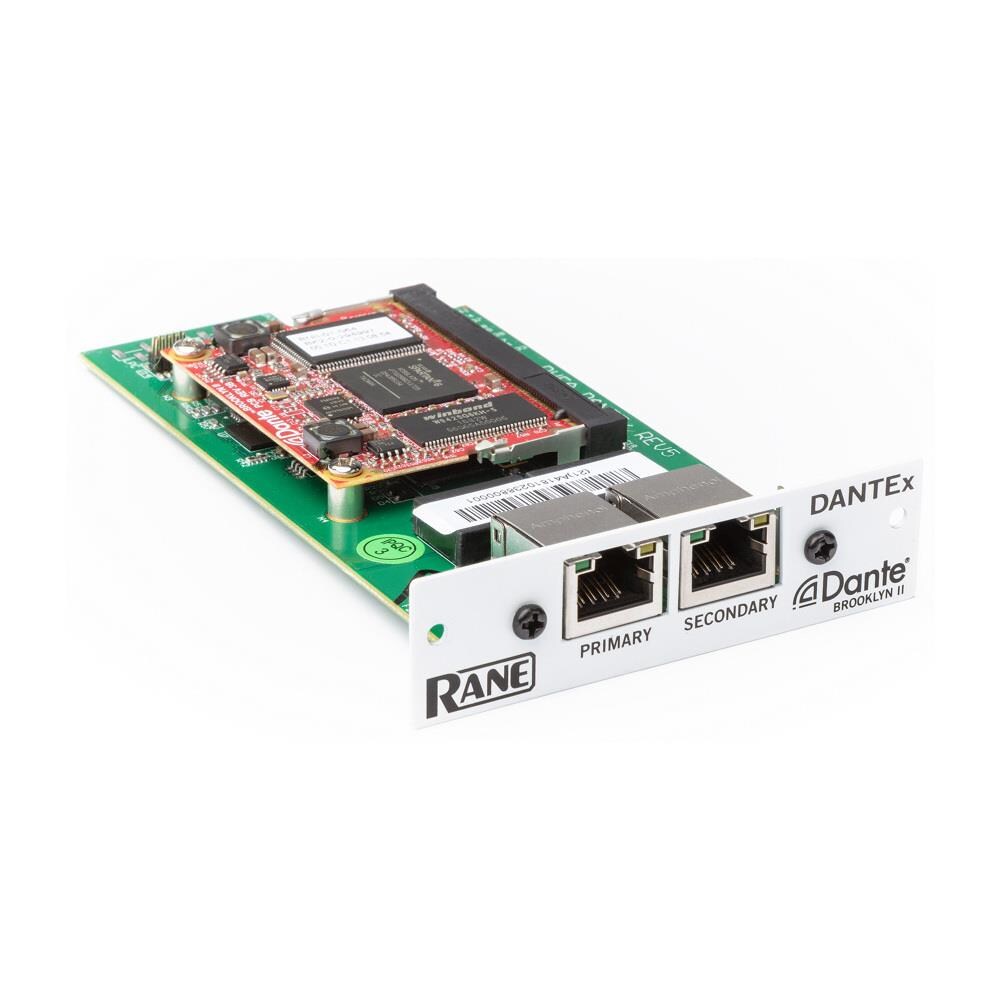

Rane RNE-DANTEX Plug-in Dante Expansion Card for Terminal 1010x

The Rane DANTEx is an optional plug-in card for the Rane Terminal 1010x that allows system designers to integrate a Terminal 1010x processor with Dante-equipped microphones, amplifiers, breakout boxes, mixing consoles and other supported devices. It provides 32 inputs and 32 outputs of Dante digital audio with supported samples rates of 44.1kHz, 48kHz, 88.2kHz and 96kHz. Built-in sample rate conversion ( SRC) converts the Dante sample rate to the fixed 48kHz sample rate required by the Terminal 1010x. The Dante interface is managed using Audinate's Dante Controller software. Dante controller is a free software application that enables the user to route and configure devices on a Dante network. Features Built-in 48kHz sample rate converter ( SRC) Provides 32 x 32 Danteconnectivity for RANE Terminal 1010x Supports 44.1kHz - 96kHz sample rates for connected devices Audinate Brooklyn II card Dual-port Gigabit Ethernet switch 32 x 32 channel count 44.1kHz - 96kHz Sample-rate conversion ( SRC) for all incoming and outgoing signals Includes: 1x DANTEx 1x Installation Guide 1x Safety and Warranty Manual Specifications Operating Temperature: 0and deg, - 45 Cand deg, ( 32and deg, - 113and deg, F) Dimension ( height x width x depth): 0.9-" x 5.19-" x 3.37-" ( 22.86 x 131.83 x 85.60mm) Weight: 0.5 lbs
