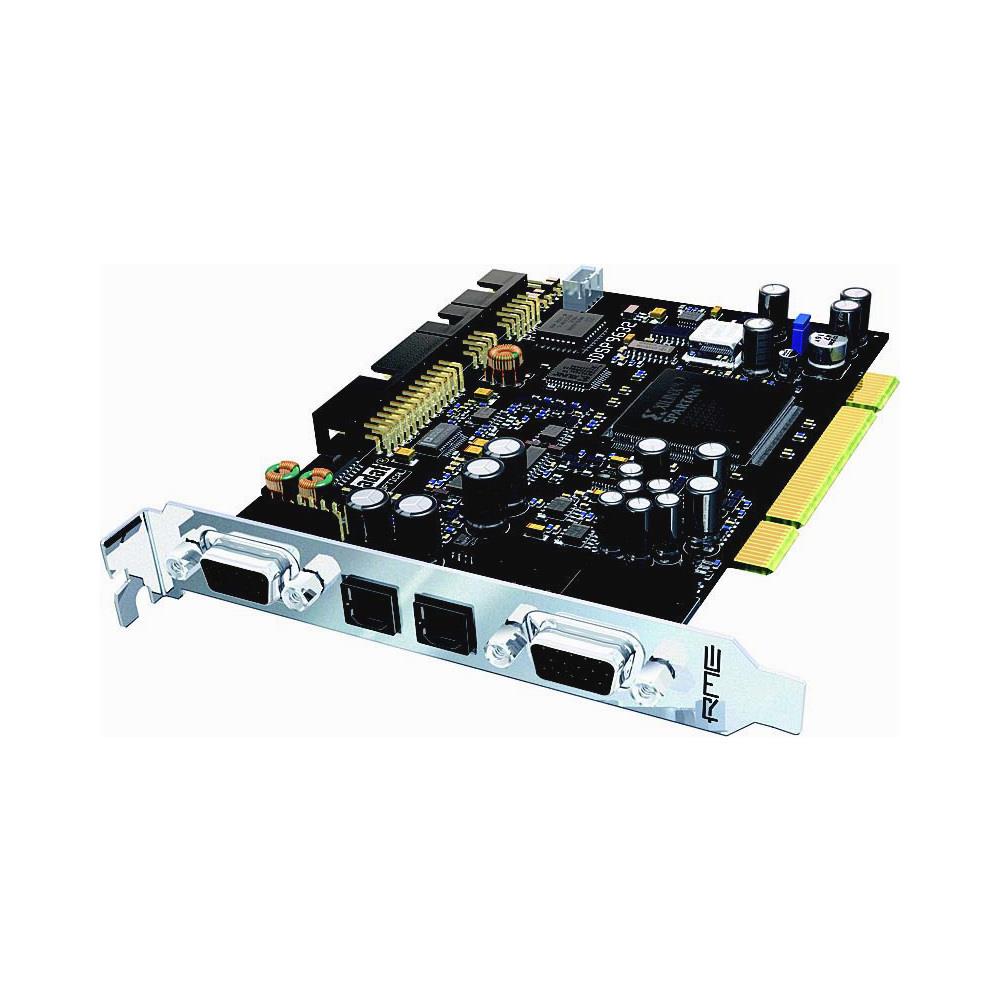

RME presents the world's most versatile PCI Audio Interface - the Hammerfall DSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192 kHz AD- and DA-converters with more than 110 dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional hi-quality analog expansion boards, the famous TotalMix, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.The HDSP 9632 a basic version including two RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os and the SPDIF I/O are unbalanced. XLR breakout cables areas an option (headphone: Neutrik TRS locking jack), turning analog and AES/EBU into balanced mode. FeaturesBalanced stereo analog in- and output, 24-Bit/192kHz, > 110 dB SNROptional analog expansion boards with 4 balanced in- or outputsAll analog I/Os capable of 192 kHz, constant number ofchannels1 ADAT digital I/O, supporting 96 kHz S/MUX operation1 SPDIF digital I/O, 192 kHz-capable1 Breakout cable for coaxial SPDIFUp to 16 I/Os can be used simultaneously!1 Stereo headphone output, parallel to the analog out, additional level settings1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cableDIGICheck, RMEs unique metering- and analysing toolSpecificationsHDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware
Balanced stereo analog in- and output, 24-Bit/192kHz, > 110 dB SNR
Optional analog expansion boards with 4 balanced in- or outputs
