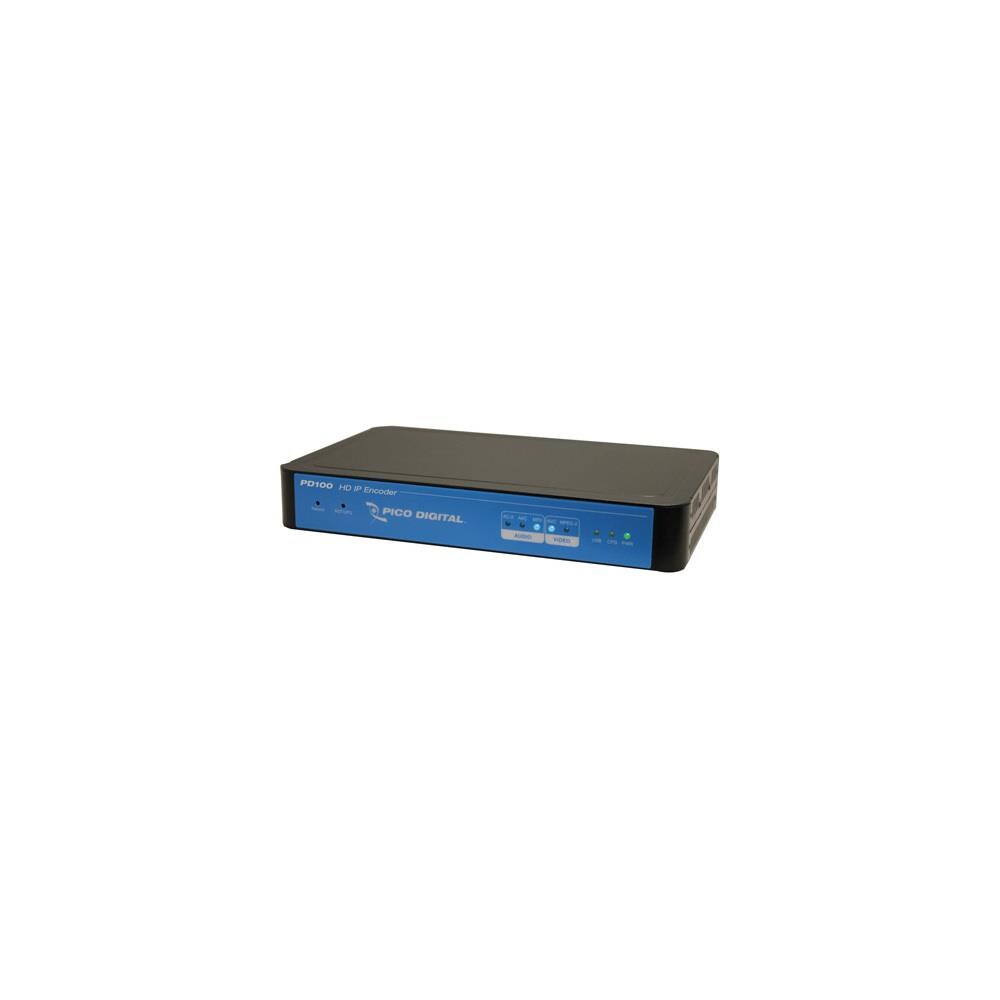

The PD100 is a MPEG-2 or H.264 single channel encoding device used to stream video and audio across any IP network. The unit can be used in CATV systems, security or hospitality applications where linear IP video is required. The PD100 accepts HDMI in the clear, component or composite video input and audio input via embedded HDMI, digital S/PDIF or analog. Now you can give your subscribers the digital media experience than you imagined. With Pico Digital's CONDOR, you get an upgradeable set-top box platform and headend broadcast system that empowers you to efficiently convert to all-digital today, while adding new services over time with our future-proof middleware. CONDOR is more than just video. Features HDMI, component, and composite inputs with auto detection Dual mode: H.264/MPEG-2 selectable Video resolution: up to 1080p Audio format: MPEG-1 LII AC-3 passthrough Easy installation and use Web GUI for setup and control IP output Closed Caption supported Specifications Ethernet ( Output): 1 GbE, RJ-45 USB ( Optional): USB 2.0 Video Input: HDMI( clear), YPbPr, composite Audio Input: Analog, S/PDIF ( coax, optical) Video Format: MPEG-2, H.264 Audio Format: MPEG-1 LII, AAC, AC-3 passthrough Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video bitrate: MPEG-2 HD: 10 Mbps to 20 Mbps, MPEG-2 SD: 2 Mbps to 8 Mbps, H.264 HD: 2 Mbps to 10 Mbps, H.264 SD: 1 Mbps to 4 Mbps Audio Bitrate: 128 Kbps, 256 Kbps, 384 Kbps Streaming Protocols: UDP/RTP multicast or unicast, TCP unicast Closed Caption: Yes Operating Temperature: 0 degrees C to 40 degrees C Power Supply: 12 VDC, 1.5 A Consumption: 500 mA Weight: 2.07 lbs
The PD100 is a MPEG-2 or H.264 single channel encoding device used to stream video and audio across any IP network. The unit can be used in CATV systems, security or hospitality applications where linear IP video is required. The PD100 accepts HDMI in
