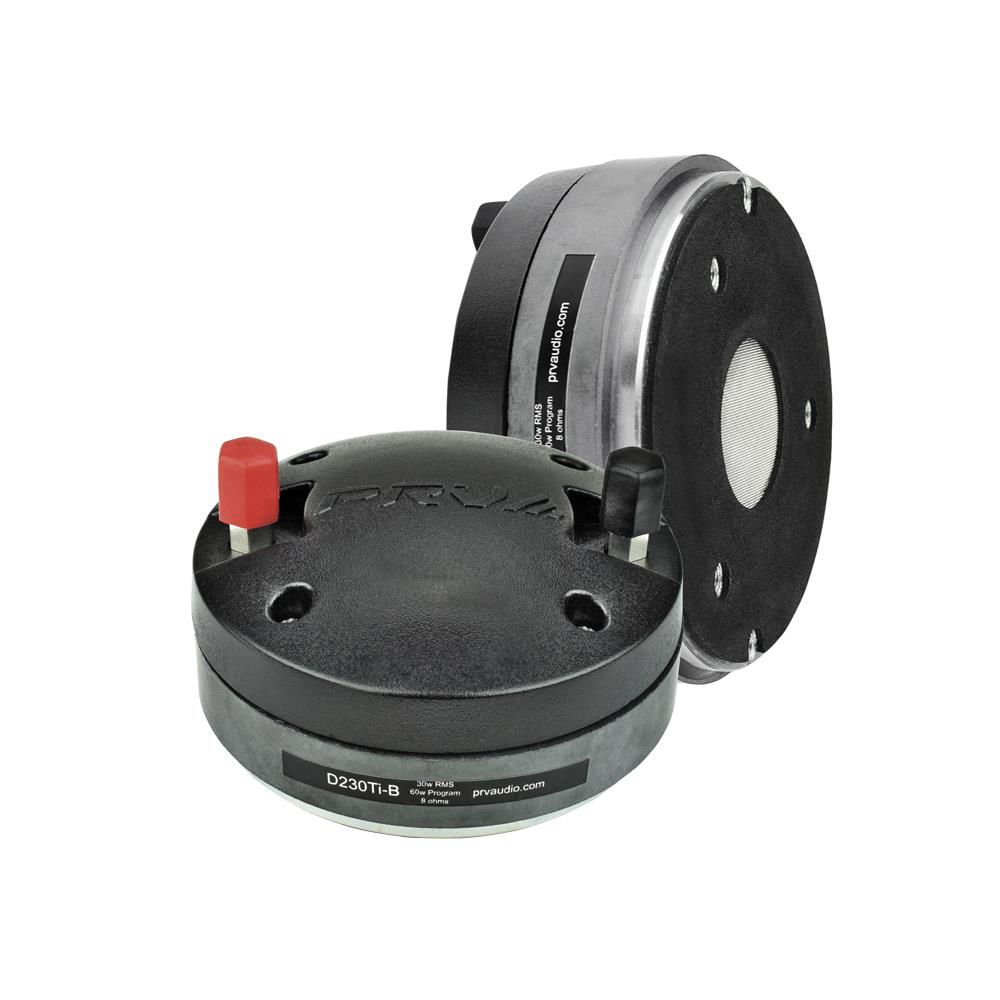

PRV D230TIB Pro Audio Titanium Compression Driver

The D230Ti-B compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 2 or 3 bolt pattern horn. The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.This is also available in both bolt-on and screw-on models ( D230T-B/D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.The D230Ti-B is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1 bolt-on design. Specifications Throat Diameter: 1-" Type: Bolt-On Nominal Impedance: 8- Rated Power Handling: 30 Watts Program Power: 60 Watts Sensitivity ( 1W/1m): 107 dB Frequency Range at -10 dB: 1,600 - 20,000 Hz Recommended Hi Pass X-Over: 2000 Hz ( 12 dB/Octave) Voice Coil Diameter: 1.4-" Magnet Material: Ferrite Diaphragm Type: Titanium Replacement Diaphragm: RPD230Ti
