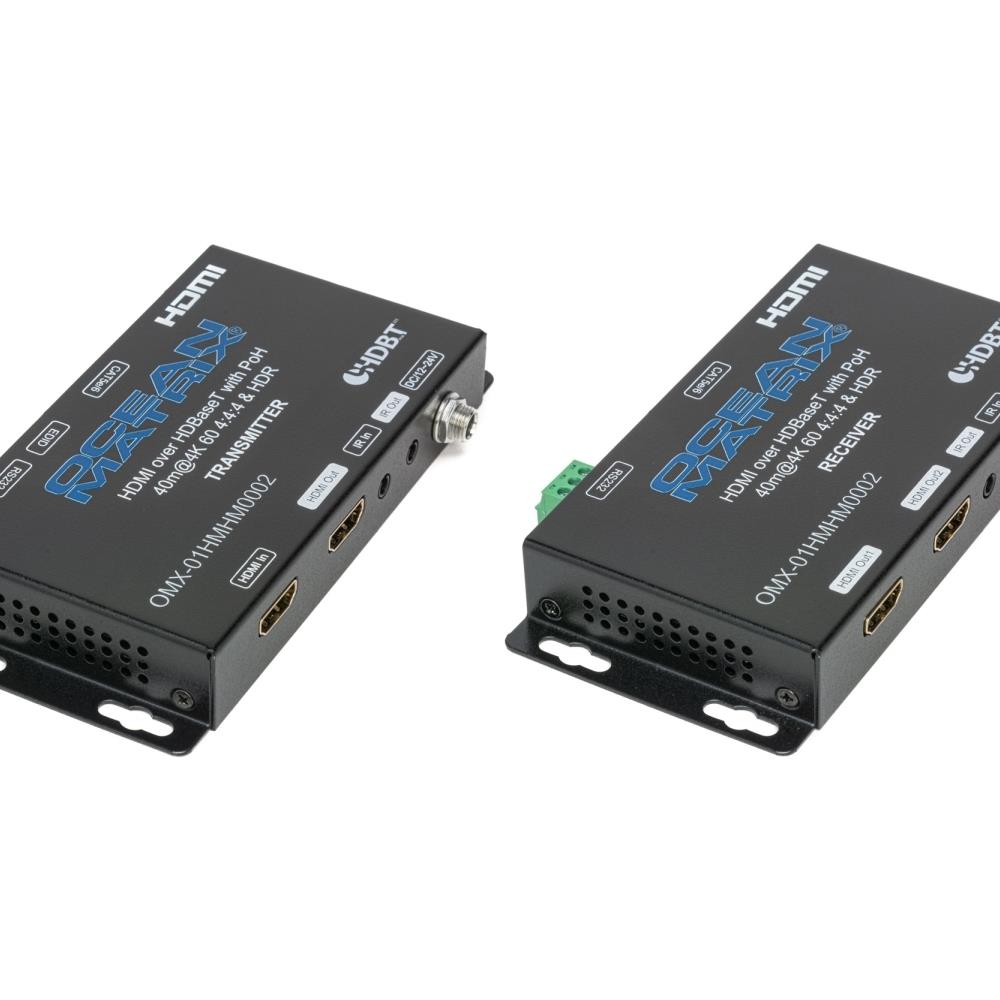

For a cost effective 4K HDMI 2.0, HDR, HDBaseT extension system that doesn't compromise on quality, specify the Ocean Matrix 01HMHM0002 in your next digital signage project. The 01HMHM0002 is built on the PoH ( Power-over-HDBaseT) standard delivering simultaneous transmission of full bandwidth 18Gbp 4k 60hz YUV 4:4:44 HD video, audio, control signals and power from device to device over Ethernet cable up to 130 feet. The 01HMHM0002 includes a looping HDMI output at Transmitter and dual ( 2) HDMI outputs at the receiver. With its PoH support, installations are a breeze as there is no need for a power supply at the receive-end of your system. The 01HMHM0002 system also delivers multiple control options including bidirectional IR Remote Control for cable boxes, signage players or Blu-ray players and Serial RS232 Control for touchscreen and scanner devices. The system also offers full audio support for DTS-HD and Dolby-HD. It is HDCP2.2/1.4 compliant and has convenient surface mount ears. Features Extends Two-Way IR and RS232 Pass Through Video Resolutions up to YUV4:4:4 Full HD support 48b/pixels, 3D and 4Kx2K 1 Looping HMDI on TX, 2 HDMI on RX Transmission Distance 1080P Up to 230 Feet, 4K up to 131 Feet Two-Way 24V PoH Rugged Black Powder-Coated Metal Enclosure CE, FCC Certified Specifications Compliance: HMDI 2.0, HDCP2.2, HDCP 1.4 Video Bandwidth: 18Gbps Video Formats: DTV/HDTV, 4K/1080P/1080i/720P( 50Hz)/576P/480P/576i/480i Input Video Signal: 0.5-1.0 volts p-p Input DDC Signal: 5 volts p-p ( TTL) Output Audio Support: DTS-HD, Dolby-HD Power Consumption: 12W Dimensions ( HxWxD): 5.5 x 2.63 x 0.8 in Weight: 1.97 lbs
For a cost effective 4K HDMI 2.0, HDR, HDBaseT extension system that doesn't compromise on quality, specify the Ocean Matrix 01HMHM0002 in your next digital signage project. The 01HMHM0002 is built on the PoH ( Power-over-HDBaseT) standard delivering
Made from Top Quality material
