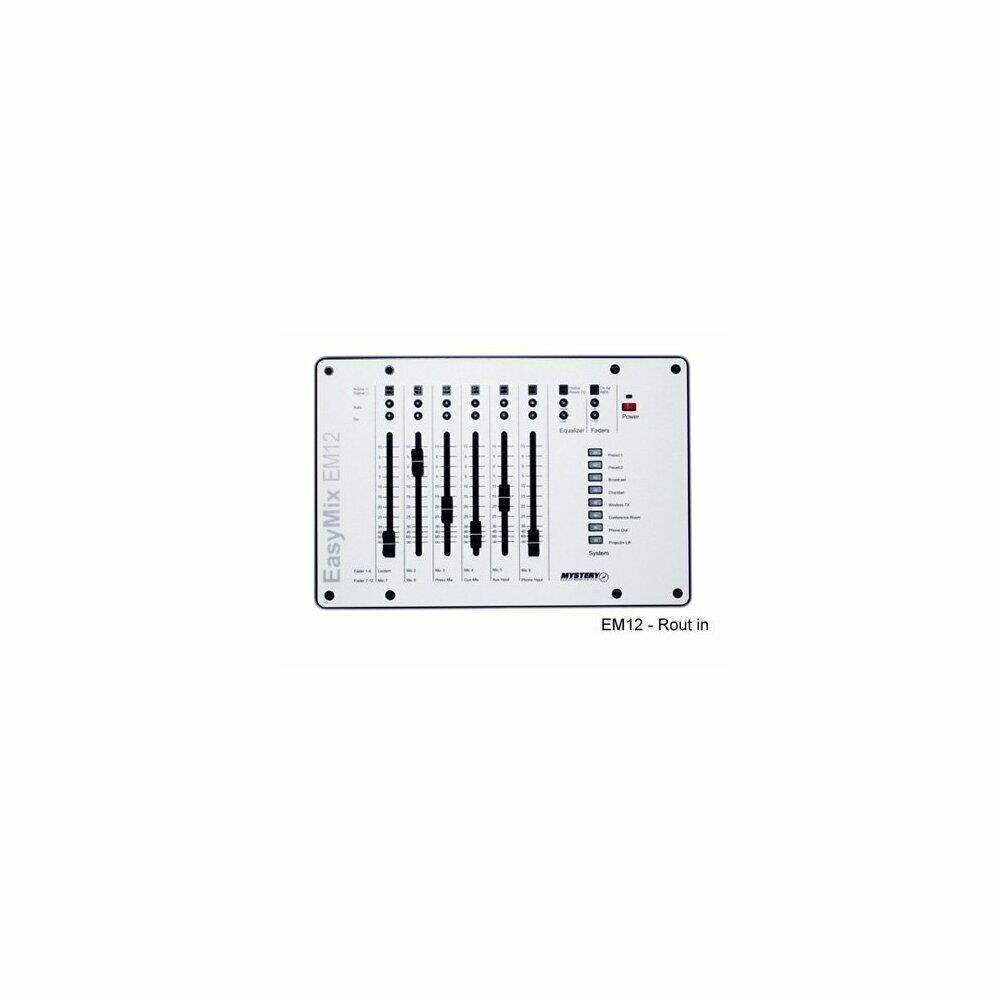

Mystery Electronics MYS-EM12-ROUT-IN Route In DSP Control Surface- 6 Physical 12 Virtual Motorized Faders

Import pre-configured templates into your DSP configuration/design software and have your EasyMix EM12 running in minutes, or build your interface from scratch for a fully ized solution. Equipped with six physical motorized fader channels, two programmable backlit push buttons and two status indicating LED-s per channel located above each fader. Additional programmable bank selection push buttons and status LED-s provide up to 24 programmable virtual fader channel positions. Faders can also be programmed to function as high and low frequency EQ controls. Each fader channel comes equipped with 1 Full 100 mm motorized fader, 2 Programmable back-lit push buttons and 2 Status indicating LED-s. Each channel-s push buttons are programmed to provide Auto Mixer on/off and Channel on/off control. Channel LED-s are programmed to indicate status of Auto Mixer highest gain and Signal presence. The Fader buttons are pre-programmed to allow bank selection of faders 1 - 6 or 7 - 12. The EQ buttons are pre-programmed for High gain level and Low gain level control of a DSP Equalization Filter. All program choices can be fully ized to your application requirements. The power indicator LED can also be modified via internal jumper to accept 5, 12 and 24 VDC. Features Biamp, bss, qsc, rane, and symetrix dsp's supported Motorized faders and backlit led push button switches Faders, buttons and led's can be ized to link to most dsp functions Easy access to most system functions Desktop, rackmount, rout in inlaid configurations al solid oak console-style wrapper and pew back wrapper Specifications DSP compatibility: Biamp Tesira, BSS Soundweb London HiQnet Audio Architect required, Q-SYS, Rane Halogen and Symetrix SymNet Symetrix Jupiter Software required: none - built-in web server for access by browser Faders: 100 mm motorized, field replaceable USB: Firmware updates and future expansion, USB drive supplied Power supply: included input 120VAC 0.
