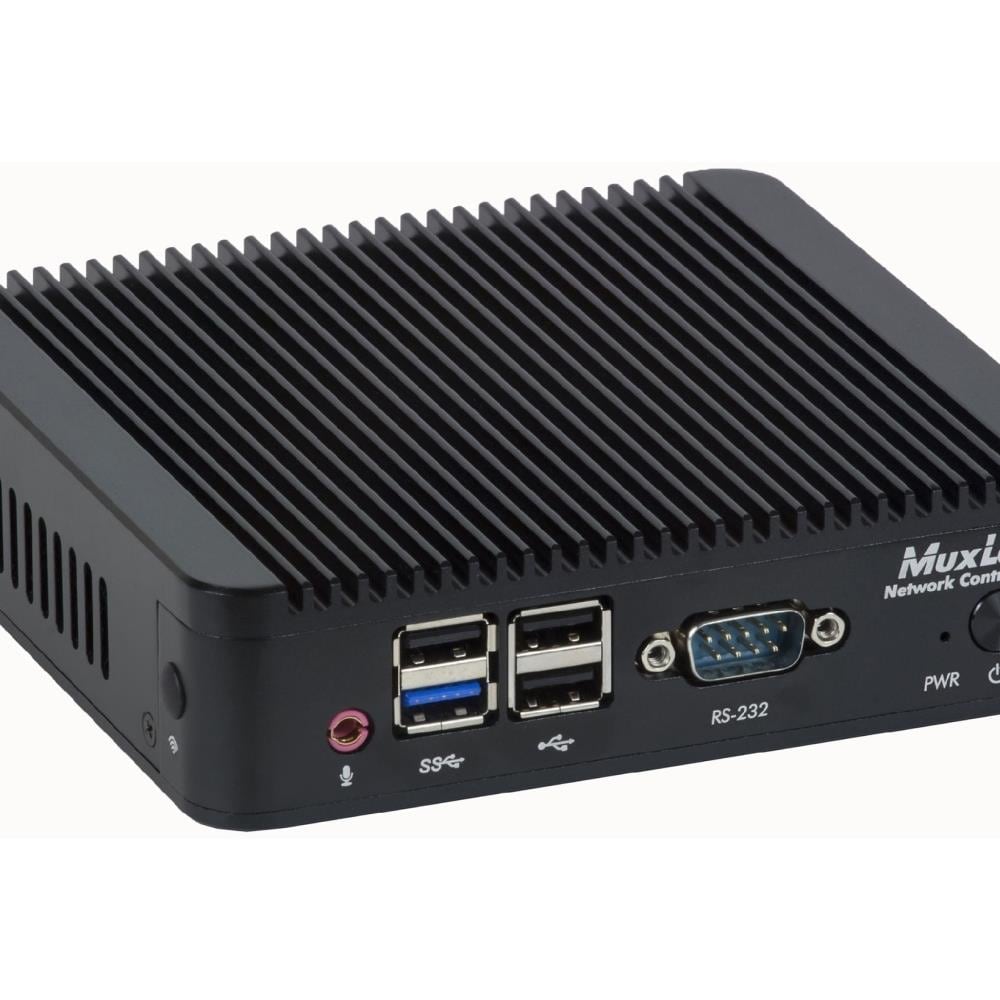

MuxLab MUX-500812 Prodigital Network Controller

The MuxLab ProDigital Network Controller ( 500812) is a Linuxbased PC that allows users to control hub-installed MuxLab products via an Ethernet Web interface. When installed on a local area network ( LAN), the MuxLab Network Controller will scan the LAN for connected MuxLab AV over IP products allowing the user to auto-discover, configure and control the connectivity of these products through an Ethernet Web interface. The Controller may also be managed by MuxLab's MuxControl App and the 500816-IP 8 Button IP PoE Control Panel. The unit may also be used to manage firmware upgrades of connected MuxLab devices. An Application Program Interface ( API) is available supporting a number of third party partner control applications running on smartphones and tables. Features Manages AV over IP device configuration and connectivity Centralized control of MuxLab AV over IP devices Managed via Web Interface Supports connectivity presets May be managed by MuxControl App and 500816-IP 8 Button IP PoE Control Panel Centralized management of AV over IP device firmware updates Supports an API for Third Party App integration Serves as a base platform to develop automation control applications Peripherals: USB 2.0 ports ( 3x) SS USB 3.0 port ( 1x) Network gigabit interface ( 2x) VGA Video out port ( 1x) HDMI Video out port ( 1x) Audio in via 3.5mm port ( 1x) Audio out via 3.5mm port ( 1x) RS232 port ( 1x) Specifications CPU: Intel Celeron J1800 Processor, 2.41GHz 4 cores Memory: 2GB DDR3 Display: Integrated Intel HD Graphics, 1x HDMI and 1x VGA Keyboard and Mouse: USB keyboard and mouse ( not required and not included) Operating System: Ubuntu 18.04 LTS Operating Temperature: 32 degrees to 122 degrees F ( 0 degrees to 50 degrees C) Storage Temperature: -4 degrees to 176 degrees F ( -20 degrees to 80 degrees C) Humidity: 10 to 90 ( non-condensing) Dimension: 5.24 x 5.00 x 1.38-" ( 133 x 127 x 35mm) Weight: 1.5 lbs
