MuxLab MUX-500773-TX 4K HDMI and VGA Over IP Wall Plate with PoE

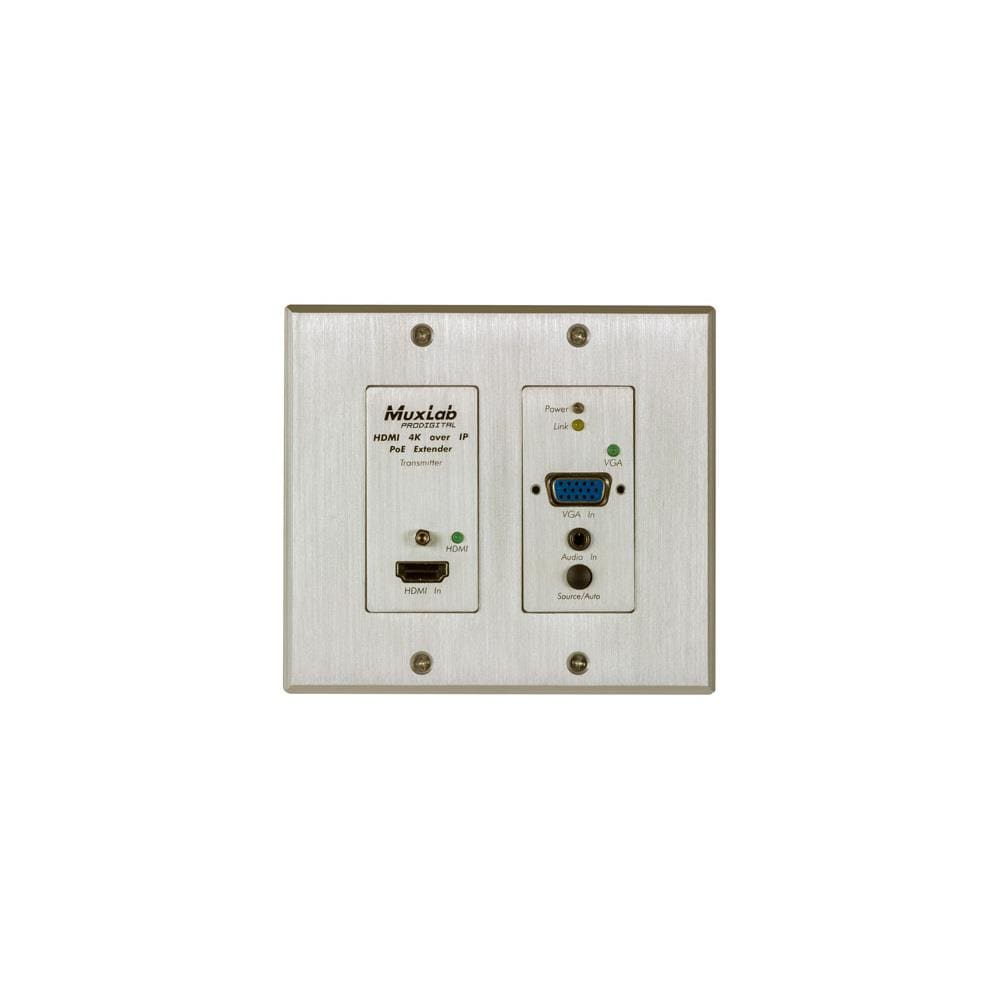

The MuxLab 500773-TX HDMI/VGA over IP PoE Wall Plate Transmitter, UHD-4K is a two-gang wall plate transmitter which provides a convenient interface for HDMI and VGA input sources. It allows HDMI and VGA equipment to be extended up to 330ft ( 100m) from an Ethernet Switch via one ( 1) Cat5e/6 cable. The unit supports one ( 1) HDMI-In, one ( 1) VGA-In and one 2CH Audio-In, and supports resolutions up to 4K ( 3840x2160) 30Hz for HDMI and 1920x1200 60Hz for VGA. The input selection between HDMI and VGA inputs may be locally or remotely selected, and supports auto and manual switching modes with LED indicators. This device may be used with the MuxLab 500758-RX and 500759-RX over IP Receivers, all managed via the 500811 Network Controller. The device supports PoE ( PD) for easy installation. Features 4K HDMI and VGA over IP Wall Plate with PoE Selectable HDMI and VGA inputs HDMI 2.0b up to 4K 30Hz and 4K 60Hz VGA 1920x1200 60Hz, with 2CH Audio-In HDCP 2.2 compliant Remotely managed over IP and locally managed via push button Auto and manual switching modes, with LED indicators Compatible with 500758-RX and 500759-RX over IP Receivers PoE powered Managed via Pro Digital Network Controller , MuxLab Control Smartphone and Tablet App and 3rd Party Control Apps Environment: HDMI 2.0b Devices: TVs, monitors, projectors supporting HDMI Signal Protocal/Standard: HDMI 2.0b and HDCP 2.2 Video Resolution HDMI: Up to 4K 30Hz and 4K 60Hz VGA: Up to 1920 x 1200 60Hz Video Bandwidth: 300MHz Audio Bandwidth: 20Hz to 20KHz Network Bandwidth: 500Mbps , up to 800Mbps Network Requirement: 1G Network via PoE Ethernet Switch supporting IGMP and Jumbo Frames Network Protocol: Multicast Compression: JPEG2000 Latency: 16.7ms typ. , up to 33.4ms max PoE: IEEE 802.3af Power Consumption: 3W Temperature Operating: 0to 40 Storage: -20to 85 Humidity: Up to 95 non-condensing Wall Plate Size: 2 Gang Dimensions: 5.00-" x 4.53-" x 1.65-" Compliance Regulatory: FCC,
