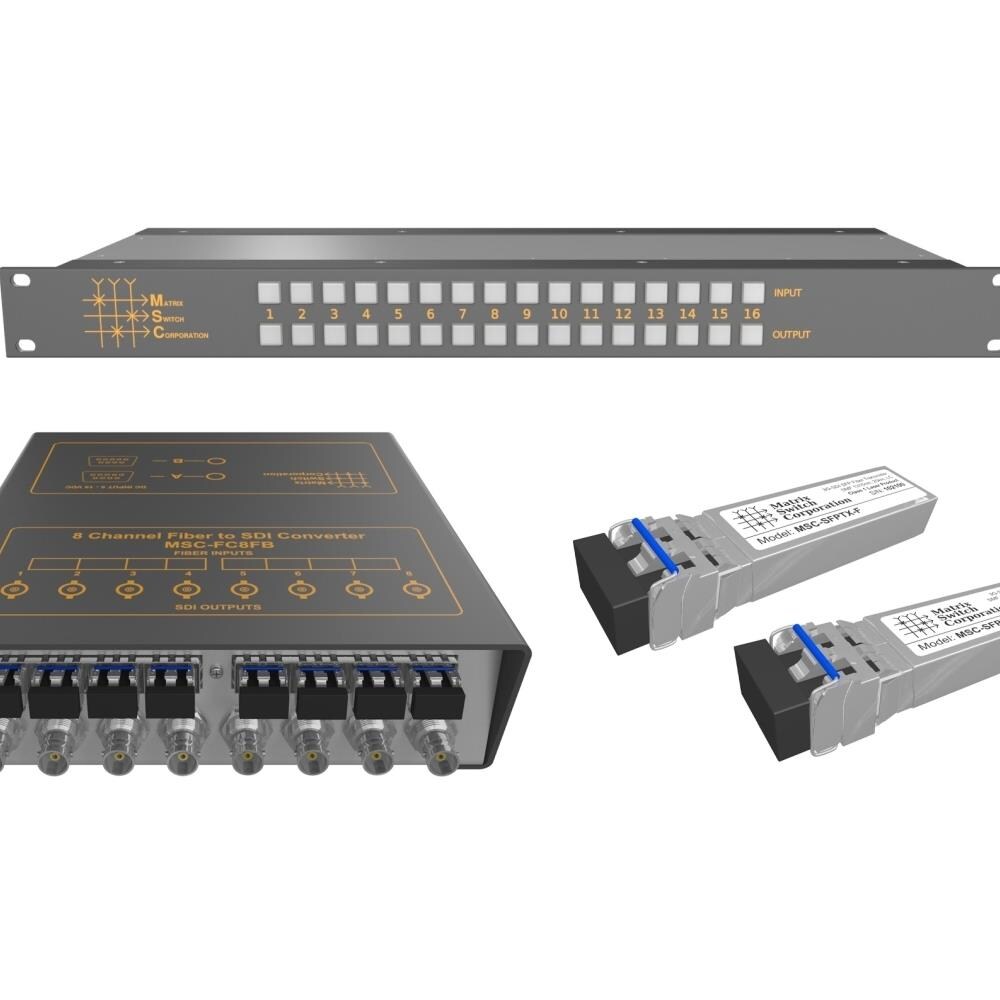

Matrix Switch Corporation MSC-SFL-112 fiber solutions are complete systems. These systems take SDI copper BNC inputs and then convert them using SMPTE MSA SFP plug in's, to single mode optical fiber for distances of up to 20KM and back to SDI BNC copper video outputs. The Model MSC-SFL-112 System provides sixteen 3G-SDI channels like the Model MSC-SFL-111 System, except the sixteen channel SDI BNC to fiber transmitter is a powerful modular 1RU routing switcher, with RS232, RS485, Ethernet, web page interface, and several front panel options, including simple status panel ( default), Push Button XY Control, or multi-function 1/4 VGA Display, thumb wheel and keypad local control panel. The fiber receive side consists of two compact passive devices as used with Model MSC-SFL-107 Systems. Features Re-clocks standard SDI rates 3G ( 2.97 Gbit/s), HD ( 1.485 Gbit/s), and SD ( 270 Mbit/s) Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s Passes SDI embedded audio and ancillary data Complies with all relevant FCC, U/L, CE, and RoHS requirements Specifications Outputs: 16 Enclosure Type: 1RU Made in: USA MTBF: 50,000+ Hours MTTR: SDI Inputs Connector Type: BNC Data Rates: 19 Mbit/s through 3.0 Gbit/s Input Return Loss: 15dB HD, 12dB 3G Input Impedance: 75 Ohms +/- 1 Input Level: 800 mV P-P +/- 20 Cable Equalization: 400m SD, 140m HD, 120m 3G ( 1694A coax)SDI Outputs Connector Type: BNC Data Rates: 19 Mbit/s through 3.0 Gbit/s Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s Dimension: 19-" x 1.88-" x 6-" Weight: 6.6 lbs
Matrix Switch Corporation MSC-SFL-112 fiber solutions are complete systems. These systems take SDI copper BNC inputs and then convert them using SMPTE MSA SFP plug in's, to single mode optical fiber for distances of up to 20KM and back to SDI BNC copper
