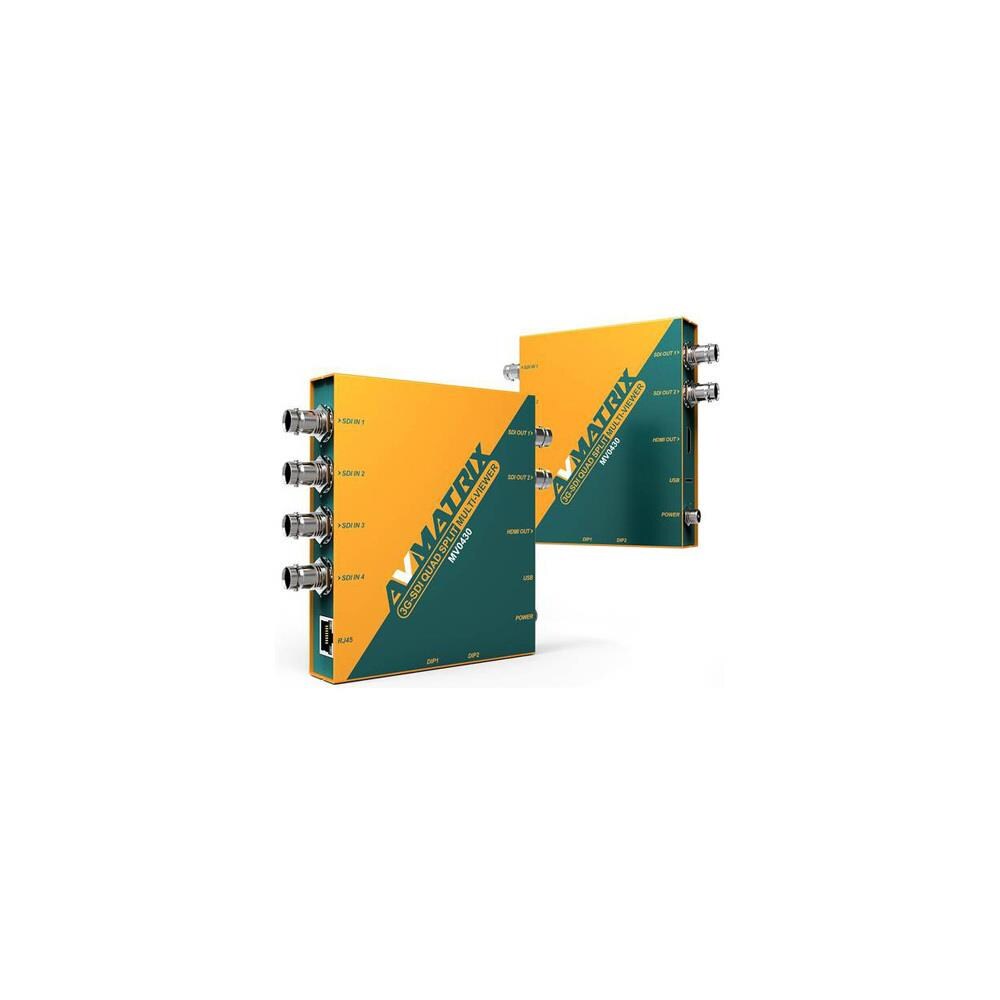

Lilliput Electronics LIL-MV0430 AVMATRIX 4 Channel 3G-SDI Quad Split Multiviewer

The Lilliput AVMATRIX MV0430 is a 4 Channel 3G-SDI Quad Split Multiviewer designed with the user in mind. The MV0430 has four SD/HD/3G-SDI inputs with auto adaptive detection plus 2 SD/HD/3G-SDI outputs and a single HDMI output with a total of 11 user defined output formats from 720p25 to 1080p60. Field adaptable the MV0430 provides you with 16 group pre-set layouts in full screen or multi-view mode including the most frequently used choices like quad-split, full screen, triple windows, PIP and PoP. More user friendly features abound like the ability to set a 13 character UMD overlay in each individual window and then adjust its size and position with ease. The same holds true for the size and position of the 2 channel Audio Meter, that's user defined as wellFunctions and settings are finger adjustable using the easy control dip switches on the units side or can be remotely set by PC via the LAN port. The LAN port also makes firmware updates a snap, there's a USB port for keyboard control, a threaded locking power connector and a detachable bracket for wall mount. Features 4xSD/HD/3G-SDI inputs with auto detection 2xSD/HD/3G-SDI and 1XHDMI outputs for multi-view 16 preset layouts both full screen and multi-view mode Includes SC2031 x1 Bracket x2 Power Adapter x1 Micro USB Cable x1 Specifications Operating Temperature: -20C - 60C ( HDMI output for 0C-60C) Storage Temperature: -30C - 70C Sdi Video Input: SD/HD/3G-SDI( 75 O) x4 Sdi Video Output: SD/HD/3G-SDI( 75 O) x2
